S3.55 Assembly and Maintenance Guide
page 14
1 2 3 4 5 6

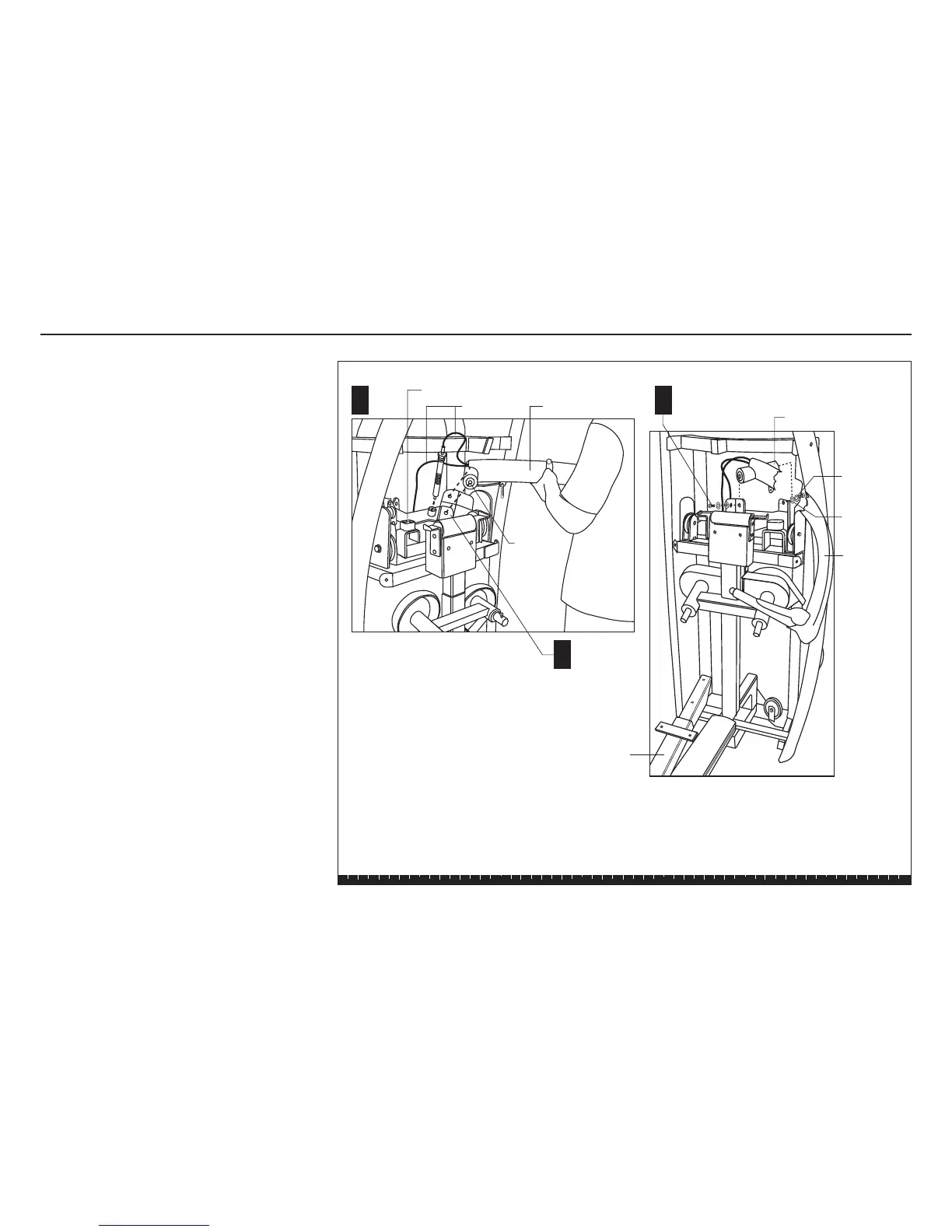

Step 6. Attach the Left Press Arm
A
Press
Arm
Bracket
6. Attach the Left Press Arm
Important: For ease of assembly, lower the Seat
Back Frame by pressing the Release Bar on the
Left Seat Handlebar.
A. Place the Cables protruding from the end of the
Left Press Arm over the Press Arm Flange.
B. Carefully lower the Left Press Arm into the Press
Arm Bracket while keeping the Axle Tube level.
C. Secure the Left Press Arm using
two 1-inch bolts (blue patch)
two lockwashers
two washers
Wrench tighten.
Important: In Step C, slide a lockwasher on the
bolt. Follow it with a flat washer.
Note: During both assembly and disassembly, you will
need to insert a metric hex key into the access hole at
the top of the Axle Tube to remove the two ¾-inch
bolts. The metric hex key keeps the fasteners from
spinning.
2 - 1" bolts
2 - lockwashers
2 - washers
C
Left
Press
Arm
Axle Tube
Press Arm Flange
Left Press Arm
B
Cables
Axle Tube
Seat Back
Frame
Lockwasher
Flat Washer

Precor S3.55 Specifications

Weight and Dimensions

length	86 inch (218 cm)
width	68 inch (173 cm)
height	82 inch (203 cm)
shipping weight	812 lb (370 kg)
