S3.55 Assembly and Maintenance Guide
page 36
1 2 3 4 5 6
23. Install the Weight Stack
Cable
The Weight Stack Cable system includes six 4½-inch
pulleys and the associated fasteners.
Important: Before performing the following steps,
unwrap Cable 46006-101 and Cable 46002-101.
Remove any knots or twists. Remove the two locknuts
from the threaded end of Cable 46006-101 and set
them aside.
A. Feed the Cable Eye of Cable 46002-101 through
the Mounting Bracket at the base of the Weight
Stack Side Beam.
Important: Make sure the cable slides over the
Stop Bar at the base of the Pulley Bracket.
B. Feed the Cable up along the inside of the beam.
Let the eyelet rest on the Weight Stack.
C. Slide a Pulley Bracket into the opening at the base
of the Weight Stack Side Beam.
Note: The open end of the Pulley Bracket faces the
floor with the half round toward the front of the unit.
D. Place a 4½-inch pulley inside the Pulley Bracket
and secure using
one 2¼-inch bolt
two washers
one locknut
Wrench tighten.
E. Feed the U Bracket on the end of Cable 46006-101
through the opening on the Weight Stack Top
Frame.
F. Connect Cable 46002-101 to Cable 46006-101
by removing the Clevis Pin and E-clip from the
U Bracket, inserting the Cable Eye, and replacing
the Clevis Pin and E-clip.

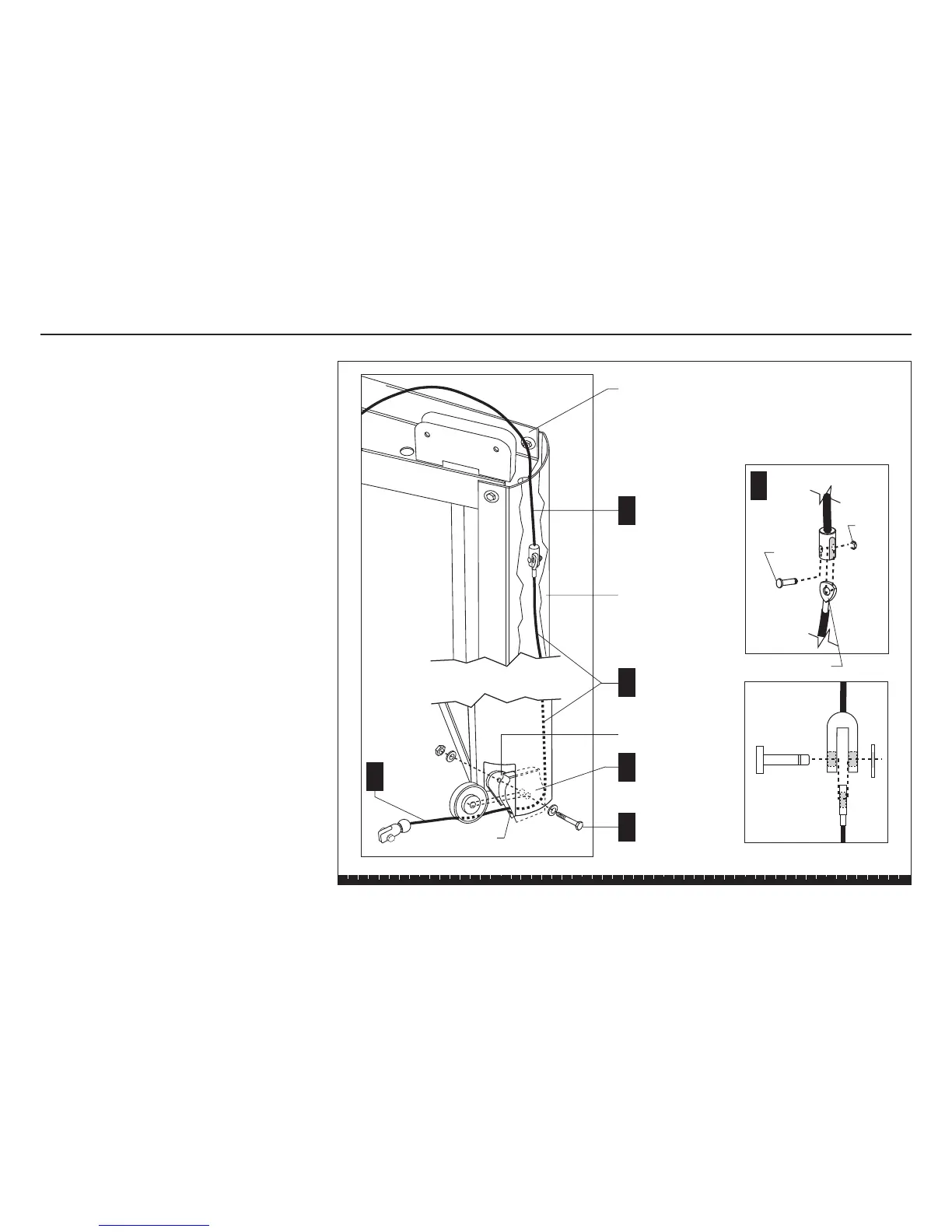

Step 23. Install the Weight Stack Cable
C
B
Cable 46002-101
D
1 - 4½” pulley
1 - 2¼" bolt
2 - washers
1 - locknut
Pulley Bracket
E
A
Cable 46002-101
Mounting Bracket
Cable 46006-101
F
E-clip
Clevis
Pin
This view is not to scale.
Cable Eye
Weight Stack Top Frame
Weight Stack Side Beam
Stop Bar
