S3.55 Assembly and Maintenance Guide
page 37
1 2 3 4 5 6
G. Attach two 4½-inch pulleys to the Weight Stack Top
Frame using
two 2-inch bolts
two cable retainers
four washers
two locknuts
Finger tighten.
H. Place the Cable over the pulleys, but under the
cable retainers.
I. Loop the Cable under one 4½-inch pulley and
attach it to the Top Cap Weight using
one 2-inch bolt
two washers
one locknut
Finger tighten.
J. Attach two 4½-inch pulleys to the Weight Stack Top
Frame using
two 2-inch bolts
two cable retainers
four washers
two locknuts
K. Feed the Cable over the pulleys, but under the
cable retainers. Finger tighten.
Note: Refer to callout “L” for proper placement of
the cable retainers.
L. Ensure that the Cable is straight and properly
aligned. Wrench tighten all five fasteners.

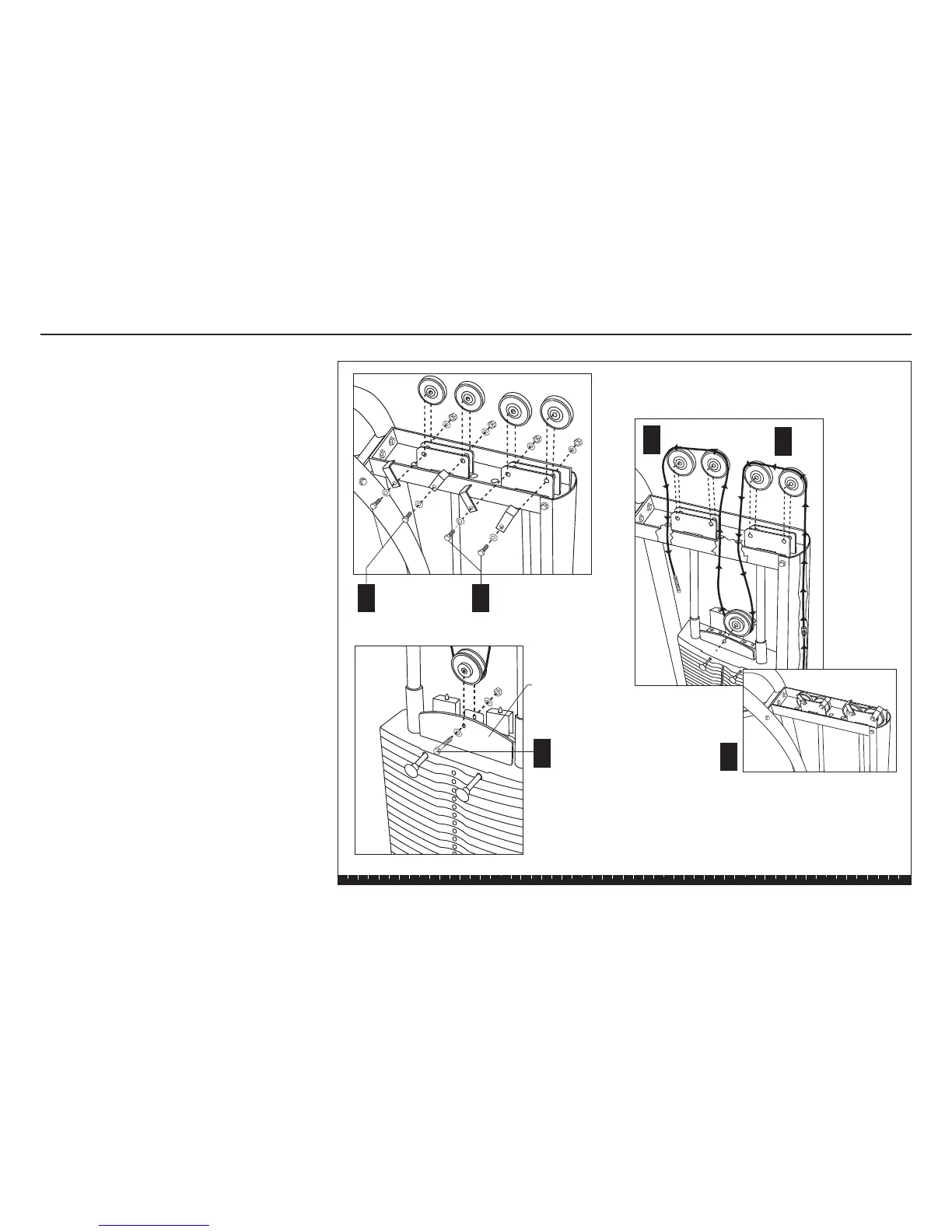

Step 23. Install the Weight Stack Cable, Continued
2 - 4½" pulleys
2 - 2" bolts
2 - cable retainers
4 - washers
2 - locknuts
G
1 - 4½" pulley
1 - 2" bolt
2 - washers
1 - locknut
I
H
Top Cap Weight
2 - 4½" pulleys
2 - 2" bolts
2 - cable retainers
4 - washers
2 - locknuts
J
K
L

Precor S3.55 Specifications

Weight and Dimensions

length	86 inch (218 cm)
width	68 inch (173 cm)
height	82 inch (203 cm)
shipping weight	812 lb (370 kg)
