Precor S3.55 User Manual

S3.55 Assembly and Maintenance Guide
page 32
1 2 3 4 5 6
20. Assemble the Weight Stack
Top Frame and Attach the Side
Beam
A. With the Rubber Grommets facing down, place the
Weight Stack Top Frame on the Guide Rods.
B. Secure the Weight Stack Top Frame to the Main
Frame using
two 3-inch bolts
four washers
two locknuts
Finger tighten.
C. Attach the Weight Stack Side Beam to the Top
Frame using
two 1-inch bolts
four washers
two locknuts
Finger tighten.
D. Attach the Weight Stack Side Beam to the Weight
Stack Base using
two ¾-inch bolts (blue patch)
two washers
Wrench tighten the fasteners.

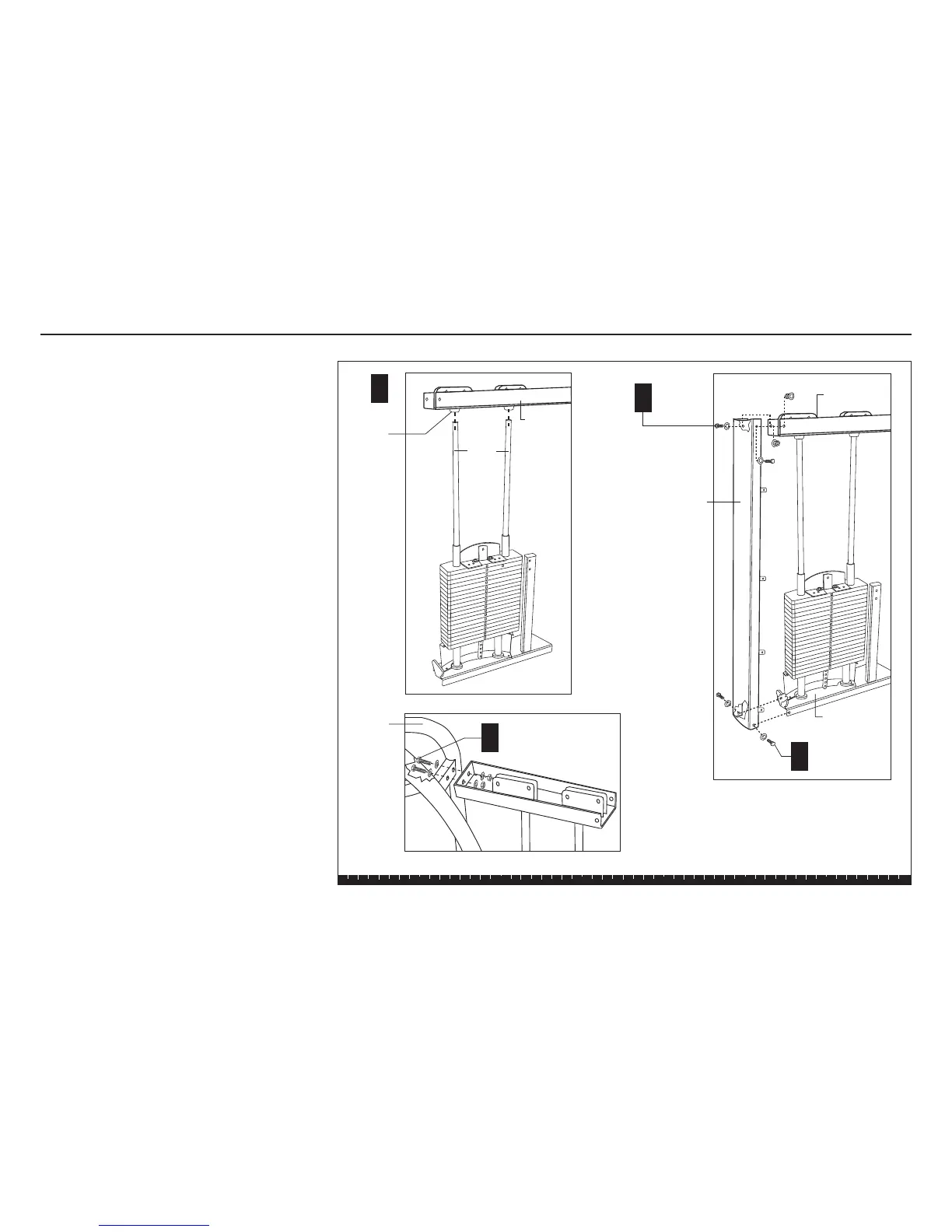

Step 20. Assemble the Weight Stack Top Frame and Attach the Side Beam
Rubber
Grommets
A
Weight
Stack Top
Frame
Guide
Rods
B
2 - 3" bolts
4 - washers
2 - locknuts
C
2 - 1" bolts
4 - washers
2 - locknuts
D
2 - ¾" bolts
2 - washers
Weight Stack
Side Beam
Top Frame
Weight
Stack Base
Main
Frame

Precor S3.55 Specifications

Weight and Dimensions

length	86 inch (218 cm)
width	68 inch (173 cm)
height	82 inch (203 cm)
shipping weight	812 lb (370 kg)
