14. Attach the Press Arm
Pulleys to Main Frame
Important: The two 4½-inch pulleys used in the
following steps are thicker and heavier than the
standard 4½-inch pulleys. Install the heavy-duty
pulleys in Step A. Perform Steps A and B on one
side of the unit before proceeding with the same
steps for the opposite side.
A. Attach one heavy-duty 4½-inch pulley to the Main
Frame using
one 1½-inch bolt (blue patch)
one washer
one cable retainer
Wrench tighten.
B. Feed Cable 46008-101 over pulley and thread it
into a Single Pulley Block.
C. Perform steps A and B on the opposite side.

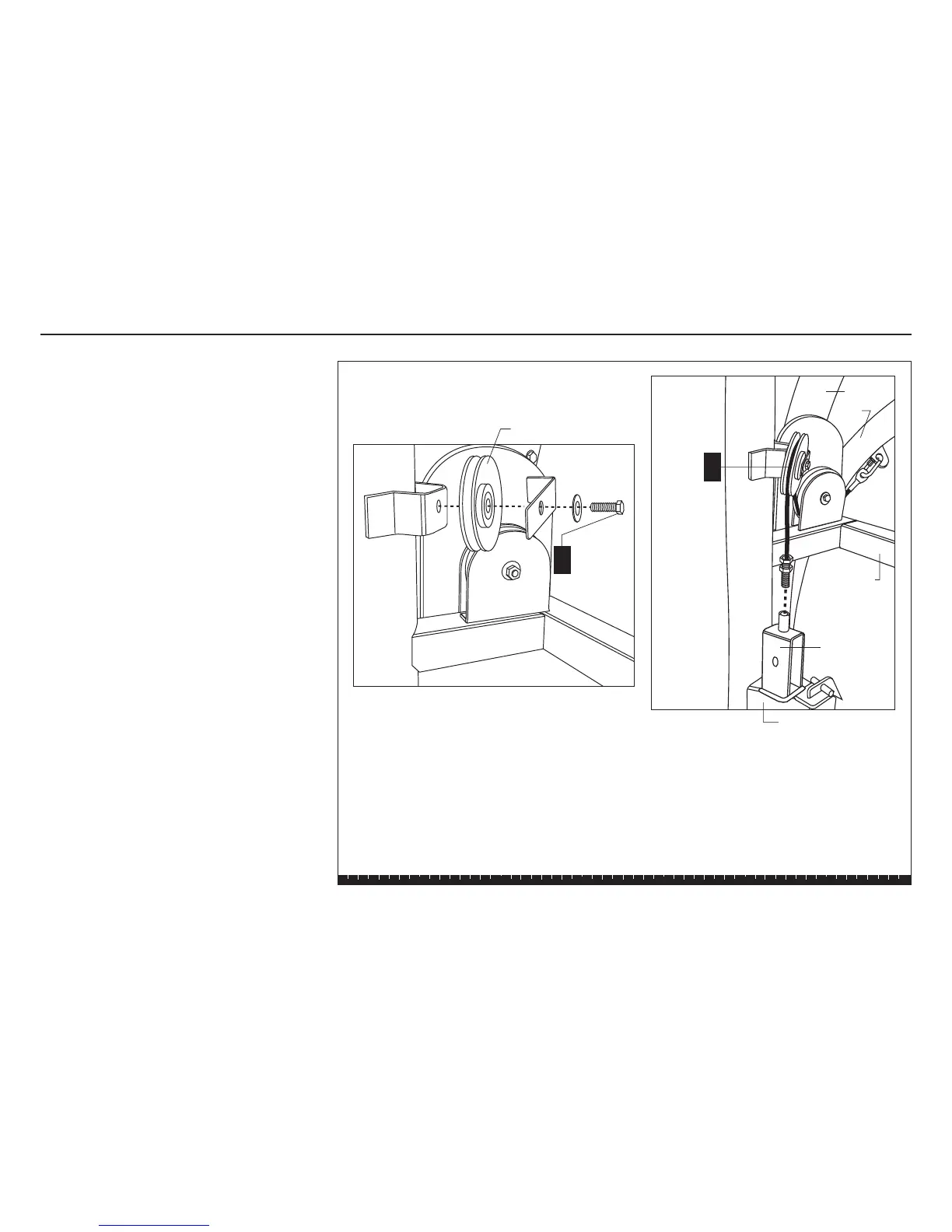

Step 14. Attach the Press Arm Pulleys to Main Frame
A
1 - 4½" pulley
1 - 1½" bolt
1 - washer
1 - cable
retainer
B
Side Rail
Main
Frame
Press
Arm
Middle Cross
Brace
Lower Crossbar
Single Pulley
Block
Middle Cross Brace
Cable
46008-101
Main
Frame
Heavy-duty Pulley

Precor S3.55 Specifications

Weight and Dimensions

length	86 inch (218 cm)
width	68 inch (173 cm)
height	82 inch (203 cm)
shipping weight	812 lb (370 kg)
