Precor S3.55 User Manual

S3.55 Assembly and Maintenance Guide
page 23
1 2 3 4 5 6
15. Feed the Row Arm Cable
Note: You can determine the left and right side of
the unit by facing the Leg Station with your back to
the Main Frame.
A. Feed the U Bracket on Cable 46007-102 over the
top of a 4½-inch pulley.
B. Slide the pulley inside the Front Bracket of the
Upper Frame and attach it using
one 2-inch bolt
two washers
one locknut
Finger tighten.
C. Feed the opposite end containing the Cable Ball
and U Bracket over one 4½-inch pulley and down
through the hole on the right side of the Main
Frame.
D. Attach the pulley to the Rear Stay Bracket using
one cable retainer
one 2-inch bolt
two washers
one locknut
Finger tighten.

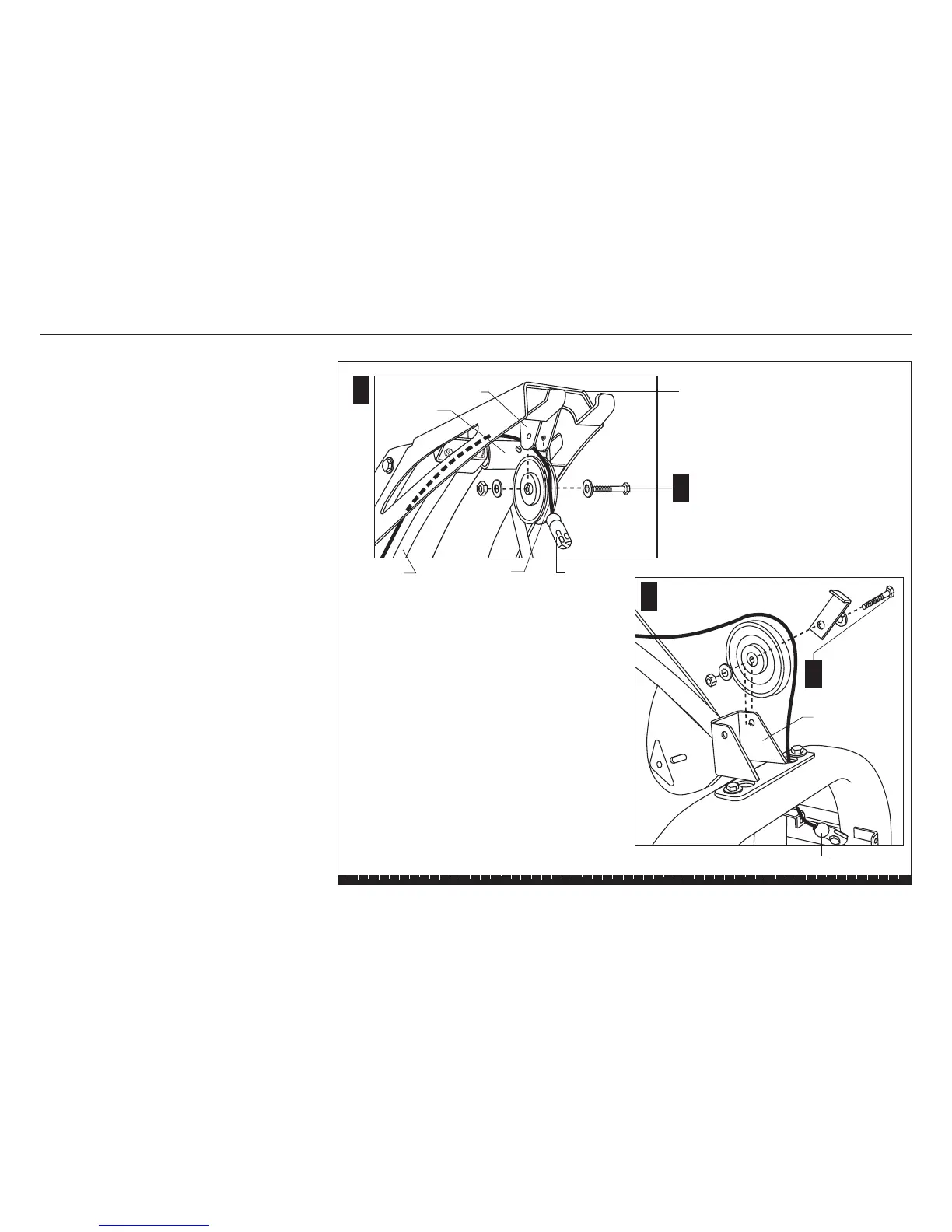

Step 15. Feed the Row Arm Cable
B
1 - 4½" pulley
1 - 2" bolt
2 - washers
1 - locknut
Front Bracket
D
1 - 4½" pulley
1 - cable retainer
1 - 2" bolt
2 - washers
1 - locknut
Rear Stay Bracket
A
C
Upper Frame
U BracketCable 46007-102
Cable Ball
Center
Support
Row Arm

Precor S3.55 Specifications

Weight and Dimensions

length	86 inch (218 cm)
width	68 inch (173 cm)
height	82 inch (203 cm)
shipping weight	812 lb (370 kg)
