Precor S3.55 User Manual

S3.55 Assembly and Maintenance Guide
page 24
1 2 3 4 5 6
E. Feed the Cable around one 4½-inch pulley. Attach
the pulley to one Double Pulley Block using
one 2-inch bolt
two washers
one locknut
Finger tighten.
F. Attach a second 4½-inch pulley to the base of the
Double Pulley Block using
one 2-inch bolt
two washers
one locknut
Finger tighten.
G. Place the Double Pulley Block onto its Docking
Station and insert the Cable Retaining Bolt using
one 2-inch bolt
two washers
one locknut
H. Feed the Cable Ball and U Bracket up through the
Mounting Hole on the left side of the Main Frame.
I. Feed the Cable over one 4½-inch pulley. Attach the
pulley to the Rear Stay Bracket using
one cable retainer
one 2-inch bolt
two washers
one locknut
J. Let the Cable Ball rest on the pulley. Wrench
tighten all pulley fasteners.

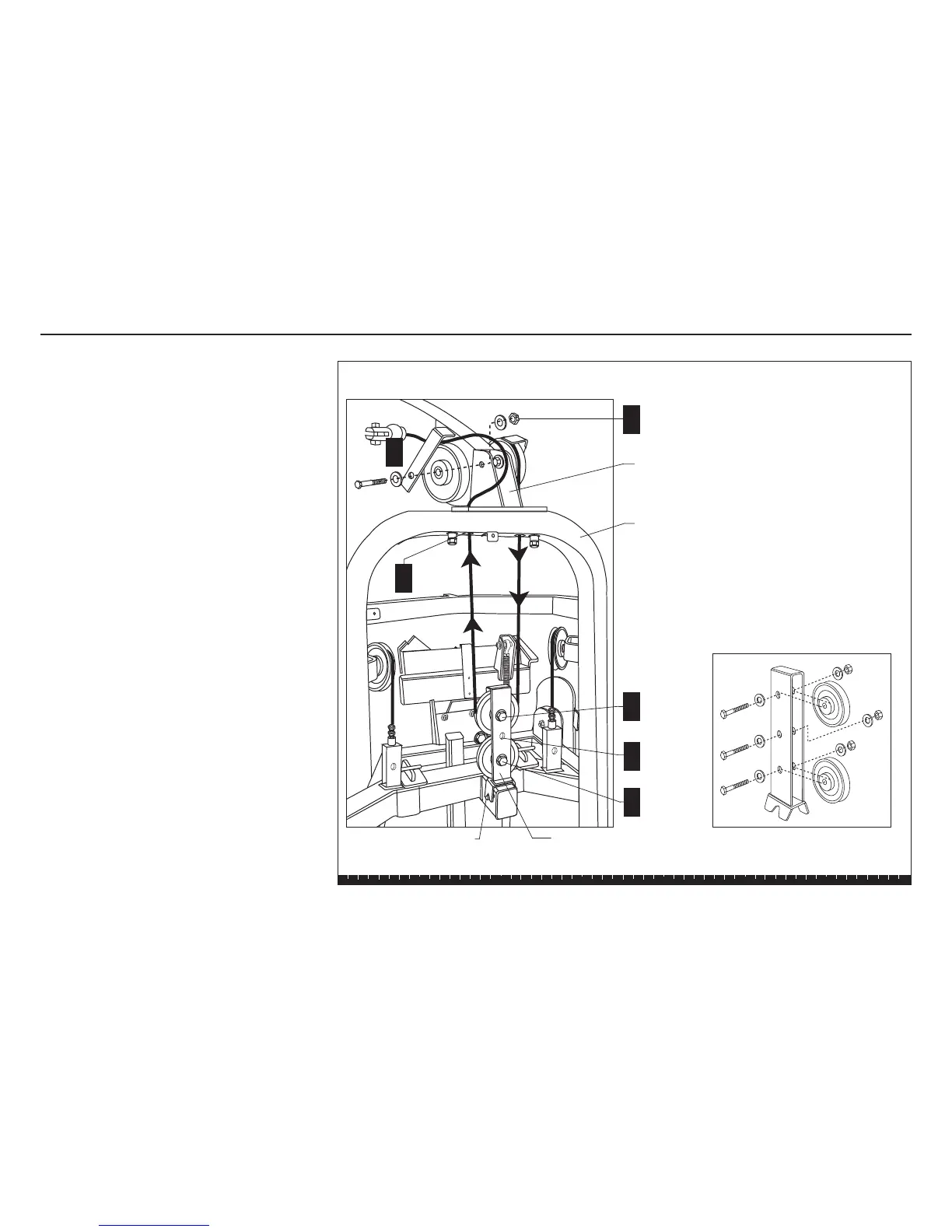

Step 15. Feed the Row Arm Cable, Continued
Double Pulley
Block
E
1 - 4½" pulley
1 - 2" bolt
2 - washers
1 - locknut
F
1 - 4½" pulley
1 - 2" bolt
2 - washers
1 - locknut
H
I
1 - 2" bolt
2 - washers
1 - cable retainer
1 - locknut
J
Rear Stay Bracket
G
1 - 2" bolt
2 - washers
1 - locknut
Main Frame
Docking
Station
Mounting
Hole
Double Pulley Block assembly, shown
without cable.

Precor S3.55 Specifications

Weight and Dimensions

length	86 inch (218 cm)
width	68 inch (173 cm)
height	82 inch (203 cm)
shipping weight	812 lb (370 kg)
