S3.55 Assembly and Maintenance Guide
page 51
1 2 3 4 5 6
33. Install the Roller Pads and
Attach the Accessories
A. Pull the Release Handle and position the Leg
Extension for easier access. Slide the Roller Pad
on the Leg Extension and secure it using
one ¾-inch buttonhead bolt (blue patch)
B. Slide a Roller Pad on the Leg Hold Down and
secure it using
one ¾-inch buttonhead bolt (blue patch)
Wrench tighten.
C. Attach the Spring Clip to the Lat Bar.
D. Clip the Lat Bar to Cable 46007-102 at the end of
the Upper Frame. Rest the Lat Bar on the Lat Bar
Holder.
A
1 - ¾" buttonhead bolt
C
Spring Clip
D

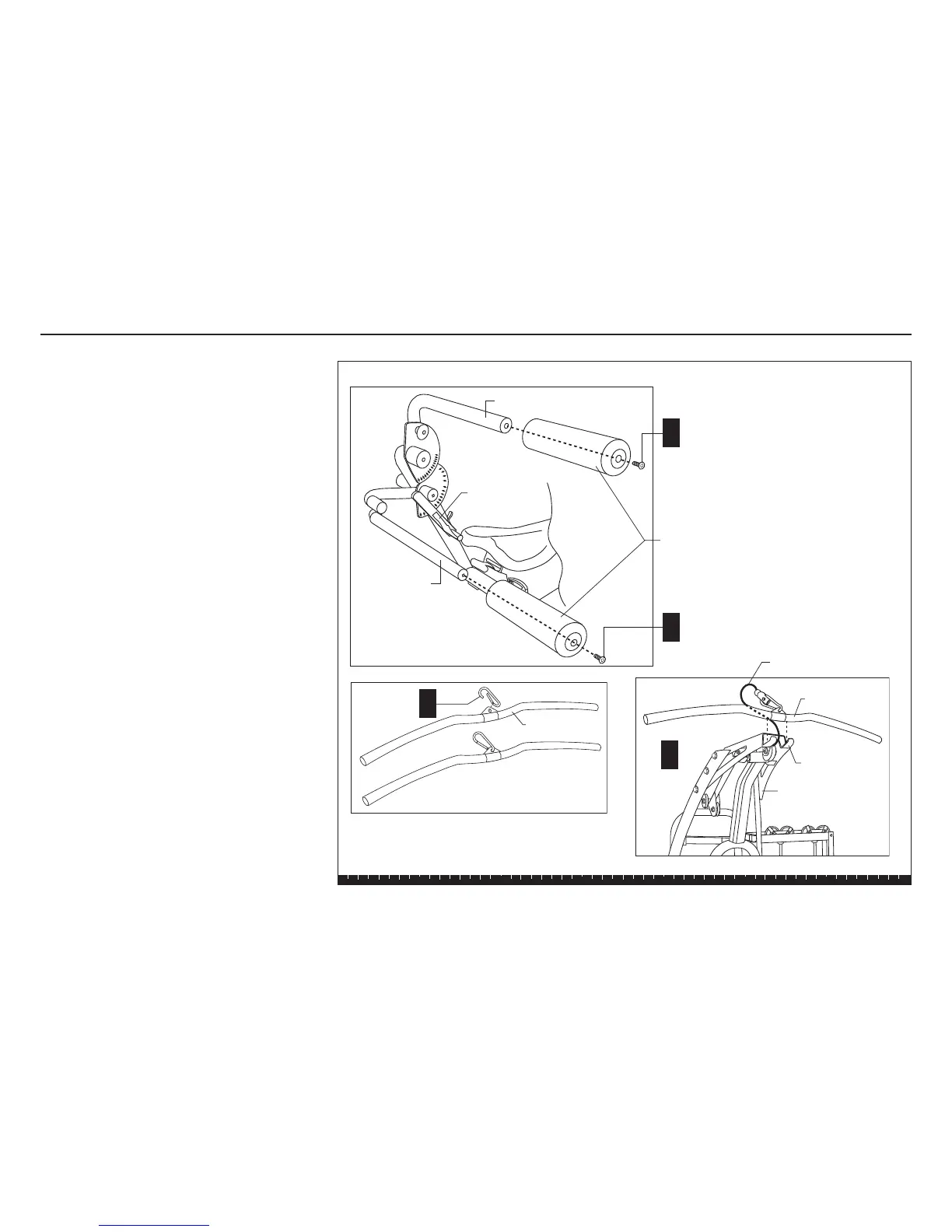

Step 33. Install the Roller Pads and Attach the Accessories
Leg Extension
B
1 - ¾" buttonhead bolt
Leg Hold Down
Cable 46007-102
Lat Bar
Lat Bar Holder
Upper Frame
Roller Pads
Release Handle
Lat Bar

Precor S3.55 Specifications

Weight and Dimensions

length	86 inch (218 cm)
width	68 inch (173 cm)
height	82 inch (203 cm)
shipping weight	812 lb (370 kg)
