S3.55 Assembly and Maintenance Guide
page 26
1 2 3 4 5 6
D. Return to the Row Arm Bracket and feed the cable
over a 3½-inch pulley. Mount the pulley to the
center holes in the Row Arm Bracket using
one 2-inch bolt
two washers
one locknut
Finger tighten.
E. Wrench tighten the pulley fasteners. Leave the
Cable in the position shown in the illustration.
Note: Box 4 is opened next, although several
components remain in Box 3.

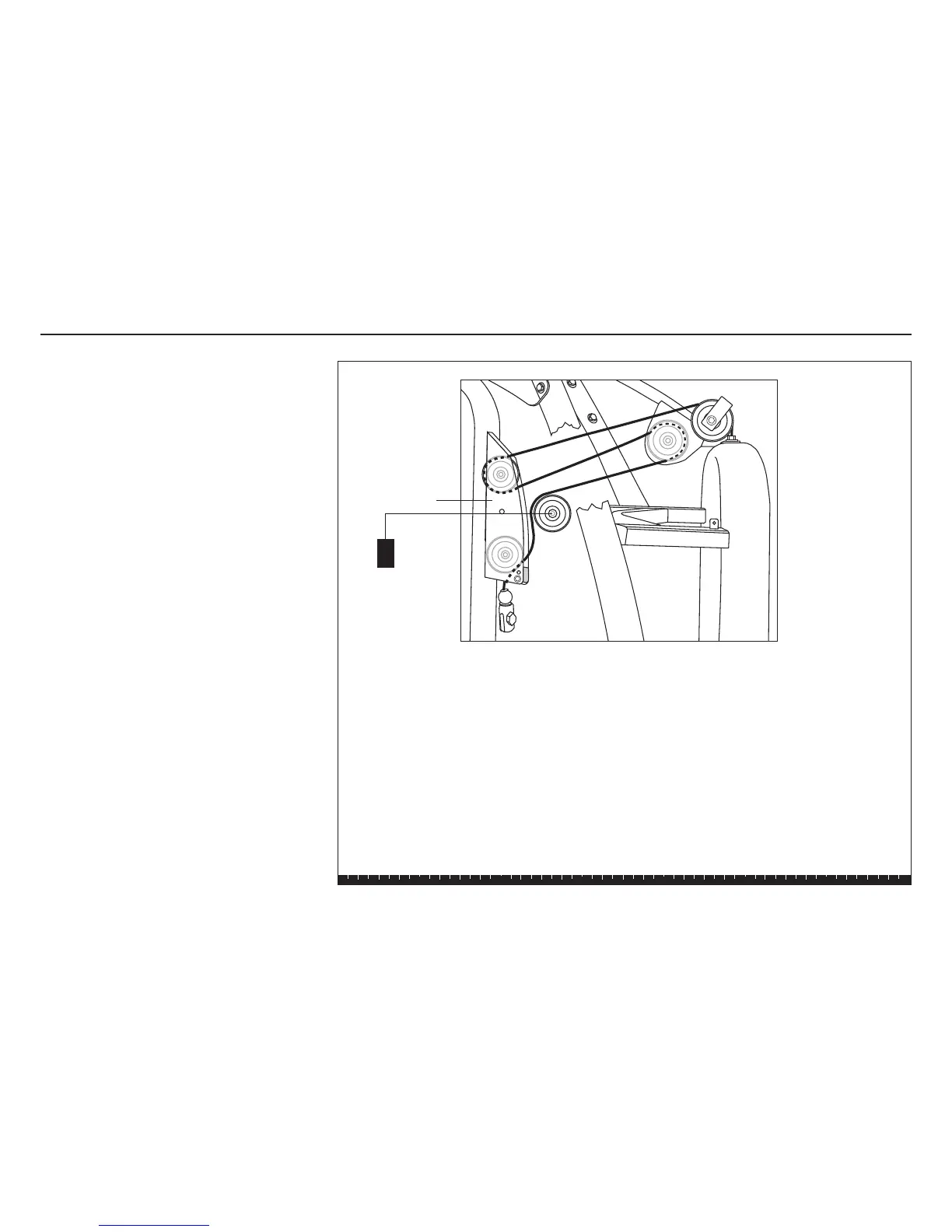

Step 16. Attach the Cable to the Row Arm, Continued
D
1 - 3½" pulley
1 - 2" bolt
2 - washers
1 - locknut
Row Arm Bracket
