S3.55 Assembly and Maintenance Guide
page 39
1 2 3 4 5 6

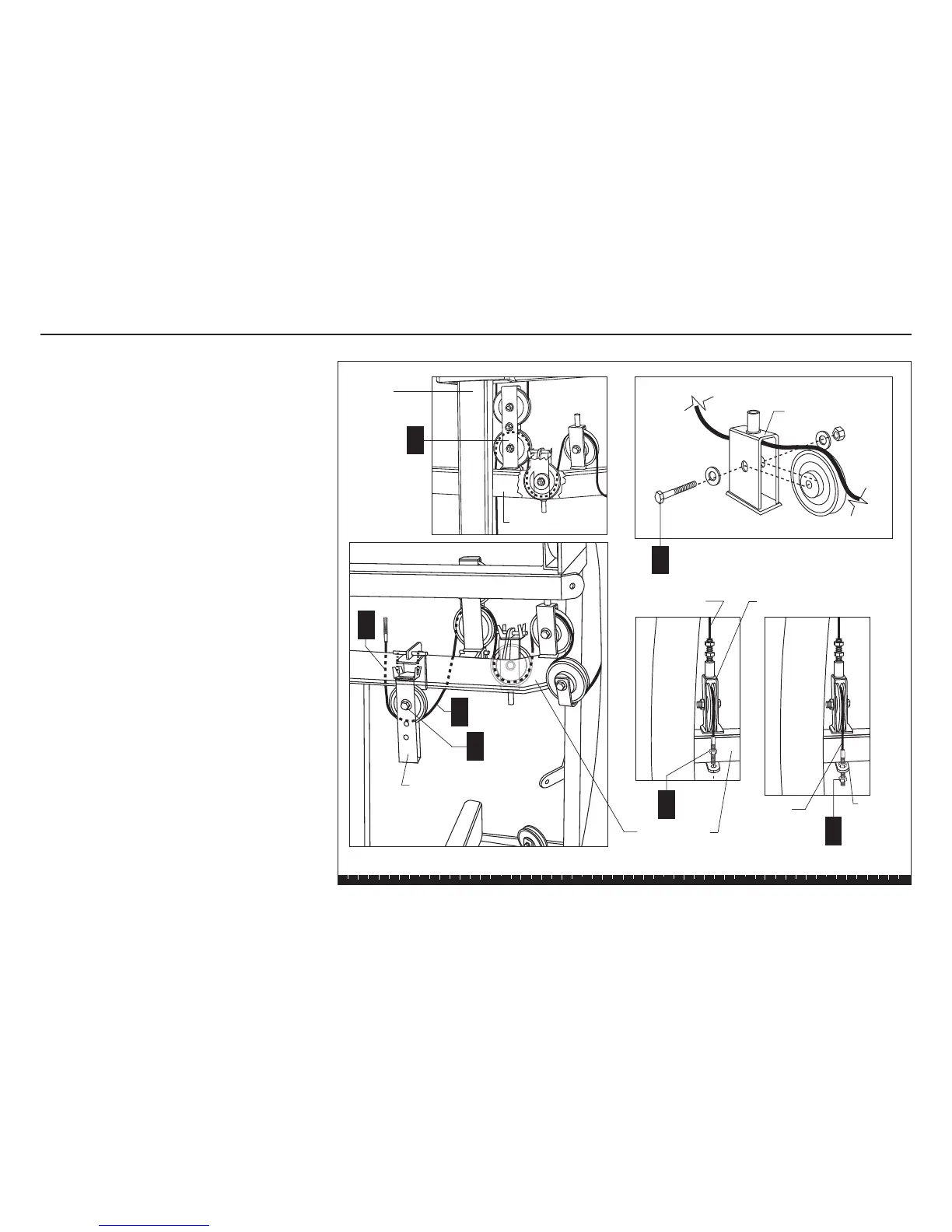

Step 24. Attach the Cable to the Main Frame, Continued
H. Continue to feed the Cable behind the Lower
Crossbar and over the bottom 4½-inch pulley
found in the Double Pulley Block.
I. Obtain a Double Pulley Block and 4½-inch pulley
from the Box 3 hardware and assemble it as
shown using
one 2-inch bolt
two washers
one locknut
Wrench tighten.
J. Feed the Cable around the 4½-inch pulley inside
the Double Pulley Block.
K. Feed the Cable behind the Lower Crossbar.
L. Loop the Cable over one 4½ -inch pulley. Attach
the pulley to the Single Pulley Block (resting on
the Lower Crossbar) using
one 2-inch bolt
two washers
one locknut
Wrench tighten.
Note: The Cable is getting short!
M. Remove one locknut on the end of the Cable and
place the Cable end into its Mounting Bracket
welded to the Lower Crossbar.
N. Secure the Cable by threading the second locknut
on the end of the Cable.
I
M
N
1 - locknut
Remove
locknut
J
1 - 4½" pulley
1 - 2" bolt
2 - washers
1 - locknut
Lower Crossbar
Middle Cross Brace
Note: Main Upright removed from illustration for clarity.
K
Cable 46008-101
Cable
46006-101
Double Pulley Block
Single Pulley Block
Double
Pulley
Block
H
Main
Upright
Single Pulley Block
L
1 - 4½" pulley
1 - 2" bolt
2 - washers
1 - locknut
Mounting
Bracket
Lower Crossbar
