Precor S3.55 User Manual

S3.55 Assembly and Maintenance Guide
page 48
1 2 3 4 5 6
G. Attach the Weight Stack Shroud using
eight ½-inch buttonhead bolts (blue patch)
eight washers
Wrench tighten.
H. Attach the Seat Rail Cover using
two ⁵⁄₈-inch self-tapping screws
I. Install the Weight Stack Top Shroud on the upper
crossbar on the Main Frame using
five ½-inch buttonhead bolts
five washers
Wrench tighten.
Note: Ask someone to help you slide the Weight
Stack Top Shroud under the Cables attached to the
Upper Frame. Keep the plastic edge of the cover
on the outside of the crossbeam.
J. Install the Rear Cover over the Rear Stay Bracket.
Push down on the Rear Cover so that the inner
flange clips on the existing fasteners.

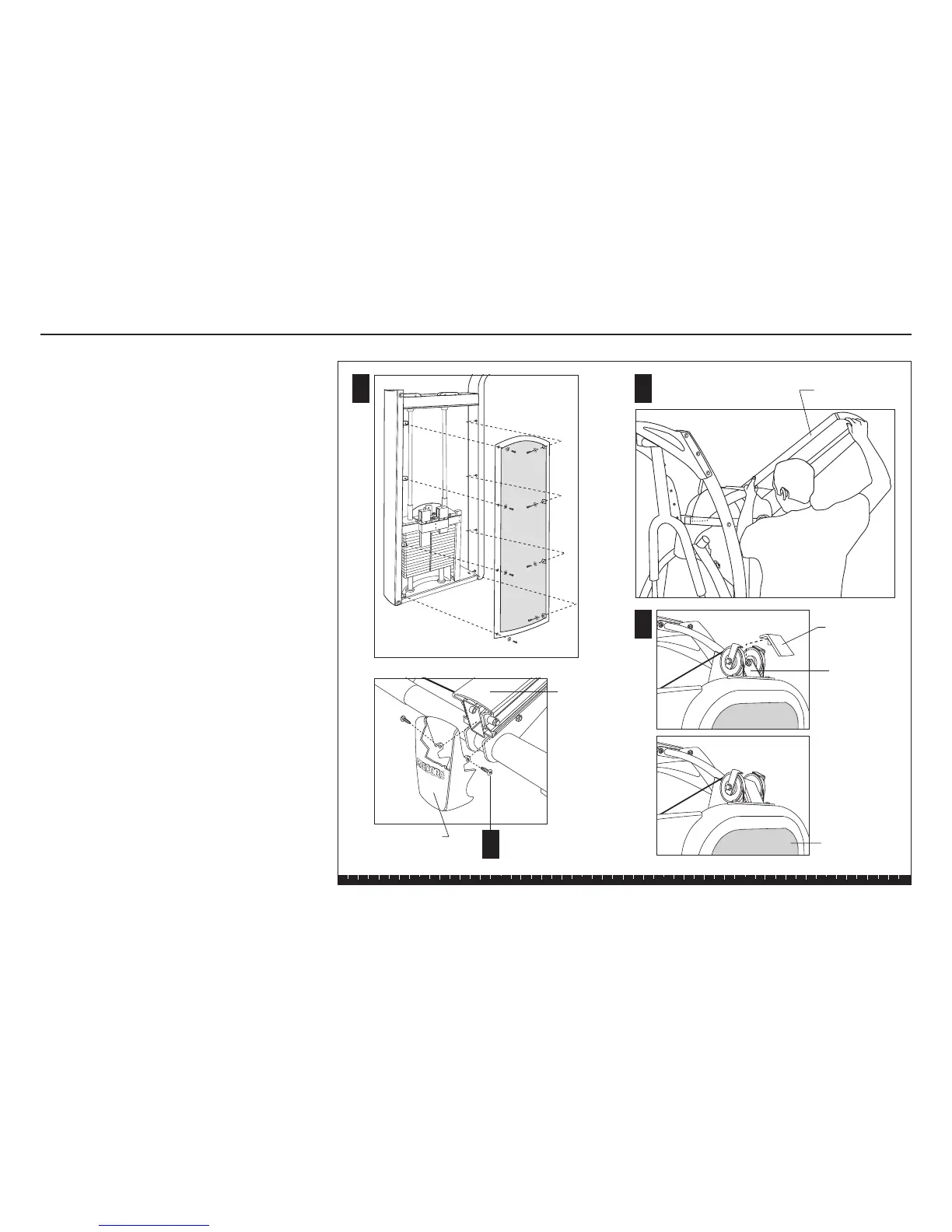

Step 30. Attach Shrouds, Continued
J
I
Weight Stack
Top Shroud
Rear Cover
Rear Shroud
G
5 - ½" buttonhead bolts
5 - washers
Rear Stay
Bracket
H
2 - ⁵⁄₈-inch self-tapping screws
Seat Rail Cover
Seat Rail

Precor S3.55 Specifications

Weight and Dimensions

length	86 inch (218 cm)
width	68 inch (173 cm)
height	82 inch (203 cm)
shipping weight	812 lb (370 kg)
