The orange handle on the Press Arm affects the seat
movement. Cable 46414-101 releases the Seat
Carriage and allows it to move back and forth so that
the user can set the preferential position of the Seat
and Press Arm in one fluid movement.
F. To adjust Cable 46414-101, check that the Cable
Eyelet is snug against the 2-inch bolt located on
the Cable Bracket.
G. Sit on the Seat and depress the orange handle on
the Press Arm.
H. Move the Seat Carriage back and forth. If the cable
is properly adjusted, it should slide easily without
any drag or clicking noises.
Note: If adjustments are needed, locate where
Cable 46414-101 enters the Seat Carriage.
I. Loosen the jam nut and lengthen the Cable to
move the Seat without any drag.
J. Test the movement of the Seat Carriage and check
for slippage.
CAUTION: Do not lengthen Cable 46414-101 too
much or the Seat will not fully engage in the Seat
Carriage. If slippage occurs during a workout, it
may cause injury.
F
46414-101
G
Cable Eyelet
2-inch Bolt

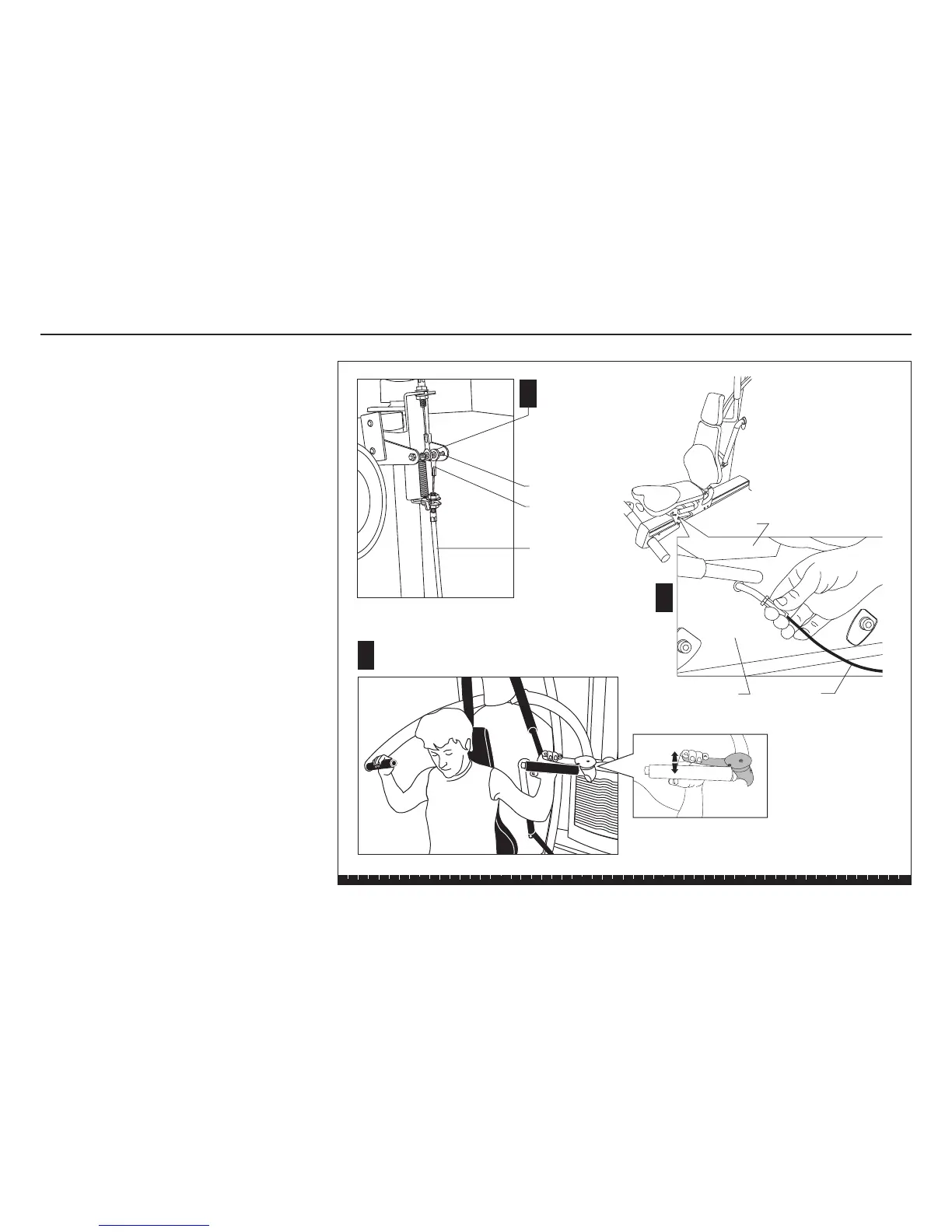

Step 3. Press Arm Cable (46254-101) and Seat Carriage (46414-101) Adjustments, continued
I
Seat Carriage
Seat Pad
46414-101

Precor S3.55 Specifications

Weight and Dimensions

length	86 inch (218 cm)
width	68 inch (173 cm)
height	82 inch (203 cm)
shipping weight	812 lb (370 kg)
