6 The Fat Channel
6.7 Aux Sends Mode (Dynamic Fat Channel)
StudioLive™ Series III
Owner’s Manual
3. L-Mid Gain. Sets the amount of boost or cut to apply the low-mid-frequency
band of this EQ.
4. L-Mid Frequency. Sets the center frequency of the low-mid-frequency band of
this EQ.
5. H-Mid Gain. Sets the amount of boost or cut to apply the high-mid-frequency
band of this EQ.
6. H-Mid Frequency. Sets the center frequency of the high-mid-frequency band of
this EQ.
7. High Gain. Sets the amount of boost or cut to apply the high-frequency band of
this EQ.
Press the Processor button to turn the EQ on or off.
6.7 Aux Sends Mode (Dynamic Fat Channel)
Dynamic Fat Channel Controls

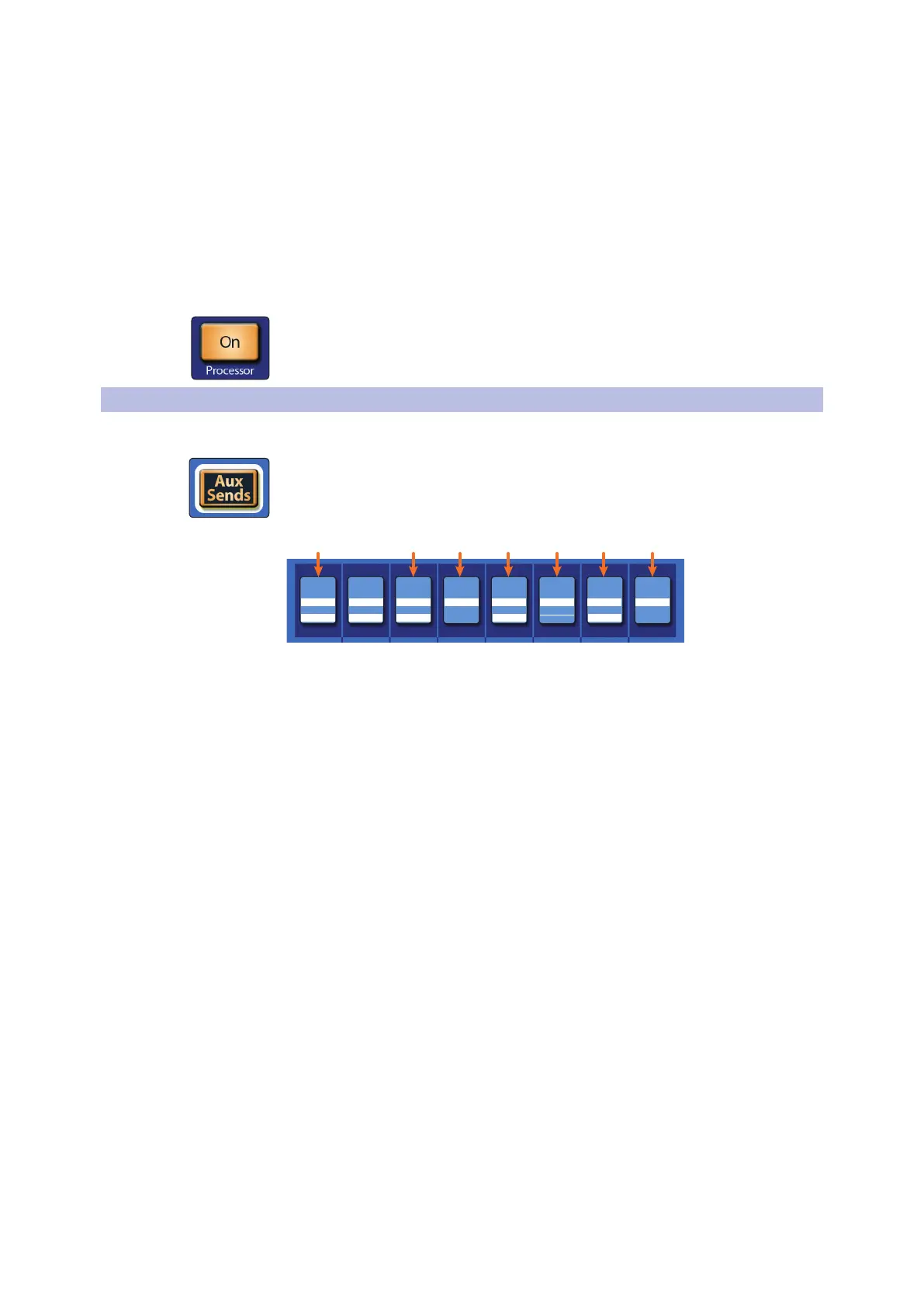

When the Fat Channel is in Aux Sends mode, the Scribble Strips will display different
parameters depending on how you have your FlexMixes configured:
1 2 3 4 5 6 7
MTXAUXAUX
1
MIX 3-4
Pan
MIX 7-8
Pan3 5
MTX
7
-10.00 dB < C > < C >-4.00 dB
SUB
6
Off -4.00 dB-24.00 dB
Mute
AUX
2
-5.00 dB
Mute Mute Mute MuteMute
Asn
1. Mono Aux. The encoder controls the send level of the channel to the Mono Aux.
The button beneath controls the channel mute in the Mono Aux.
2. Stereo Aux Send. The encoder controls the send level of the channel to the
Stereo Aux. The button beneath controls the channel mute in the Stereo Aux.
3. Stereo Aux Pan. The encoder controls the pan position of the channel in the
Stereo Aux.
4. Mono Matrix. The encoder controls the send level of the channel to the Mono
Matrix Mix. The button beneath controls the channel mute in the Mono Matrix
Mix.
5. Subgroup. The button beneath controls the channel assignment to the
Subgroup. Stereo Subgroups will be provided with a pan control as well.
6. Stereo Matrix. The encoder controls the send level of the channel to the Stereo
Matrix Mix. The button beneath controls the channel mute in the Stereo Matrix
Mix.
7. Stereo Matrix Pan. The encoder controls the pan position of the channel in the
Stereo Matrix Mix.
