Lever L2
Used to replace the belt unit and to remove the jammed paper.
Replacing the belt unit
When paper is jammed

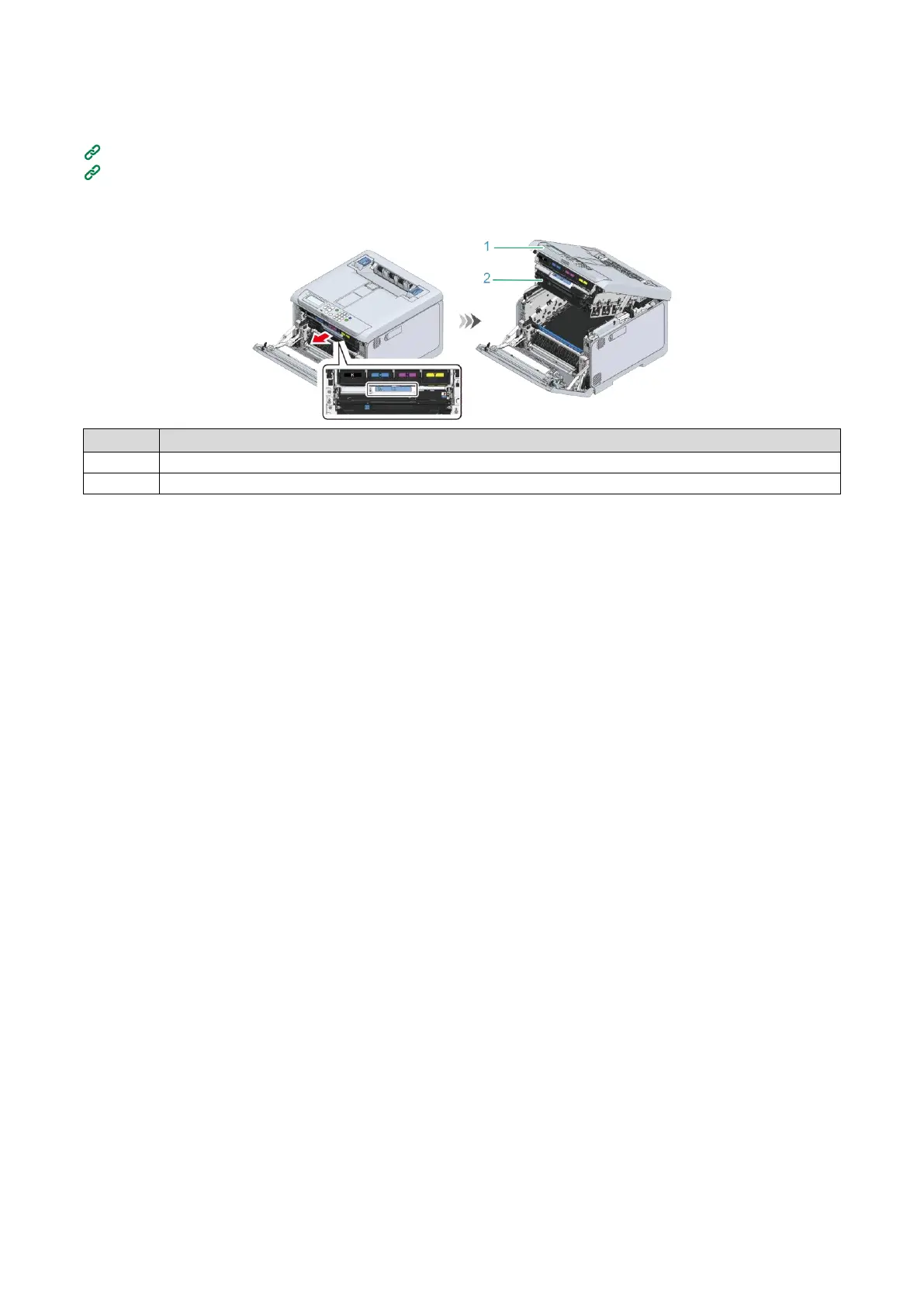

After opening the front cover, pull the L2 lever.
After the operation, both the output tray and the image drum basket are integrated and raised.
No.
Name
1
Output tray
2
Image drum basket
When closing, close the output tray first, and then close the front cover with your both hands firmly.
