RLX2 Industrial Hotspot Series
ProSoft Technology, Inc. Page 125 of 212
June 15, 2015
R A D I O L I N X I N D U S T R I A L H O T S P O T
B R O W S E R
The IH Browser finds any radio connected to the network. It can also see basic settings
and change the IP address. Access to the radio’s Web page can be done. For more
information, see Primary radio functions.

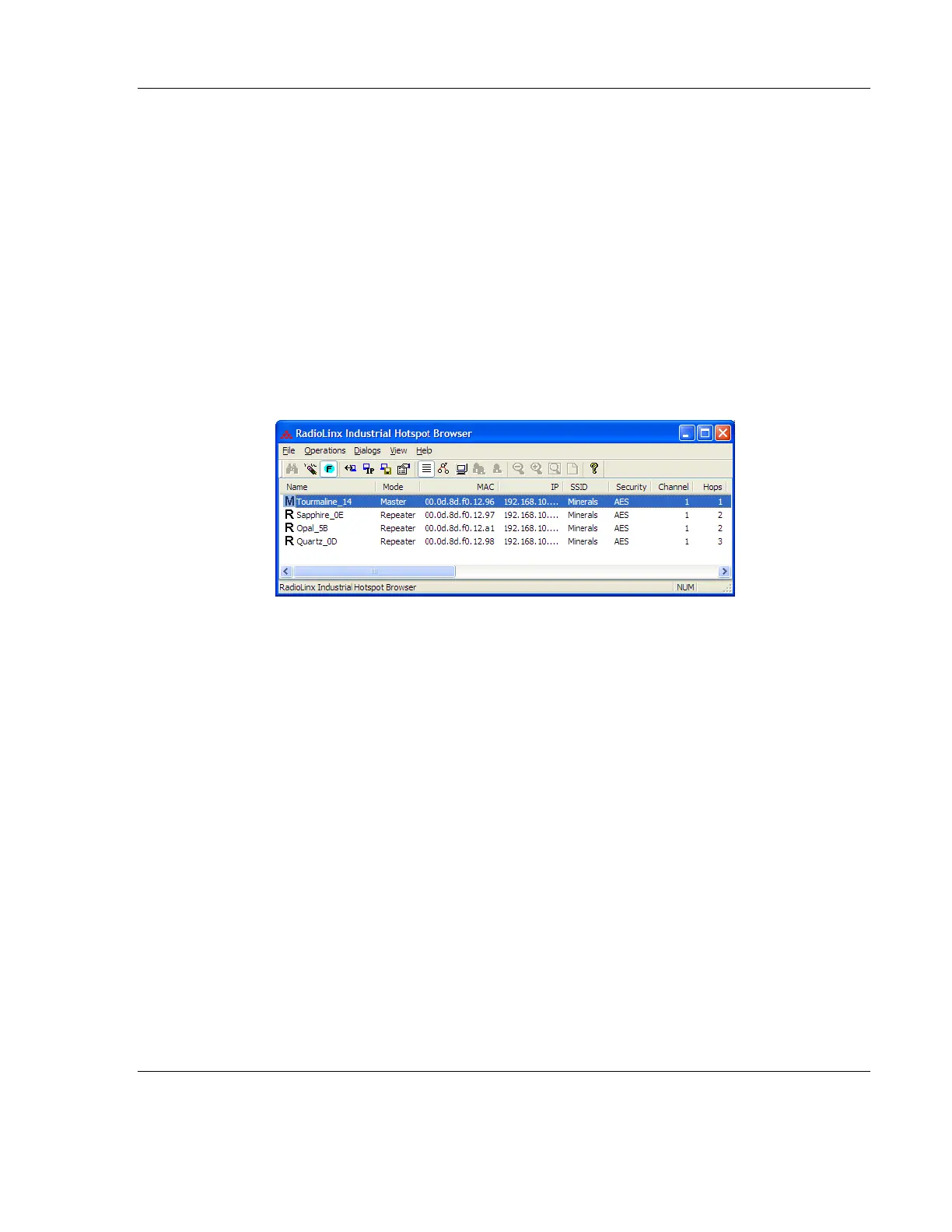

The List view (shown in the illustration) appears with a list of any radios on the same
network as the computer running the IH Browser. If a known radio cannot be seen, click
the Scan button in the tool bar or select Scan from the File menu.
The preceding illustration shows the List View. Refer to Topology view (page 145) to see
alternate views.
To clear all the radios from the list, click the Erase button in the tool bar or select Clear
from the File menu. Refreshing the list is done by clicking Scan.
If there is trouble viewing radios in the IH Browser, see Troubleshoot missing radios
(page 65).
