RLX2 Industrial Hotspot Series
Page 76 of 212 ProSoft Technology, Inc.
June 15, 2015
If the table has more MAC addresses than it can display in the window, use
the Next and Prev buttons to move up and down through the table.
Click Refresh to update the table.

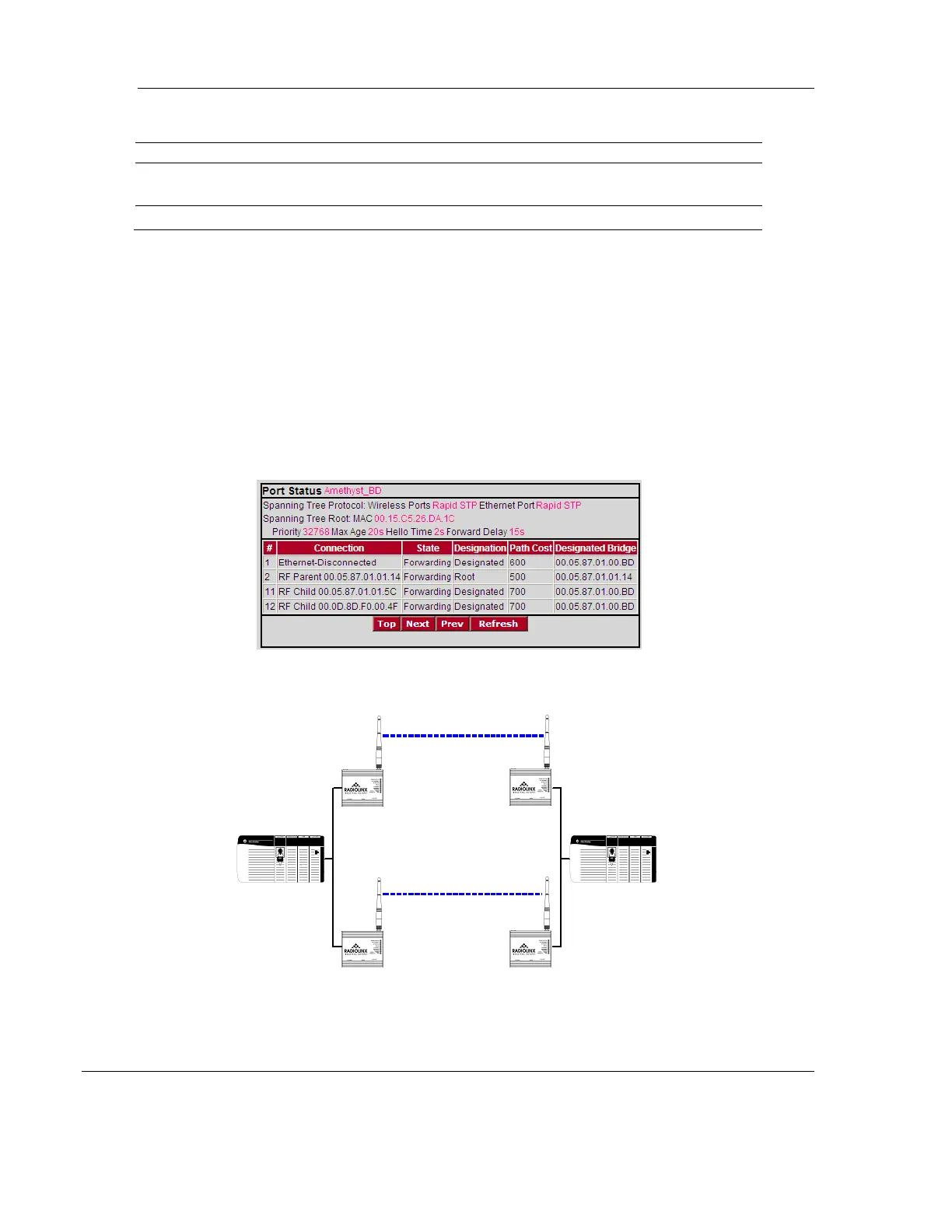

Port Status
When you click on the Port Status button, you can see information about all of the
active ports on the radio. Above the table, you can see information about the current
Spanning Tree including the MAC address of the “root” device, and the timing
parameters that are set for the current Spanning Tree. Each radio can have up to 34
active ports – one Ethernet cable, one parent RF link, and up to 32 child RF links.
The primary reason for creating a Spanning Tree to that is allows you to create fully
redundant paths. If any single radio in a redundant path loses its connection, another
path still exists, and the connection will be updated and communication restored.
.
