RLX2 Industrial Hotspot Series
Page 126 of 212 ProSoft Technology, Inc.
June 15, 2015
Primary Radio Functions

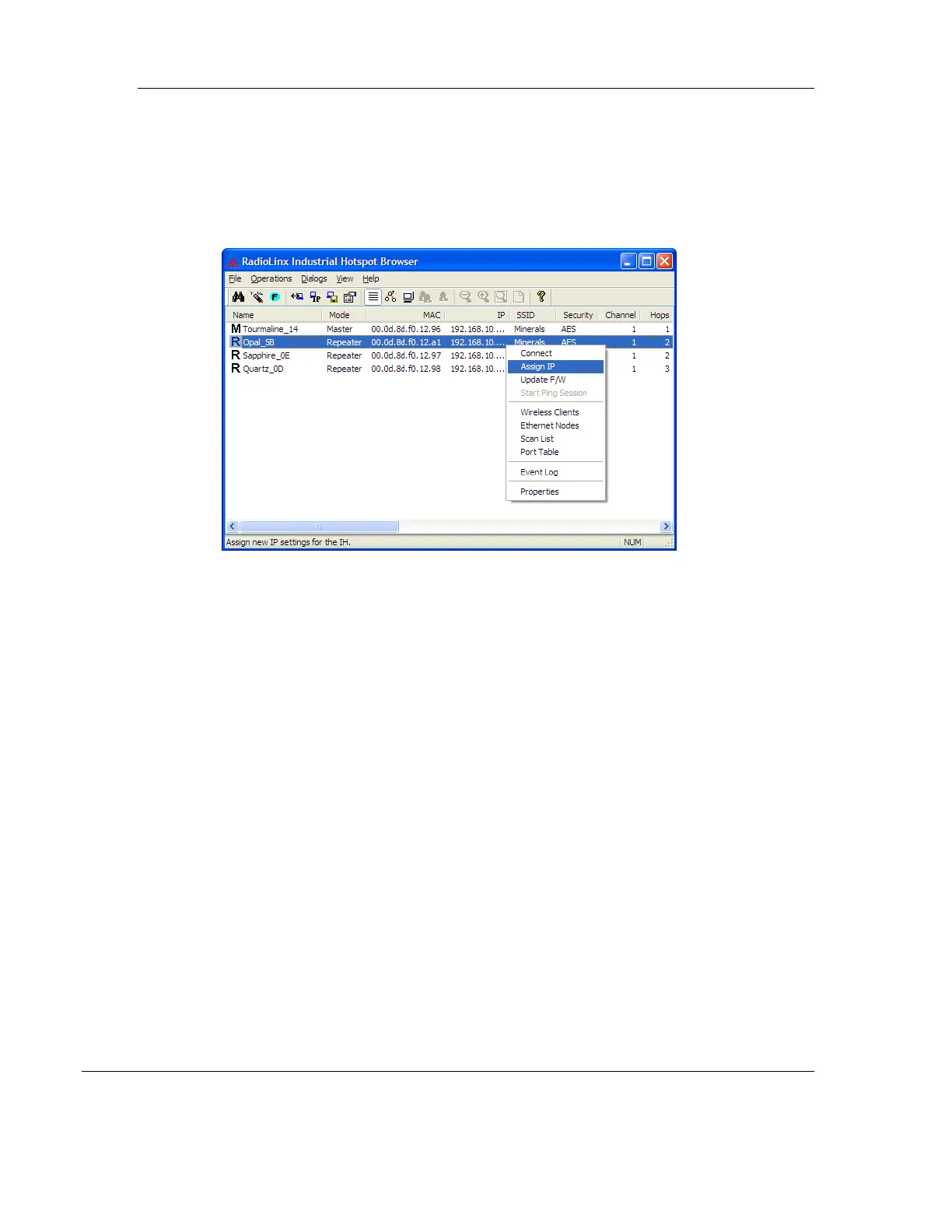

Performing the following primary functions on any listed radio is done by right-clicking
the radio name.
Connect (page 130): Log in to the Radio Configuration / Diagnostic Utility to configure a
radio or check diagnostics.
Assign IP (page 54, page 131): Assign a temporary IP address to a radio.
Update Firmware (page 132): Update the version of firmware the radio uses.
Start Ping Session (page 132): Sends a ping command to an address
Wireless Clients (page 134): View a list of client radios
Ethernet Nodes (page 135): View a list of wired Ethernet nodes connected to the
network
Scan List (page 136): View a list of all the radios detected on the network (including
those from other vendors)
Port Table (page 137): Lists of all the active ports on the radio
Event Log (page 138): Shows a history of the radio
Properties (page 139): View the selected radio’s properties.
In addition, there are more options in the File menu.
Print either a list of the radios' properties or a topology view.
