Port/Radio-based VLAN Tagging without Managed
Switches

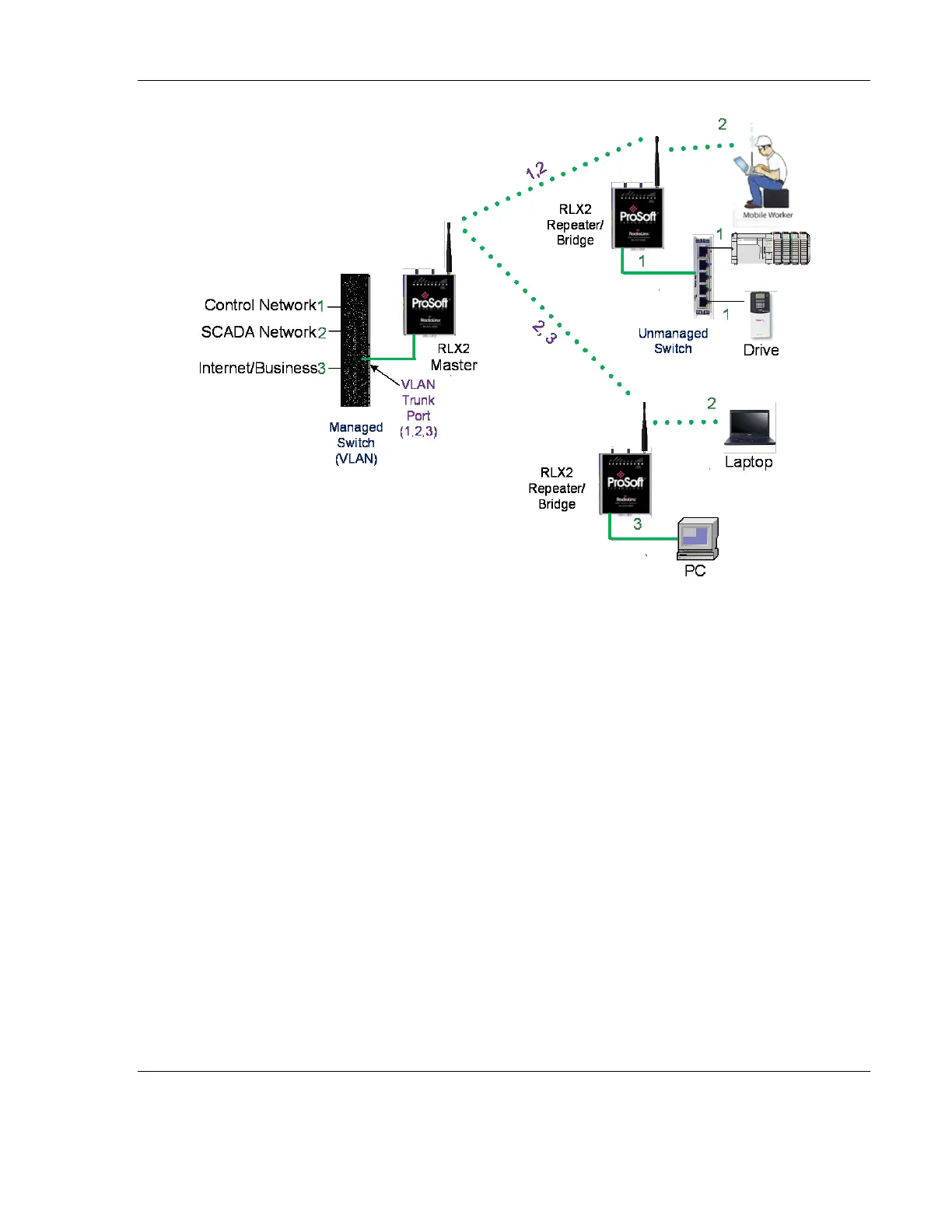

In the following scenario, the network has three VLANs (capacity for 8). Each VLAN has
access to a specific Radio port. The Radio supporting the Managed Switch passes on the
802.1Q frames. The wireless network also supports Radio to Radio VLANs using one or
more Trunk Links.
PLC, Drive & HMI communicate on one VLAN on the same subnet
Mobile Worker/Laptop communicate with a fixed server on VLAN 2 (separate subnet).
