RLX2 Industrial Hotspot Series
ProSoft Technology, Inc. Page 35 of 212
June 15, 2015
Antennas are to be installed in accordance with Control Drawing 06/2514. See the
Antenna section in this manual.
For All Other Radios
1. Attach an Ethernet cable to the designated master RLX2 radio. Make sure this
network connection is on the same subnet as the PC running the IH Browser
configuration software.

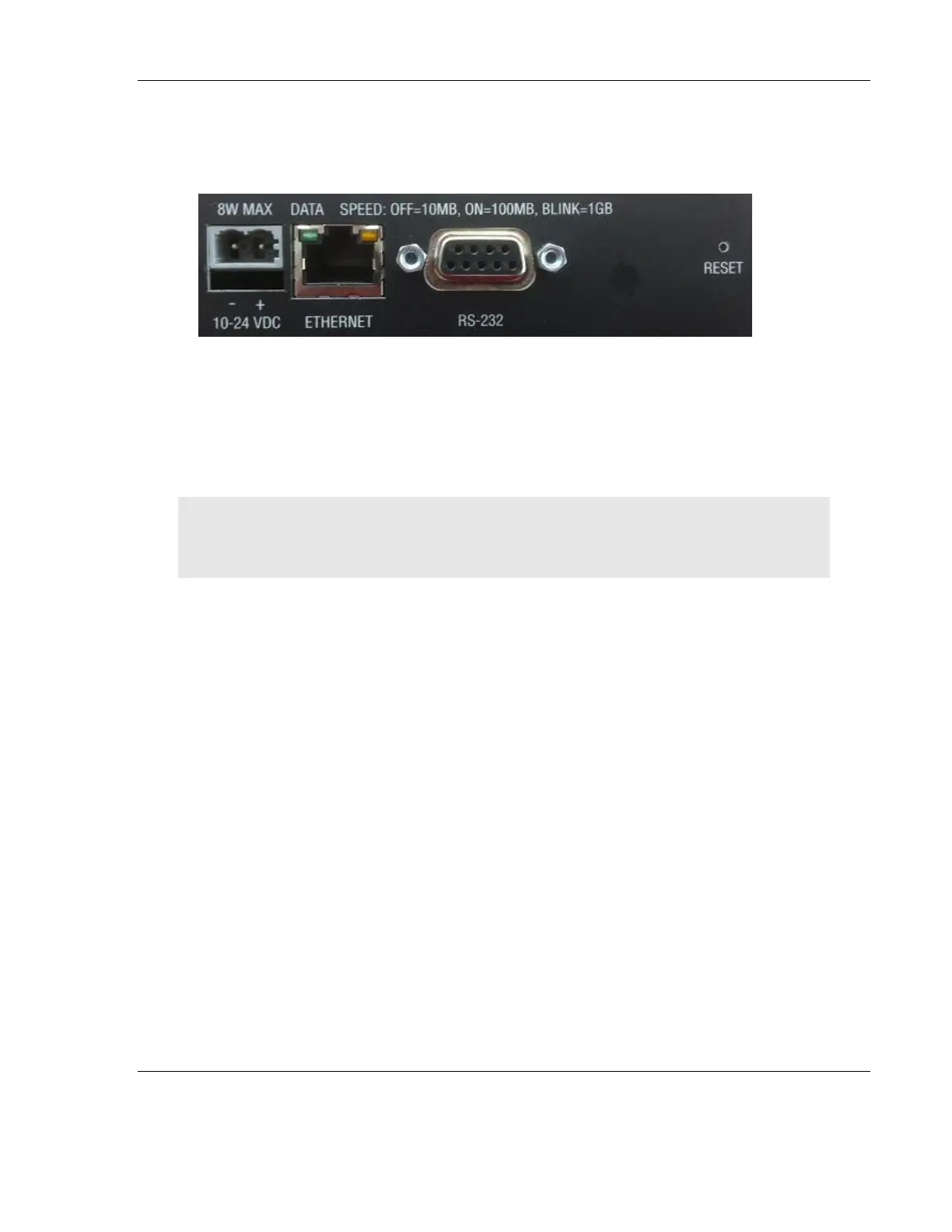

Note: The Ethernet DATA LED should come on when data is sent or received from the radio. The
Ethernet SPEED LED indicates the speed of the Ethernet connection. The SPEED LED is off for
10 Base T, on for 100 Base T, and blinks about once every two seconds for 1000 Base T links.
Power-Up the Radios
1. Power up the radio. There is no On/Off Switch. Power is applied when the power
cord connection is made to the RLX2 radio.
The power LED should illuminate with an amber color, then go out for a few seconds
during initialization, then finally come back on green. This process will take 10 to 15
seconds. Once the power LED is green, the radio has booted and is operational.
Other LEDs may become active as well.
2. Take note of the MAC address of the RLX2 radio. This is printed on a label attached
to the front of the radio. The MAC address should be something like 00-0D-8D-XX-
YY-ZZ (e.g. 00-0D-8D-F0-5C-8E.) This number uniquely identifies the radio on the
network.
3. Run the IH Browser configuration software.
