RLX2 Industrial Hotspot Series
ProSoft Technology, Inc. Page 149 of 212
June 15, 2015
Show Parents - All

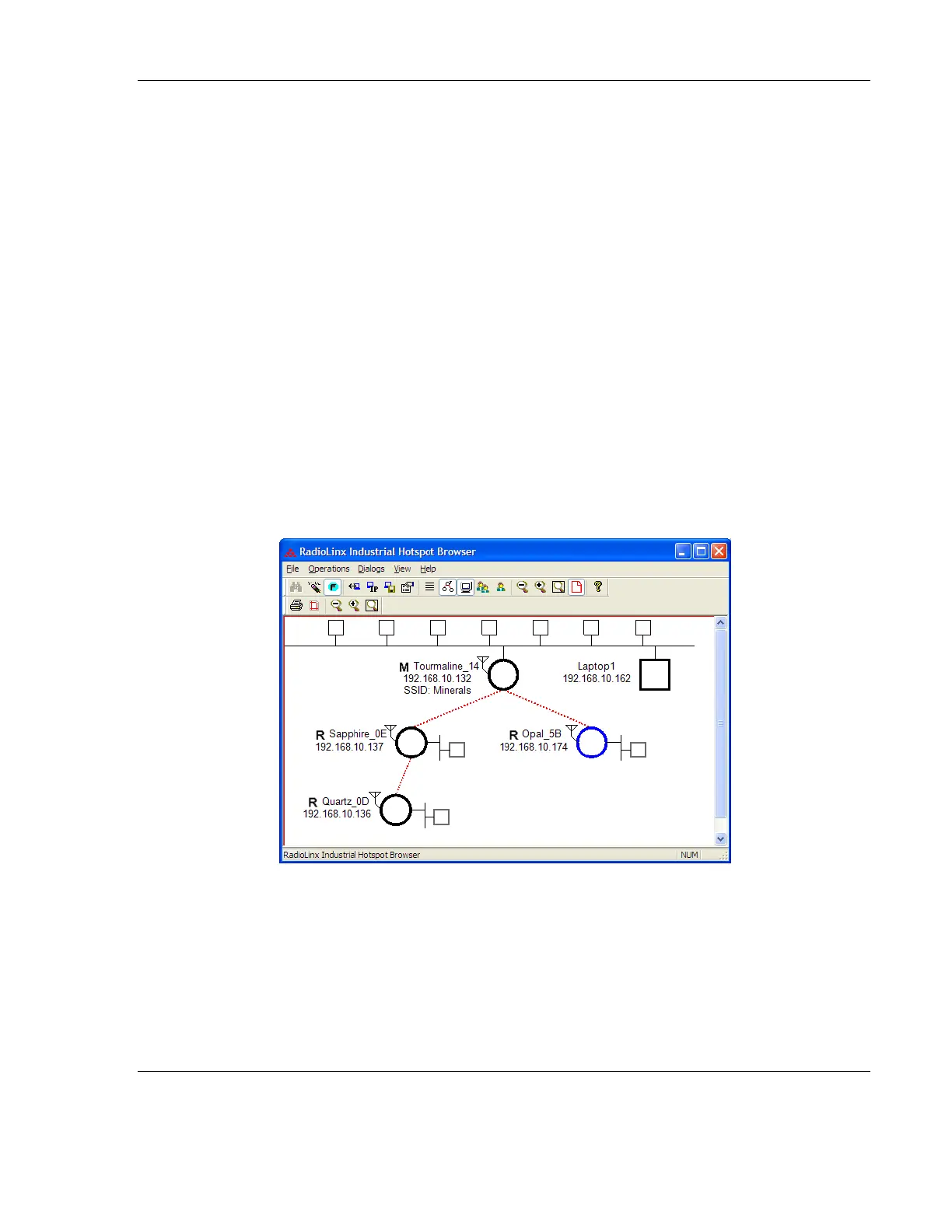

The Show Parents function displays the possible alternate parents for a repeater
graphically in the topology view. The link from the repeater to its current parent will be
shown in red. If the repeater can hear other radios in the network, links to those radios
will be shown in blue. This gives a graphical representation of the number of alternate
paths available to a radio should its parent link go down. A detailed list of each of the
alternates can be seen by right-clicking and selecting ‘Scan List'. This list, though, shows
not only radios in the same network but also 802.11 radios on other networks.
By selecting All, alternate paths for all repeaters in the network will be shown. By
selecting One, alternate paths will be shown only for the one repeater that is currently
selected.
Show Parents – All is only available in the Topology View.
Show Parents - One
This is similar to Show Parents – All except that only the current parent is shown.
Print Area
Use the Print Area command to show the border around the area of the IH Browser
window. To print, use the Print command on the File menu.
