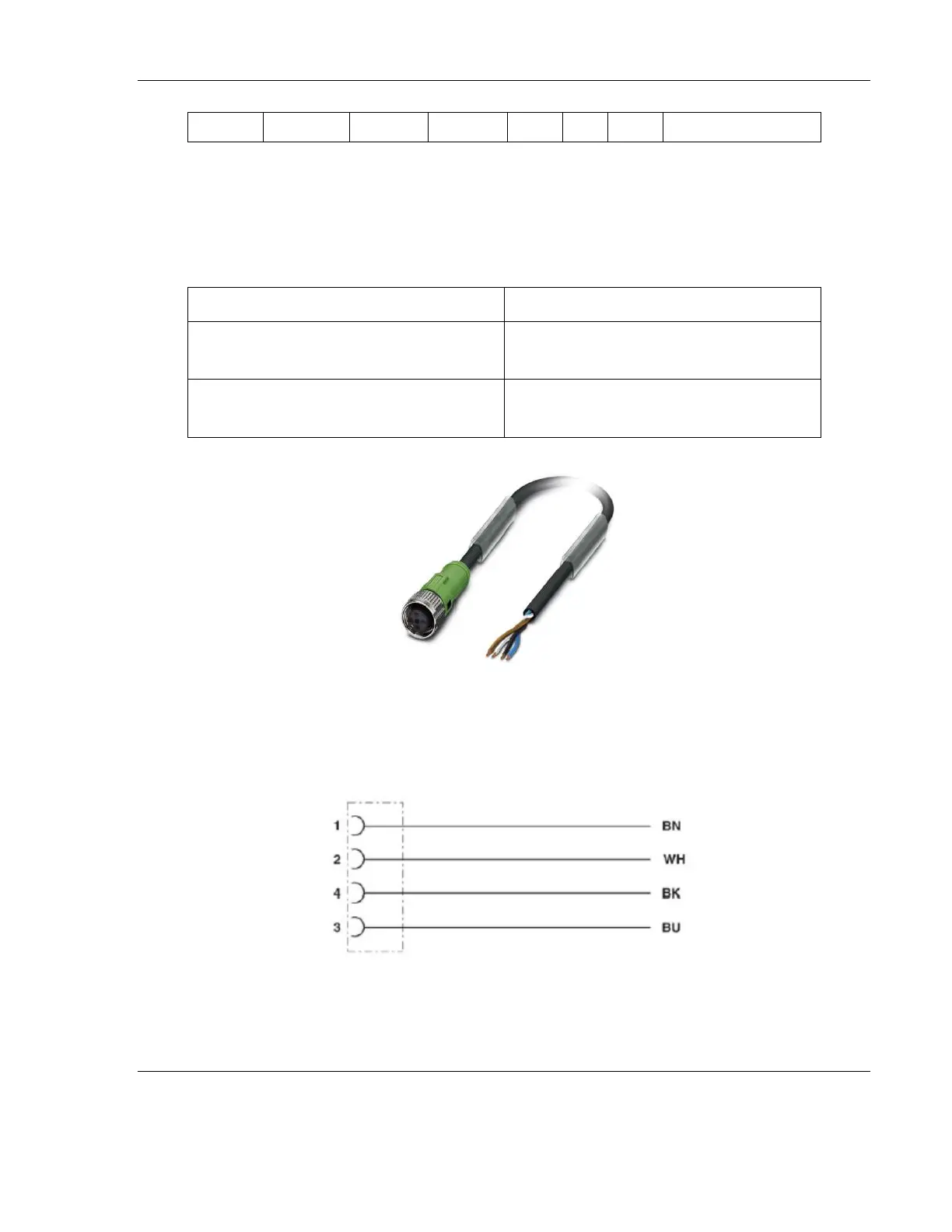

Radio Power Requirements (RLX2-IHNF-W)
These cables are available for purchase from ProSoft Technology:
Power Cable, 3m (7 ft), M12 to un-
terminated leads
Power Cable, 10m (33 ft), M12 to un-
terminated leads
The RLX2-IHNF-W and WC radios accept PoE configuration. However, the RLX2-IHNF
radio is equipped with a power M12 port (IEC 61076-2-101). The RLX2-IHNF-WC
Ethernet and PoE cable protrudes from the module. There is no M12 port.
Contact Assignment of the M12 Socket
BK (Black) and BU (Blue) wires are tied together and connect to “+”.
BN (Brown) and WH (White) wires are tied together and connected to “-“.
