ProSoft Technology RadioLinx RLX2-IHW User Manual

RLX2 Industrial Hotspot Series
Page 138 of 212 ProSoft Technology, Inc.
June 15, 2015
All 4 Dialogs
This menu entry simply opens all four “list” dialogs (Scan, Port, Ethernet node, and
Client.) The dialogs open on top of each other. Drag the windows to view them
completely.
Close All
This entry closes all “list” dialogs that are currently open.

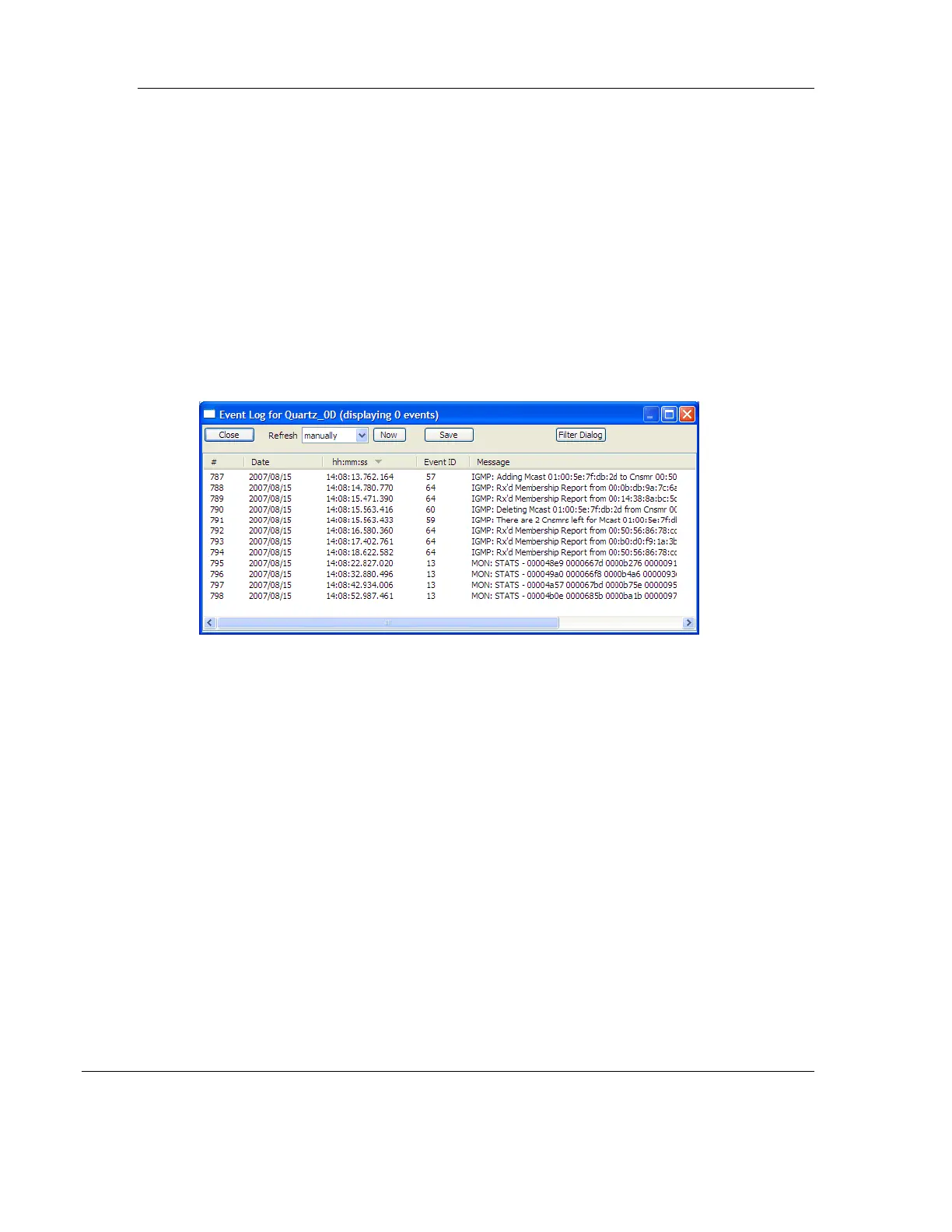

Event Log
The event log allows the extraction of a log from the selected radio. The log shows a
history of the radio. The event log can be saved to a file for troubleshooting purposes.

ProSoft Technology RadioLinx RLX2-IHW Specifications

General

Product Type	Industrial Hotspot
Wireless Standard	802.11a/b/g/n
Max Data Rate	300 Mbps
Antenna Connector	RP-SMA
Encryption	AES, TKIP
Frequency Band	2.4 GHz
Protocol	TCP/IP, UDP
Operating Voltage	10-30 VDC
Power Supply	External
Operating Temperature	-40°C to 70°C
Ethernet Ports	1 x 10/100
Antenna	External
Security	WPA2, WPA, WEP
Approvals	FCC, IC, CE
