RLX2 Industrial Hotspot Series
Page 168 of 212 ProSoft Technology, Inc.
June 15, 2015

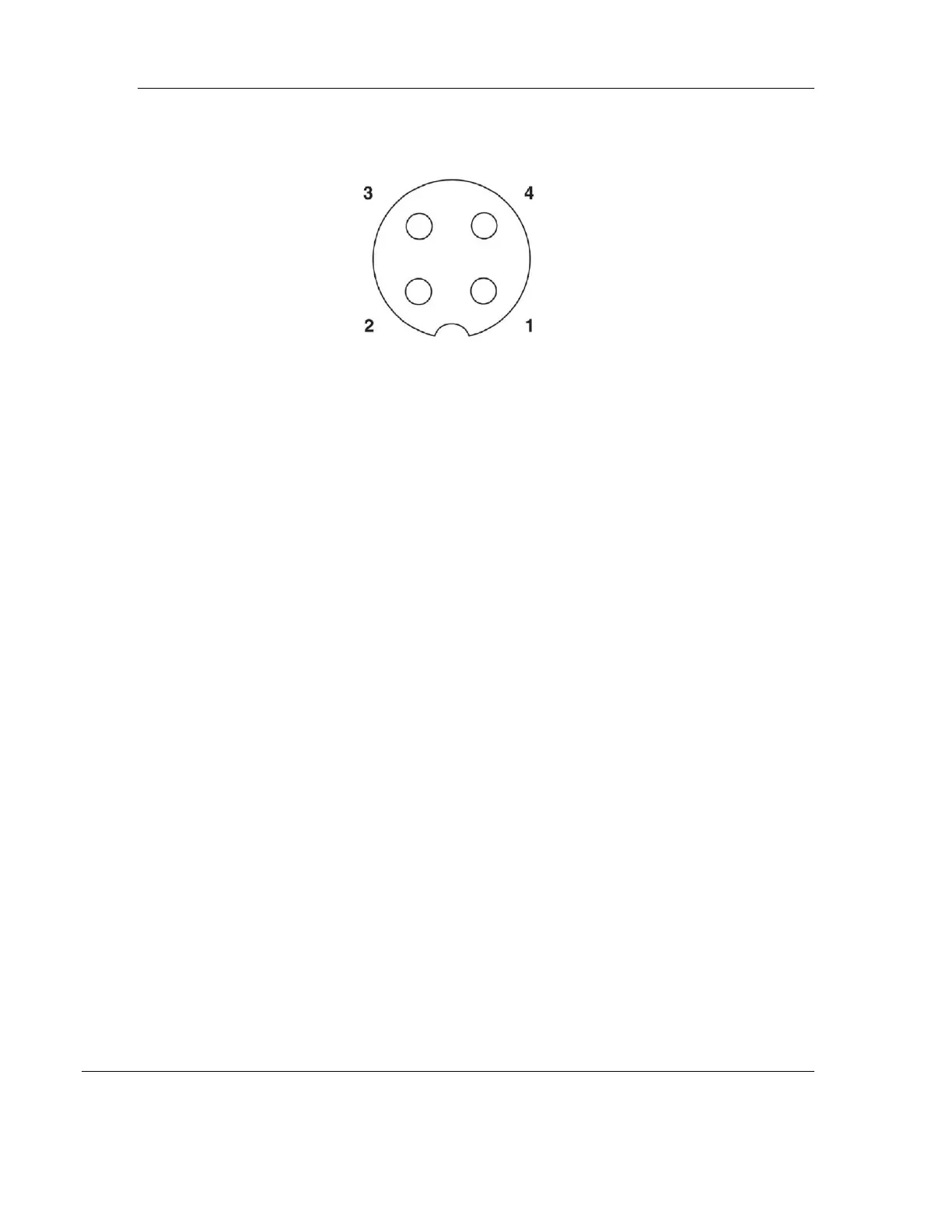

Pin Assignment M12 Socket, 4-pos, A-coded, View Female Side
Radio Power Requirements (All other radios)
Note: The following instructions do not pertain to the RLX2-IHNF-W radio.
The RLX2 radios accept voltages between 10 and 24 VDC, with an average power draw
of less than 8 Watts. A detachable power connector comes with the radio, as shown
below. The connector terminals are labeled + (positive DC connection) and - (DC ground
connection).
The AC-to-DC power supply adapter supplied with the optional RLX-IHBTK Bench Test Kit
can be used. The DC power wires must be less than 3 meters in length to meet
regulatory requirements.
Important: When wiring the power connector supplied with the radio, be sure to
observe the proper polarity markings on the power connector. Wiring the connector
incorrectly can cause serious damage to the radio which will not be covered under the
ProSoft warranty.
