RLX2 Industrial Hotspot Series
Page 172 of 212 ProSoft Technology, Inc.
June 15, 2015

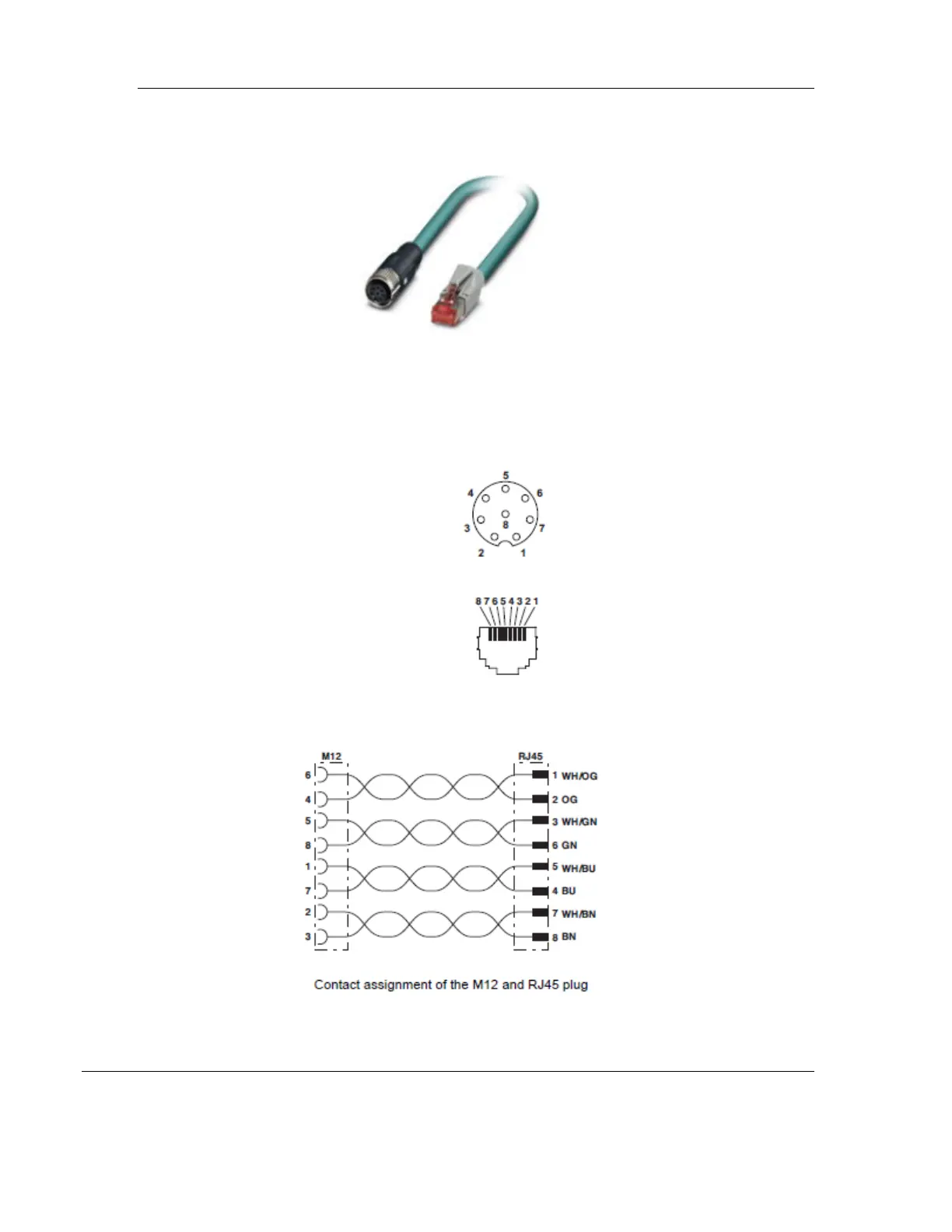

This PoE cable contains an M12 (IP65, IP67) connector on one end that attaches to the
radio. The other end contains an RJ45 connector for a network connection or power
injector.
Pin Assignments
M12 socket, 8-pos, A-coded, female
RJ45 pin assignment
Circuit Diagram
