RLX2 Industrial Hotspot Series
ProSoft Technology, Inc. Page 29 of 212
June 15, 2015

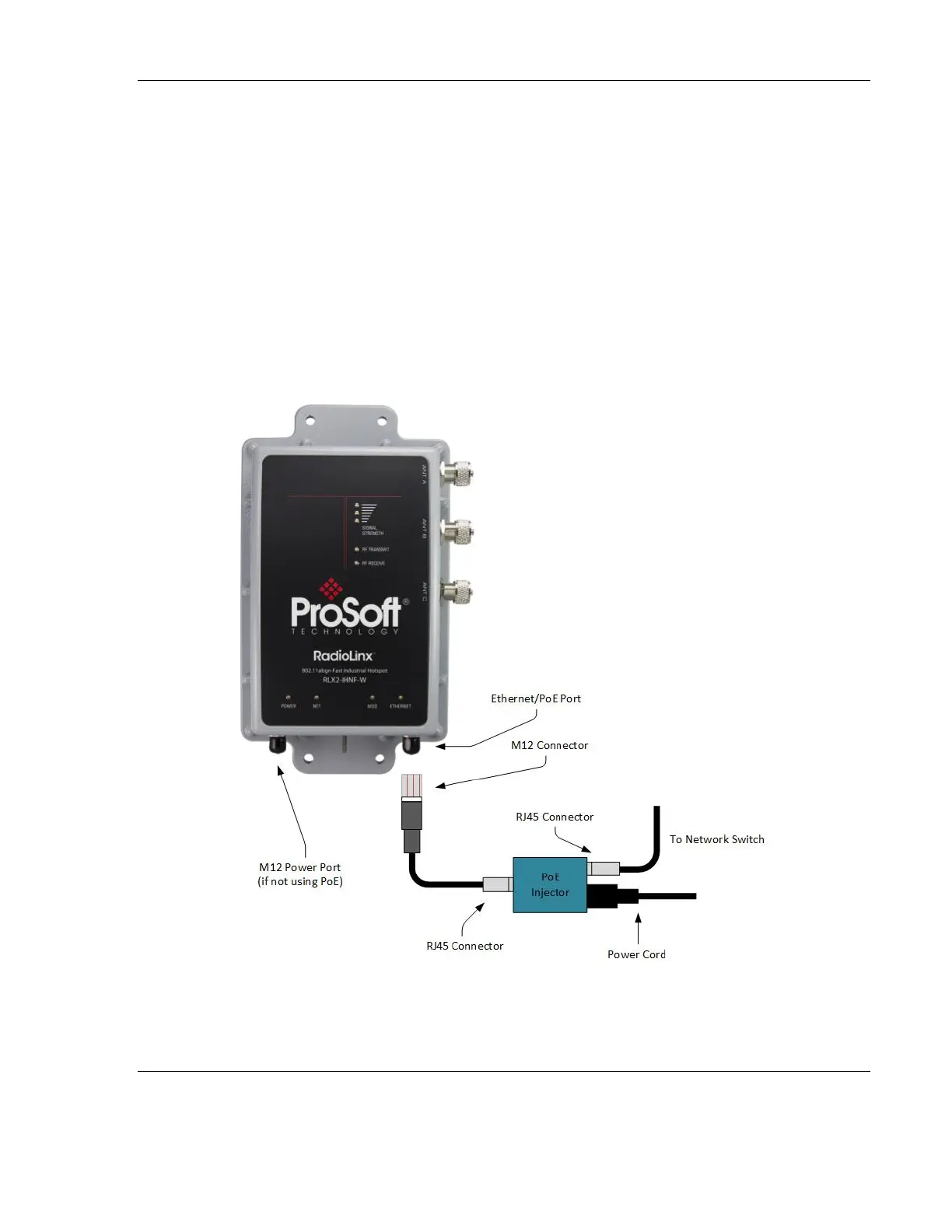

2. Connect the power cable with an M12 connector to the specified port shown.
Note: The RLX2-IHNF-W radio can be powered over Ethernet (POE) with an
approved injector available from ProSoft. In this case, the Power connector would
not be used.
If PoE is used, please cap the Power Connector with the supplied M12 Waterproof
Cap before installation.
3. Connect the Ethernet cable through the PoE injector (if using PoE) and then into the
network switch.
Note: Most off-the-shelf PoE Injectors work with this unit except for the 802.3at/
PoE+ Injectors.
Note: The M12 PoE cable is not included with the radio but can be ordered through
ProSoft.
