RLX2 Industrial Hotspot Series
Page 56 of 212 ProSoft Technology, Inc.
June 15, 2015
To see how a radio is linked in the network, make sure that the radio is connected to a
PC, and select Topology View from the View menu in the IH Browser.

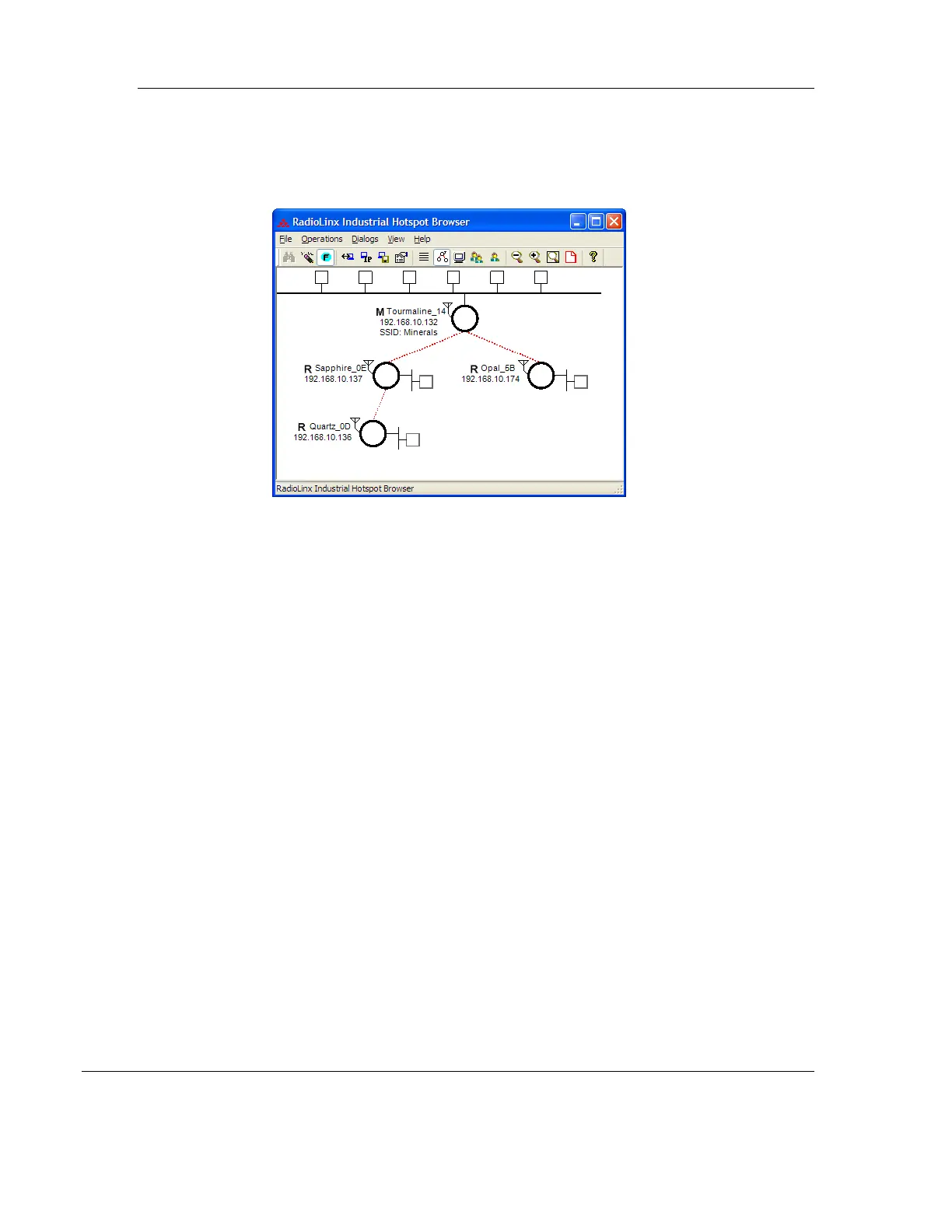

The Topology view shows a diagram of the network’s wireless connections. Use this
view to see whether all the radios are linked, and approve of the way the radios are
linked.
A radio that is not linked to a parent will show as a circle outlined by a flashing dashed
red line. It may be near the bottom of the window. Scroll down to view all available
radios. To change how radios link to the network, see Parent Link settings (page 82).
Refer to Improve Signal Quality (page 66) for more information on overcoming poor
connectivity.
