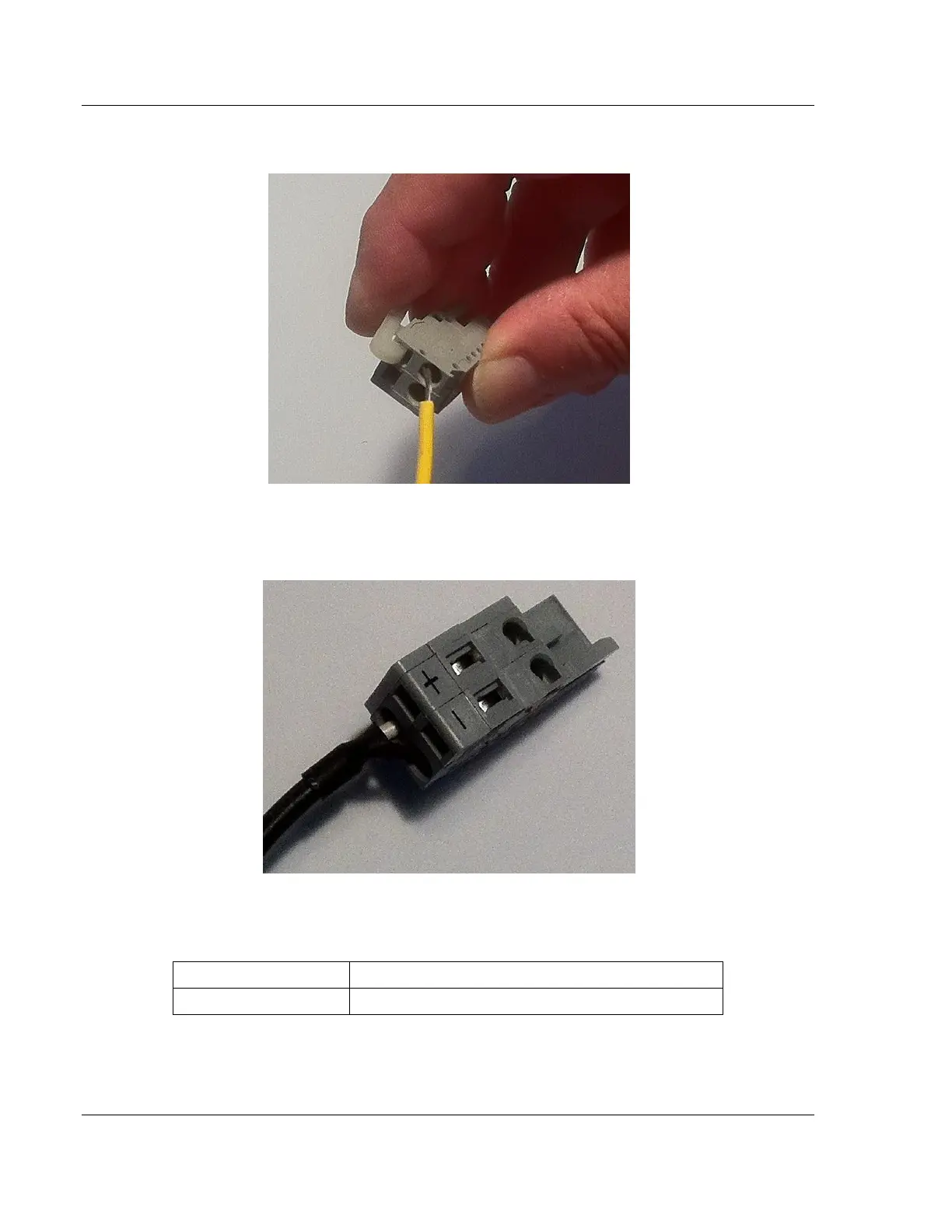

To use the installation tool, insert it into the connector as shown:
Press down on the installation tool to use it as a level which will open the
connector’scontacts to insert a wire. A properly-wired power connector is shown:
The RLX2 radios accept power from 802.3af Mode B or passive Power over
Ethernet sources supplying 48VDC, with an average power draw of less than 8
watts. ProSoft offers the following passive PoE injectors for use with the RLX2
radios:
Power over Ethernet Injector, AC input
Power over Ethernet Injector, 9 to 36 VDC input voltage
The radio shall be installed by trained personnel only, as outlined in the
installation instructions provided with each radio.
