ProSoft Technology RLX2-IHA User Manual

RadioLinx Industrial Hotspot Browser RLX2 Series ♦ 802.11a, b, g, n
User Manual Industrial Hotspot
Page 90 of 161 ProSoft Technology, Inc.
May 8, 2013
7.1 Primary radio functions

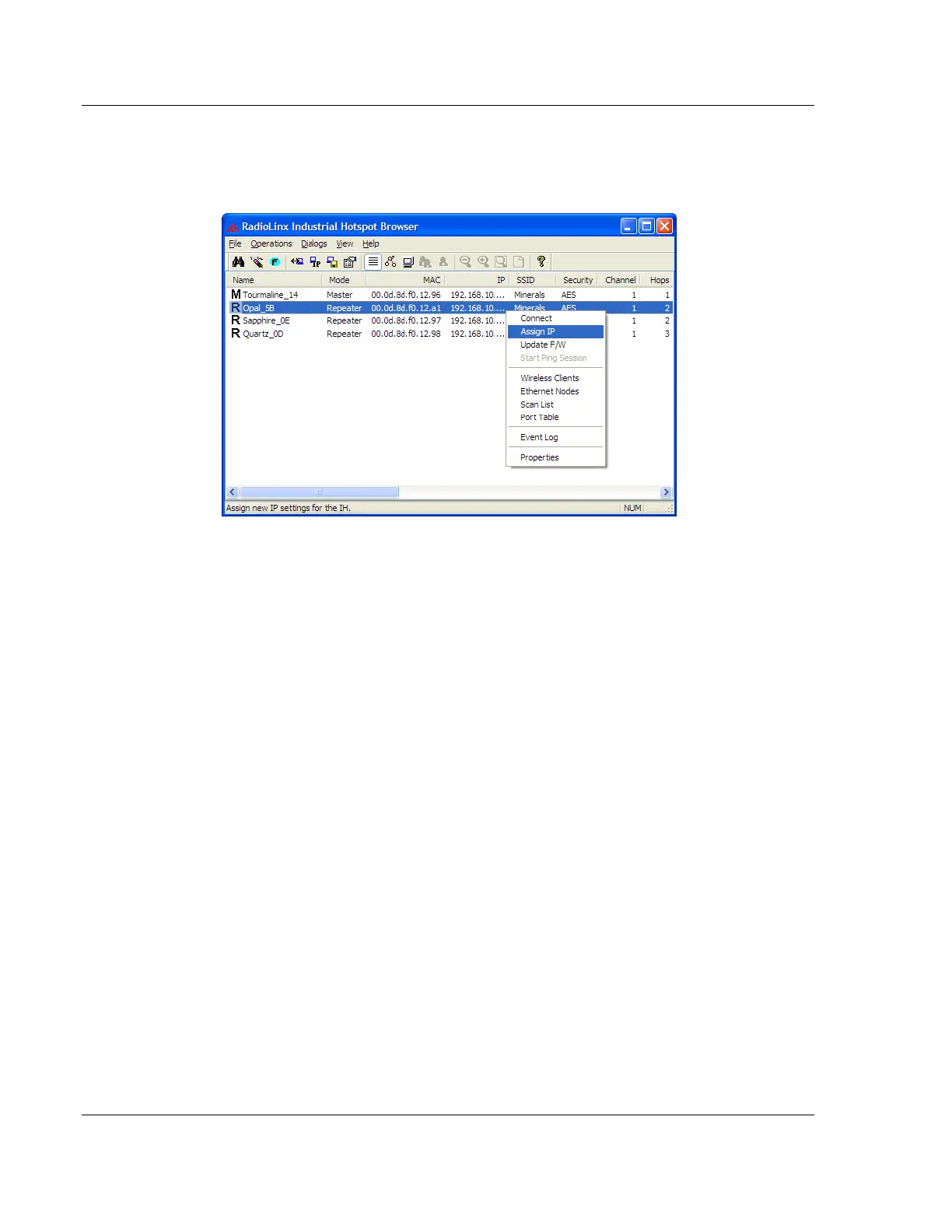

Performing the following primary functions on any listed radio is done by right-
clicking the radio name.
Connect (page 94): Log in to the Radio Configuration / Diagnostic Utility to
configure a radio or check diagnostics.
Assign IP (page 39, page 94): Assign a temporary IP address to a radio.
Update Firmware (page 95): Update the version of firmware the radio uses.
Start Ping Session (page 96): Sends a ping command to an address
Wireless Clients (page 97): View a list of client radios
Ethernet Nodes (page 98): View a list of wired Ethernet nodes connected to the
network
Scan List (page 99): View a list of all the radios detected on the network
(including those from other vendors)
Port Table (page 100): Lists of all the active ports on the radio
Event Log (page 100): Shows a history of the radio
Properties (page 101):Viewtheselectedradio’sproperties.
In addition, there are more options in the File menu.
 Print either a list of the radios' properties or a topology view.
 Change how the IH Browser scans for radios.
