Reference RLX2 Series ♦ 802.11a, b, g, n

User Manual Industrial Hotspot

Page 126 of 161 ProSoft Technology, Inc.

May 8, 2013

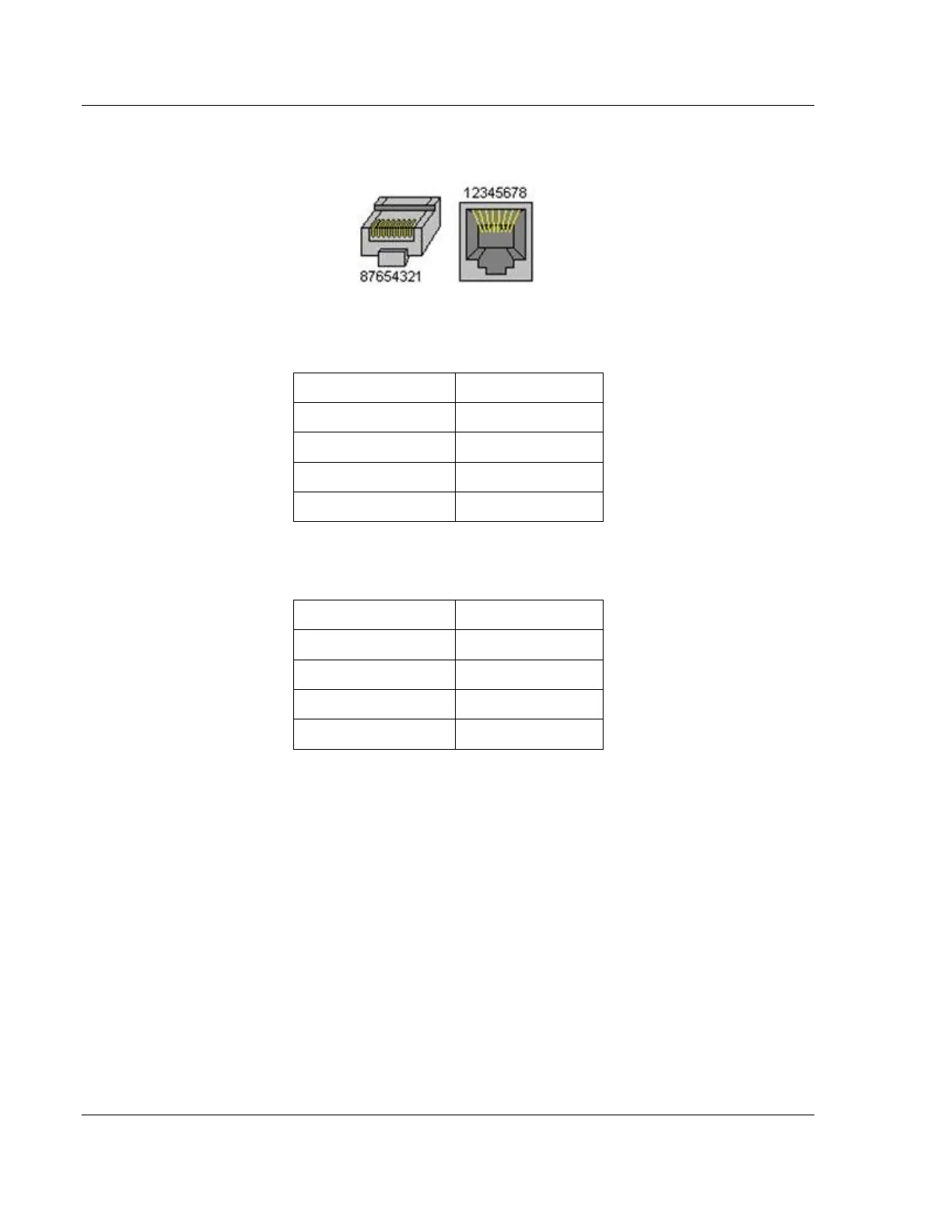

8.5.3 Ethernet Cable Configuration

Straight-Though Cable

RJ-45 Pin

1 Rx+

1 Tx+

2 Rx-

2 Tx-

3 Tx+

3 Rx+

6 Tx-

6 Rx-

Crossover Cable

RJ-45 Pin

1 Rx+

3 Tx+

2 Rx-

6 Tx-

3 Tx+

1 Rx+

6 Tx-

2 Rx-
