ProSoft Technology RLX2-IHA User Manual

Start Here RLX2 Series ♦ 802.11a, b, g, n
User Manual Industrial Hotspot
Page 14 of 161 ProSoft Technology, Inc.
May 8, 2013
1.2.3 Antenna Ports

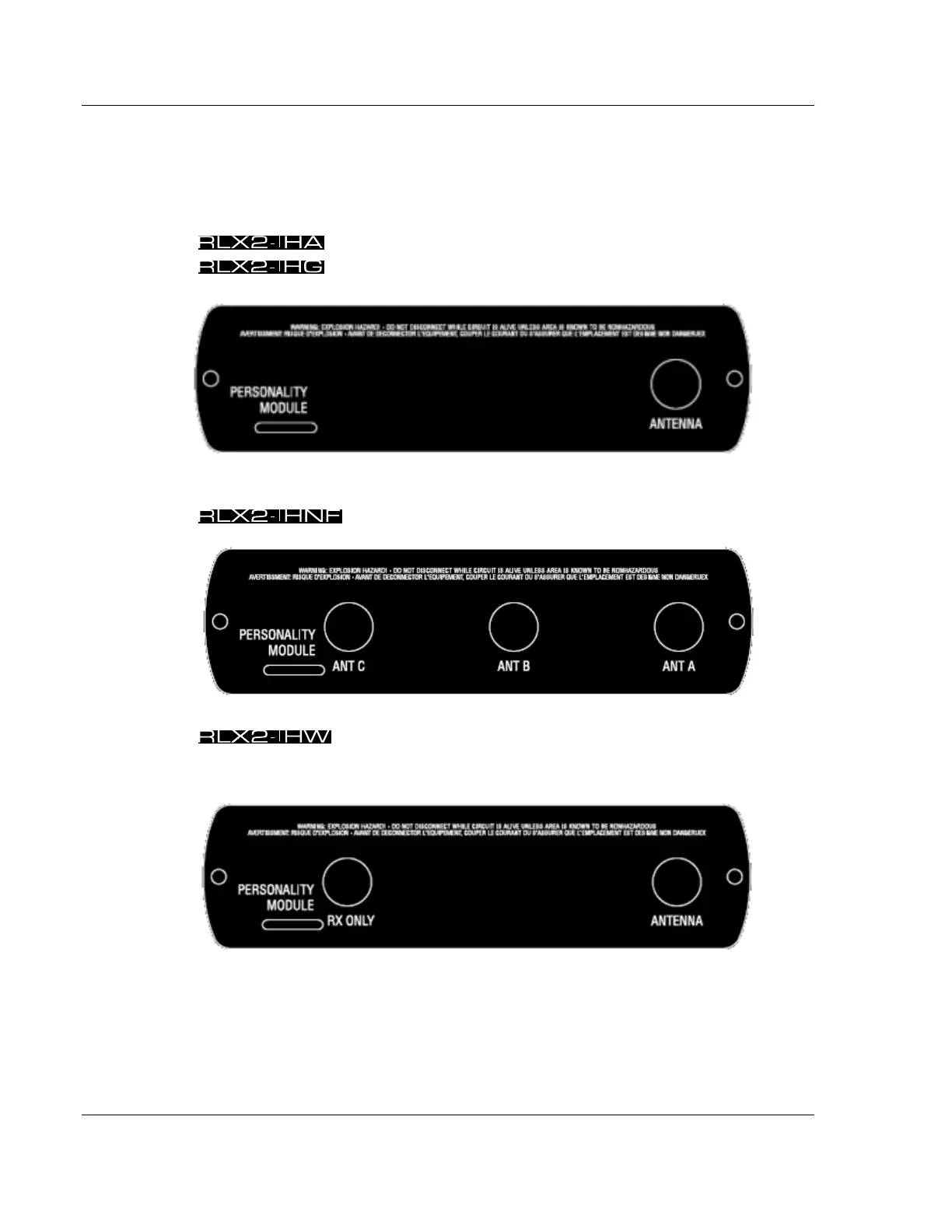

Each RLX2 series radio has active antenna connectors on the top as shown
below:
These radios have a single active antenna port:
This radio has three active antenna ports:
This radio uses the right-side antenna port for transmit and receive. An
optional receive-only antenna can be attached to the left-side antenna
port to improve performance in some applications.

ProSoft Technology RLX2-IHA Specifications

General

Brand	ProSoft Technology
Model	RLX2-IHA
Category	Wireless Router
Language	English
