RadioLinx Industrial Hotspot Browser RLX2 Series ♦ 802.11a, b, g, n
User Manual Industrial Hotspot
Page 98 of 161 ProSoft Technology, Inc.
May 8, 2013
7.4.2 Ethernet Nodes
This dialog box opens when the Ethernet Nodes option is selected from the AP
Dialogs menu.

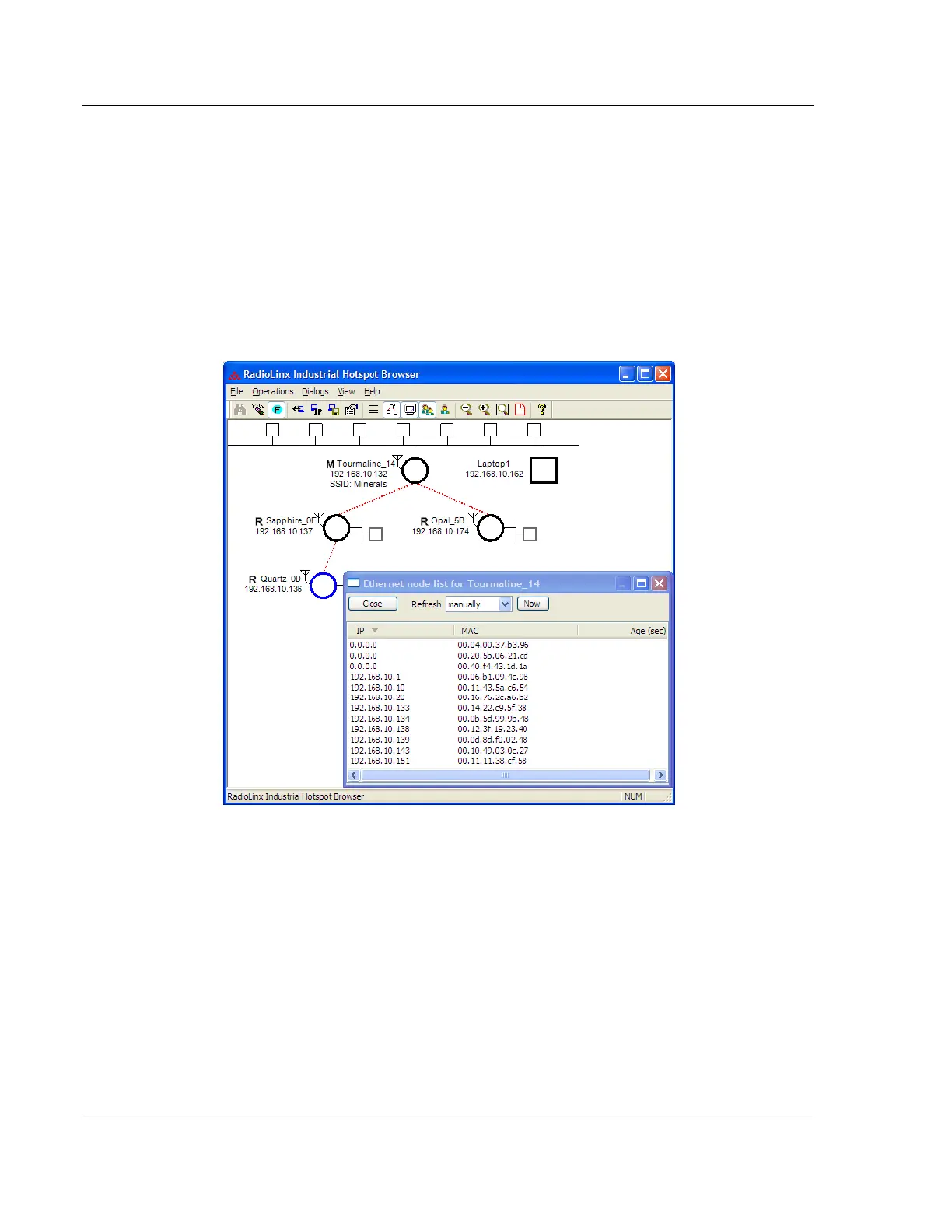

Use this dialog box to see information about Ethernet devices attached to the
radios. The following illustration shows a list of Ethernet devices (by IP address
and MAC ID) attached to the Ethernet port of Tourmaline_14. In addition to the IP
and MAC ID it gives an age for each entry, which is the amount of time since a
packet has been heard from that device.
