RLX2 Series ♦802.11a, b, g, n Reference
Industrial Hotspots User Manual
ProSoft Technology, Inc. Page 123 of 161
May 8, 2013
8.5 Radio hardware
8.5.1 Radio power requirements
The RLX2 radios accept voltages between 10 and 24 VDC, with an average
power draw of less than 8 Watts. A detachable power connector comes with the
radio, as shown below. The connector terminals are labeled + (positive DC
connection) and - (DC ground connection).
The AC-to-DC power supply adapter supplied with the optional RLX-IHBTK
Bench Test Kit can be used. The DC power wires must be less than 3 meters in
length to meet regulatory requirements.
Important: When wiring the power connector supplied with the radio, be sure to
observe the proper polarity markings on the power connector. Wiring the
connector incorrectly can cause serious damage to the radio which will not
be covered under the ProSoft warranty.

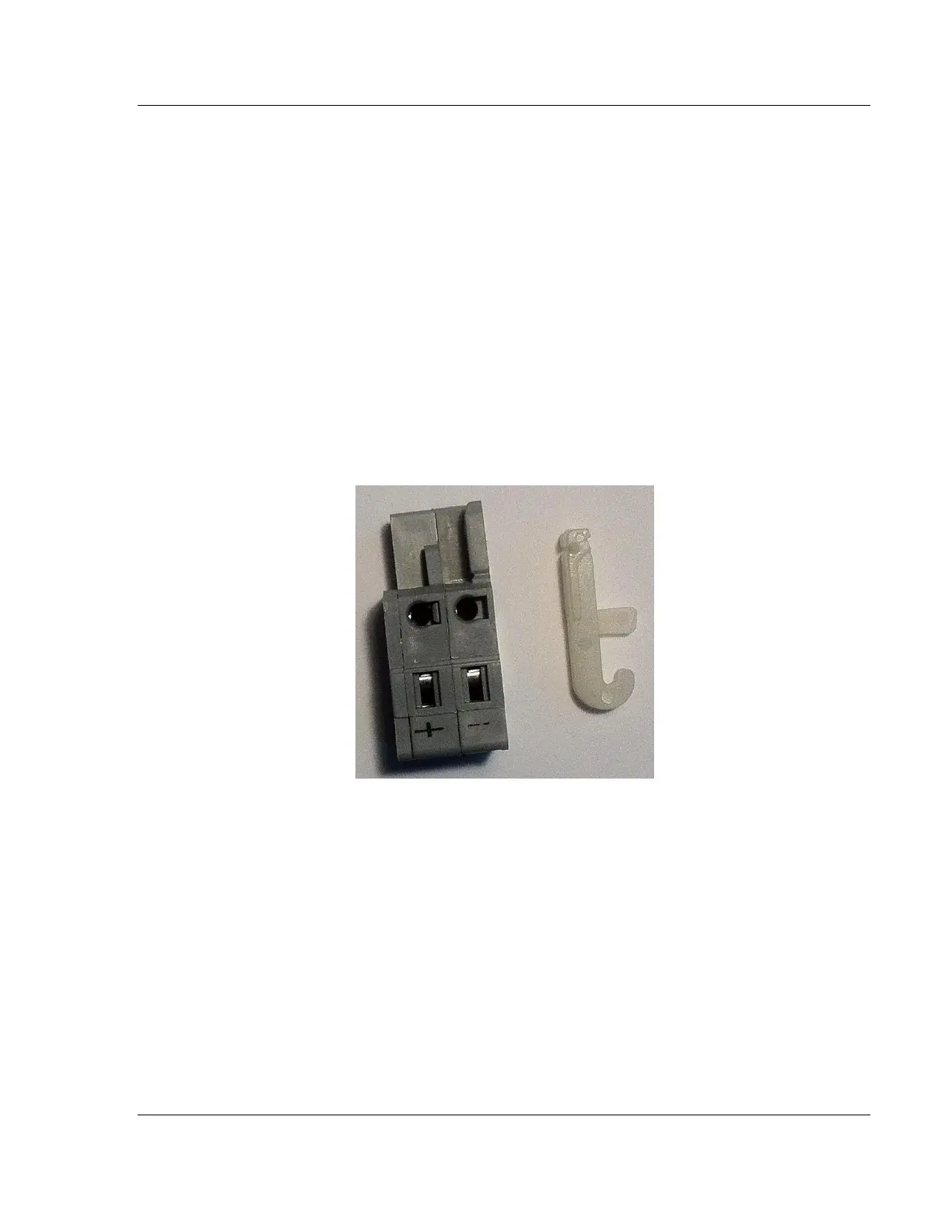

The Power Connector (ProSoft part number 002-0116) is shown on the left in the
photo above. Note the + and polarity markings. The wire installation tool
(ProSoft part number 357-0061) shown on the right is helpful for installing wires
into the spring-loaded contacts inside power connector.
