RLX2 Series ♦802.11a, b, g, n RLX2 Quick Setup
Industrial Hotspots User Manual
ProSoft Technology, Inc. Page 23 of 161
May 8, 2013

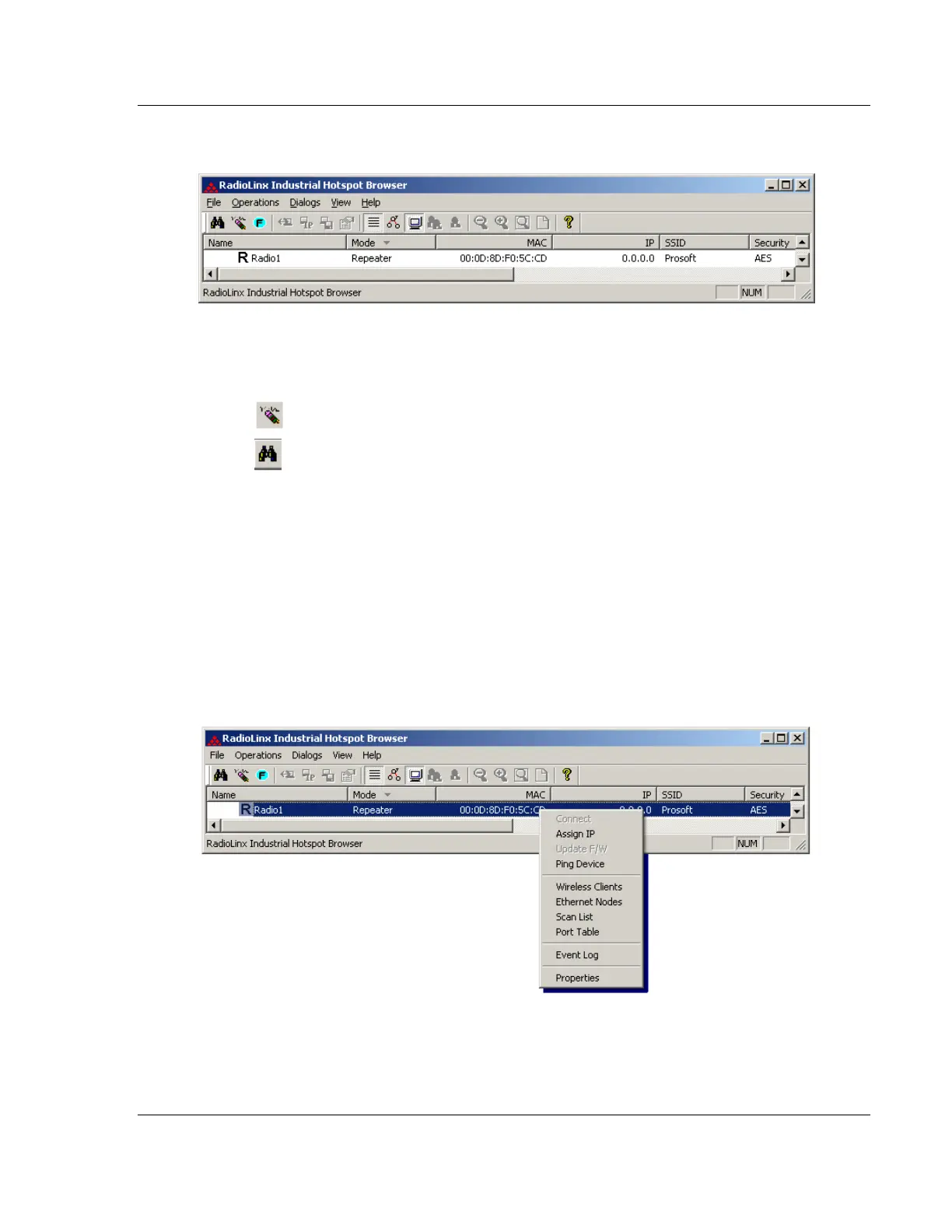

4. Run the IH Browser configuration software.
If the display is different than above, use the IH Browser toolbar controls to clear
and refresh the display:
The “erase”tool clears the display
The “search”tool rescans the network for RLX2 radios
If no radios appear in the list, see the section 5.6 on troubleshooting missing
radios.
5. In particular, note the line listing the MAC address of the RLX2 radio. If the radio
is on a network with a DHCP server, it will obtain an IP address via DHCP. If not,
the radio will appear with an IP address of 0.0.0.0 as shown above.
6. Assign it a valid IP address for the network. Do this by right-clicking on the
radio’srow in the IH Browser display and selecting Assign IP from the context
menu.
