Installing the Radios RLX2 Series ♦ 802.11a, b, g, n
User Manual Industrial Hotspot
Page 40 of 161 ProSoft Technology, Inc.
May 8, 2013
To see how a radio is linked in the network, make sure that the radio is
connected to a PC, and select Topology View from the View menu in the IH
Browser.

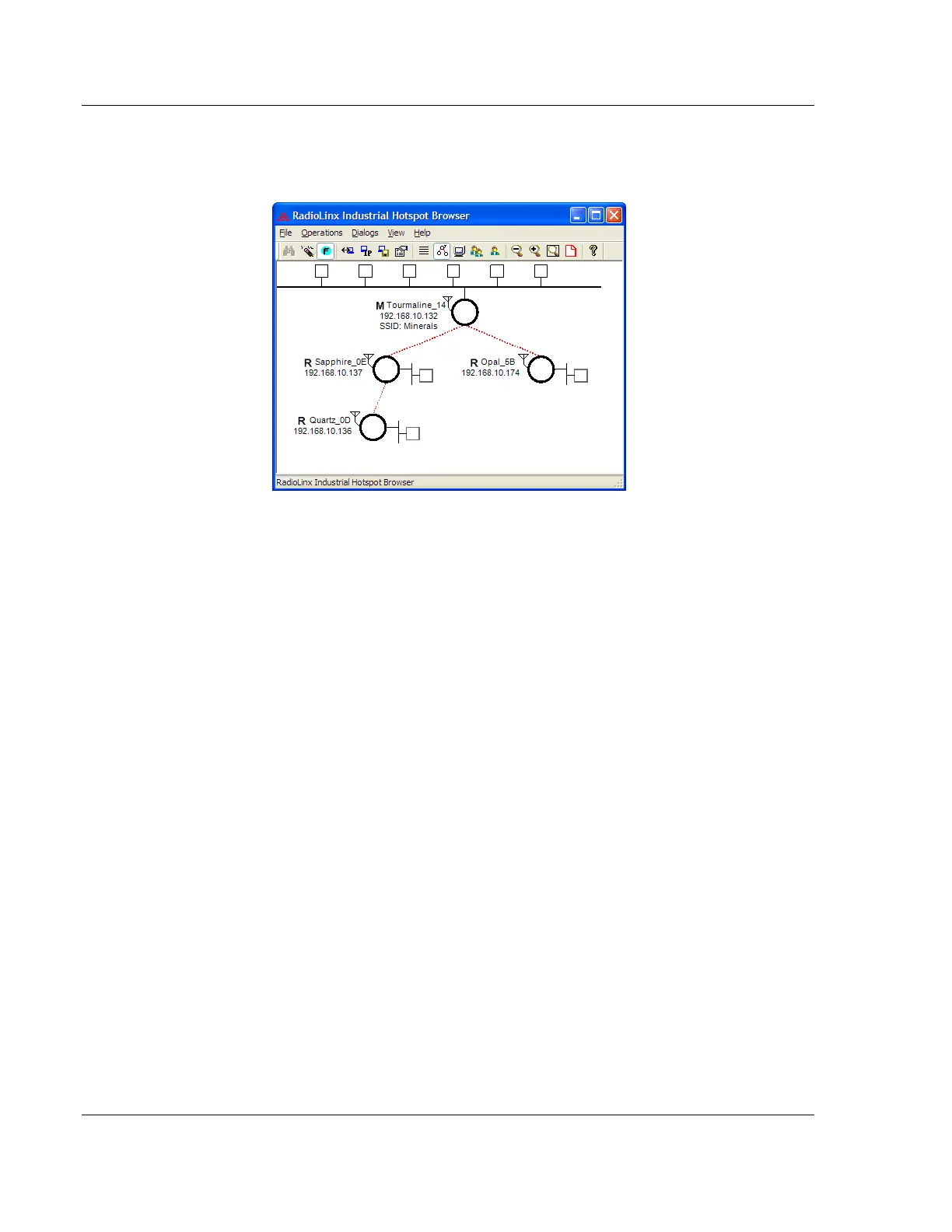

TheTopologyviewshowsadiagramofthenetwork’swirelessconnections.Use
this view to see whether all the radios are linked, and approve of the way the
radios are linked.
A radio that is not linked to a parent will show as a circle outlined by a flashing
dashed red line. It may be near the bottom of the window. Scroll down to view all
available radios. To change how radios link to the network, see Parent Link
settings (page 63).
Refer to Improve Signal Quality (page 49) for more information on overcoming
poor connectivity.
