MVI56-PDPMV1 ♦ ControlLogix Platform Configuring the MVI56-PDPMV1 Module
PROFIBUS DPV1 Master User Manual
Page 123 of 251 ProSoft Technology, Inc.
In SLAVE CFG LIST in the example above

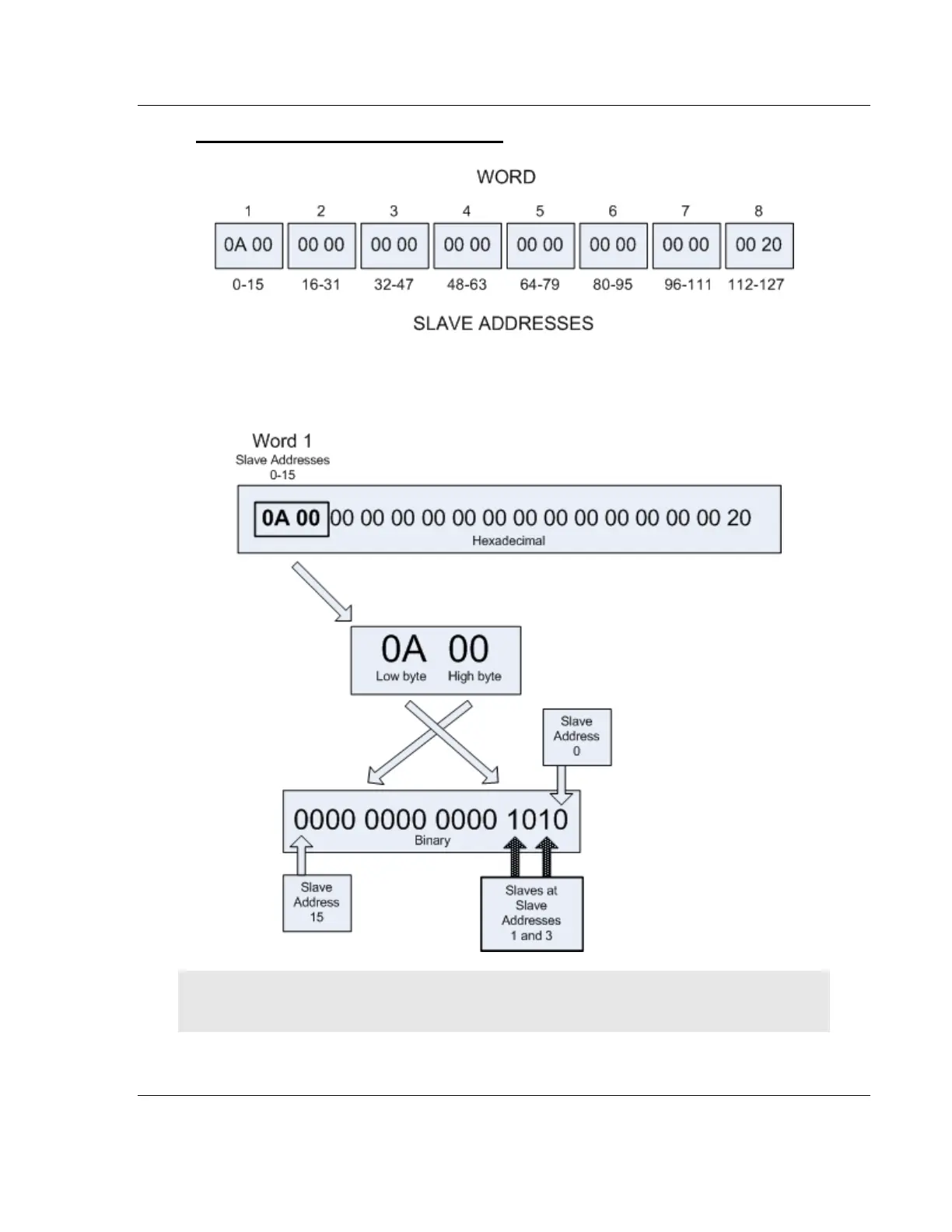

To find out which slave addresses in Word 1 are occupied by configured slaves,
expand Word 1's hexadecimal numbers into a bitmap.
Note: A zero (0) in the bitmap indicates an unoccupied slave address; one (1) indicates that the
slave address is occupied by a configured slave.
