MVI56-PDPMV1 ♦ ControlLogix Platform Mailbox Messaging
PROFIBUS DPV1 Master User Manual
Page 133 of 251 ProSoft Technology, Inc.

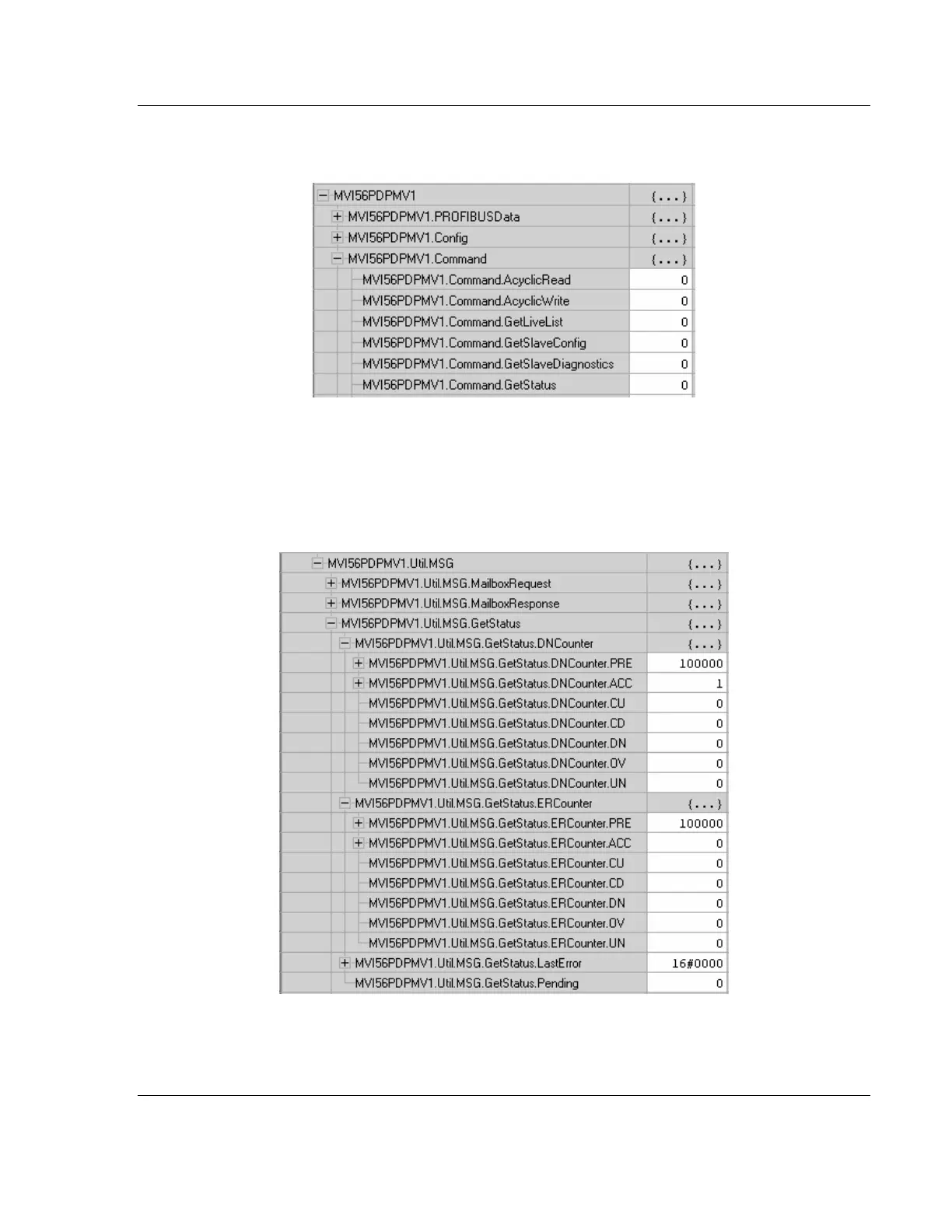

The bit is reset when the MSG instruction is enabled to request status data from
the module.
When the MSG execution is successfully completed, the controller tag
MVI56PDPMV1.Util.MSG.GetStatus.DNCounter.ACC will be incremented. If an
error occurs during message execution, then the controller tag
MVI56PDPMV1.Util.MSG.GetStatus.ERCounter.ACC will be incremented. The
error code will be stored in the controller tag
MVI56PDPMV1.Util.MSG.GetStatus.LastError.
