Mailbox Messaging MVI56-PDPMV1 ♦ ControlLogix Platform
User Manual PROFIBUS DPV1 Master
Page 134 of 251 ProSoft Technology, Inc.

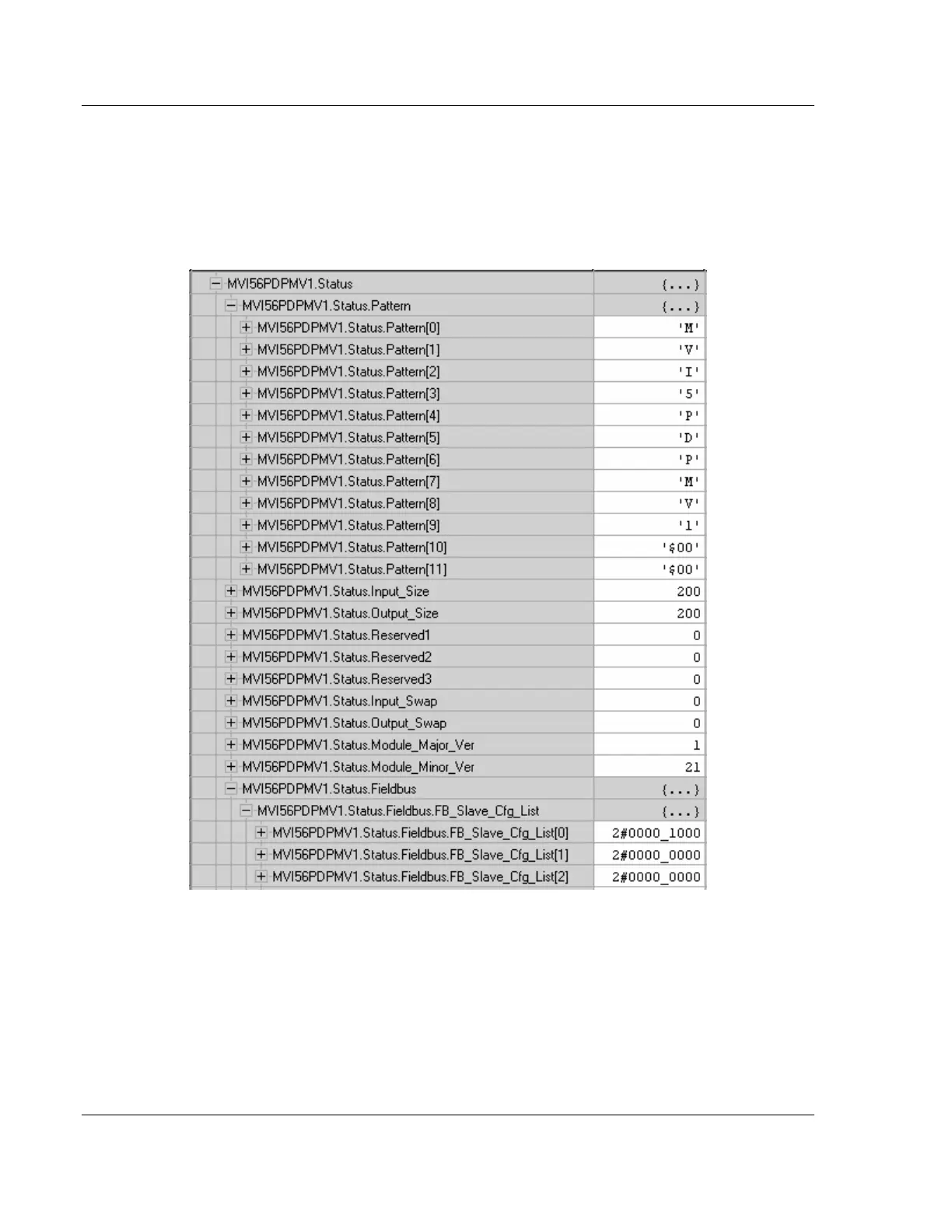

The status data retrieved from the module is stored in the MVI56PDPMV1.Status
controller tag structure. It includes:
General module information
Backplane communication status
PROFIBUS slaves status (configured, exchanging data, reporting
diagnostics)
