Mailbox Messaging MVI56-PDPMV1 ♦ ControlLogix Platform
User Manual PROFIBUS DPV1 Master
Page 138 of 251 ProSoft Technology, Inc.

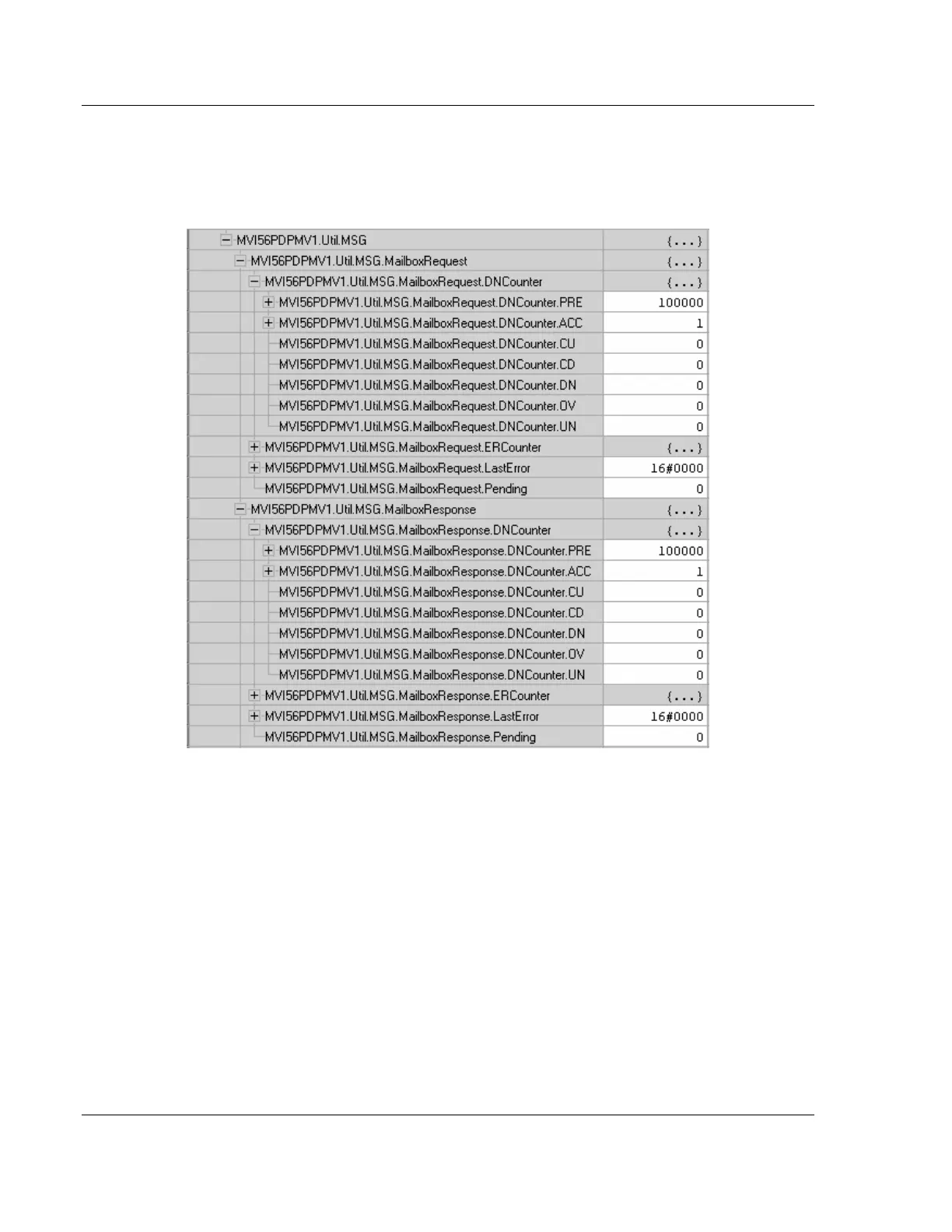

When the mailbox is successfully executed, the counter ACC values will be
incremented:
MVI56PDPMV1.Util.MSG.MailboxRequest.DNCounter.ACC (Request)
MVI56PDPMV1.Util.MSG.MailboxResponse.DNCounter.ACC (Response)
When the mailbox execution was successfully performed, the mailbox response
will be stored in the controller tag structure
MVI56PDPMV1.Mailbox.GetSlaveConfig.In, which includes:
MVI56PDPMV1.Mailbox.GetSlaveConfig.In.ByteCount: number of identifier
bytes returned
MVI56PDPMV1.Mailbox.GetSlaveConfig.In.SlaveAddress: slave address
MVI56PDPMV1.Mailbox.GetSlaveConfig.In.ReturnCode: 0 if successful
MVI56PDPMV1.Mailbox.GetSlaveConfig.In.FaultInformation: 0 if successful
