MVI56-PDPMV1 ♦ ControlLogix Platform Mailbox Messaging

PROFIBUS DPV1 Master User Manual

Page 139 of 251 ProSoft Technology, Inc.

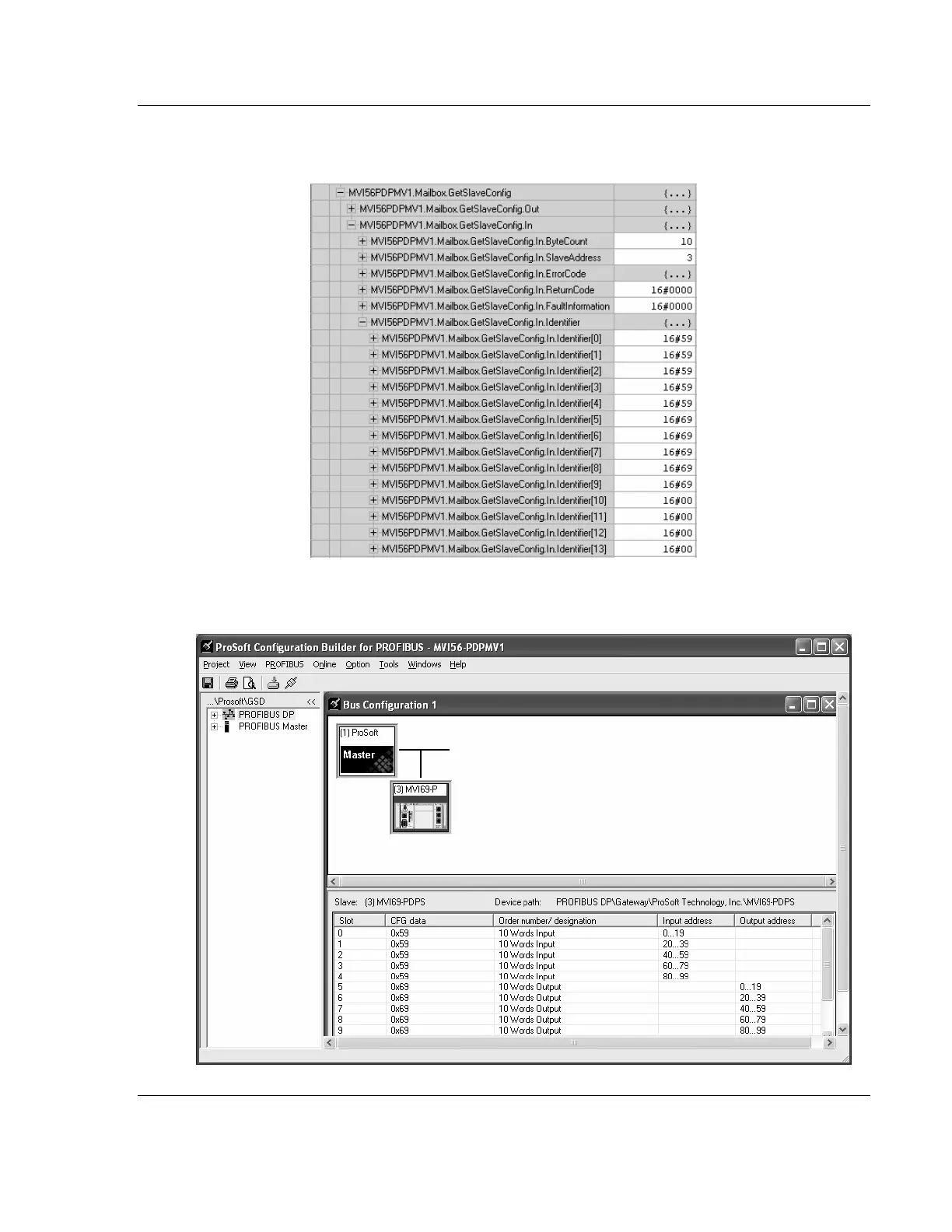

 MVI56PDPMV1.Mailbox.GetSlaveConfig.In.Identifier[ ]: configuration

identifier bytes

The identifier bytes will match the byte sequence displayed through PCB for

PROFIBUS (CFG data column):
