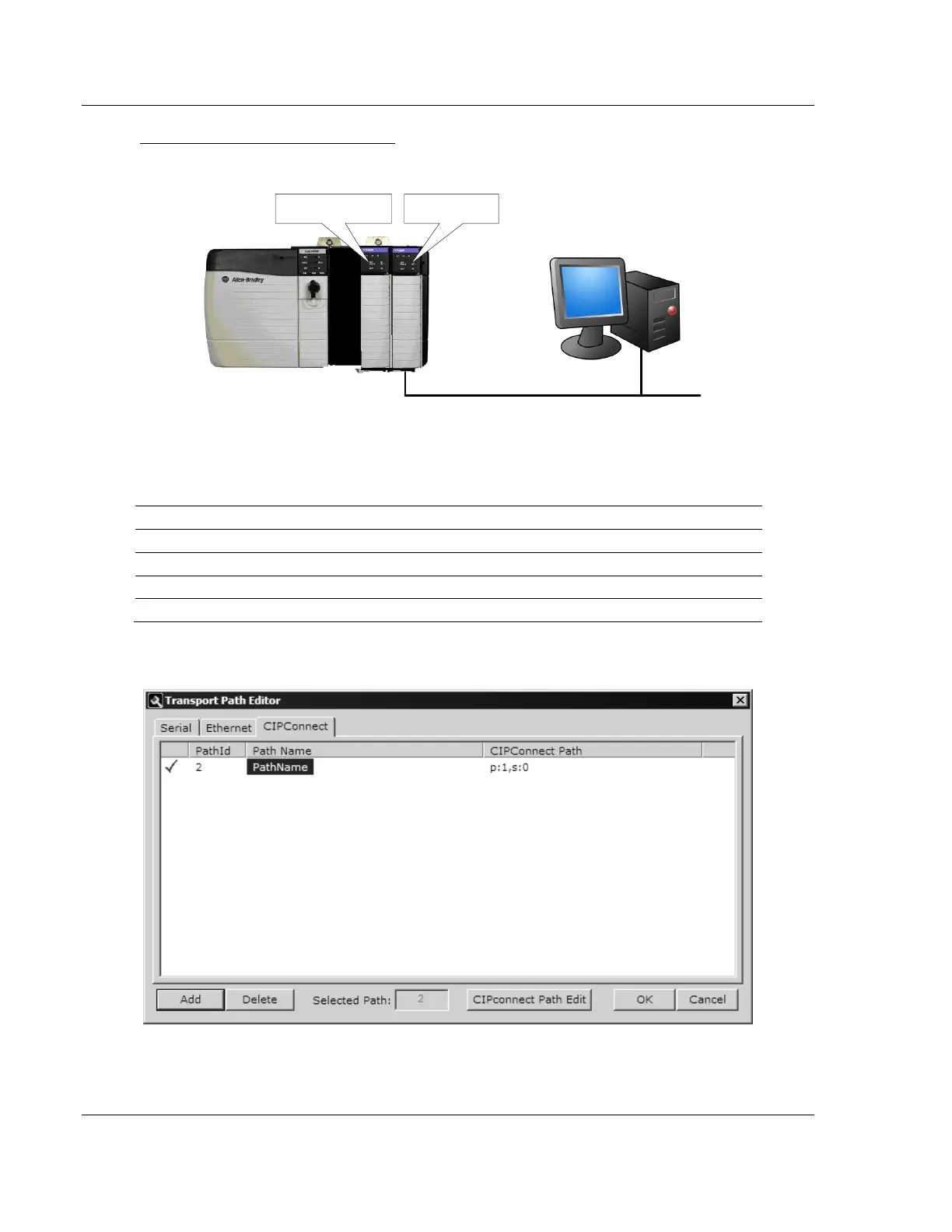

Using the CIPconnect Path Editor
Example
Ethernet
Rack 1
MVI56-PDPMV1
1756-ENBT
Rack 1
Slot
Module
Network Address
0
ControlLogix Processor
-
1
Any
-
2
MVI56-PDPMV1
-
3
1756-ENBT
IP=105.102.0.12
1 In the Transport Path Editor, click ADD, then click CIPCONNECT PATH EDIT.
