MVI56-PDPMV1 ♦ ControlLogix Platform Start Here
PROFIBUS DPV1 Master User Manual
Page 29 of 251 ProSoft Technology, Inc.

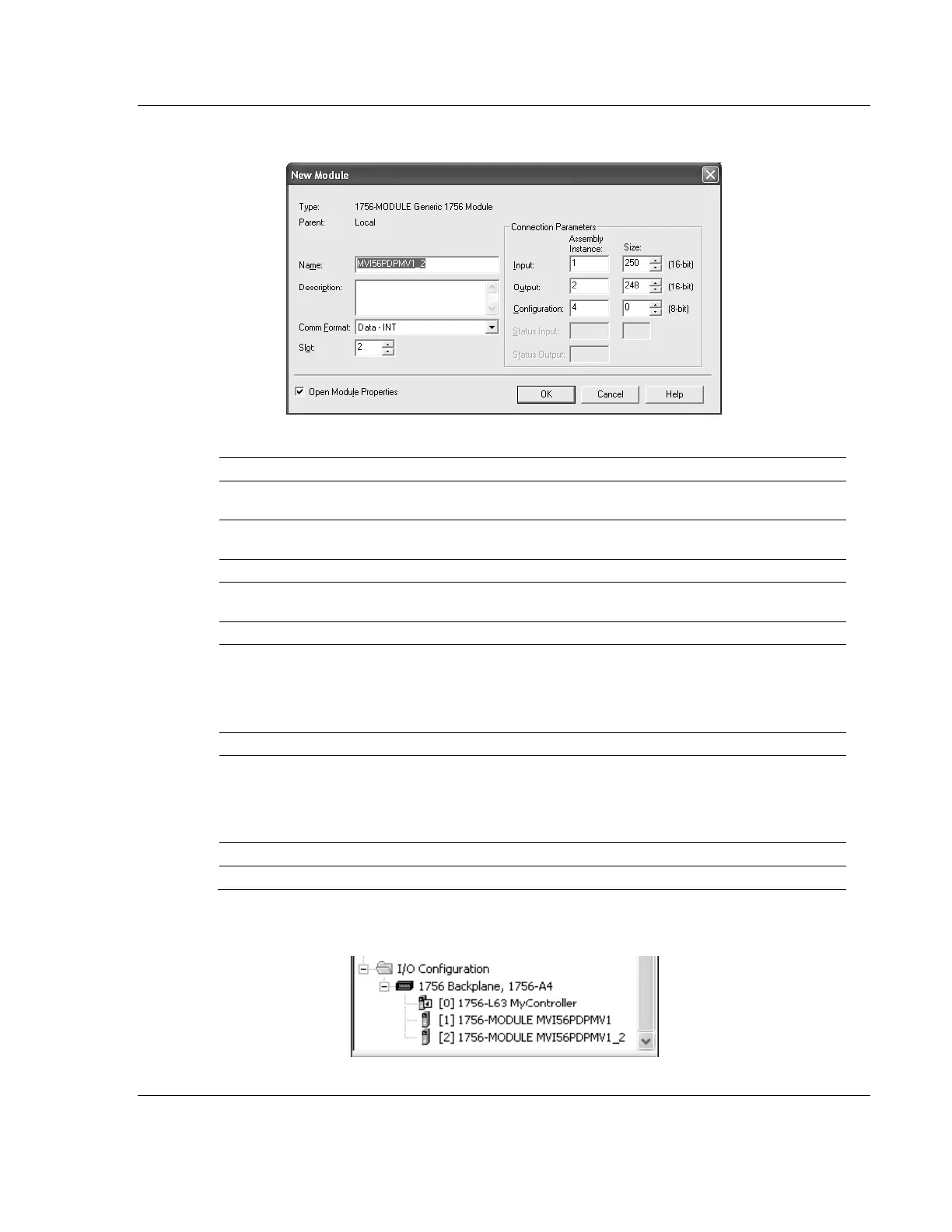

3 Fill the module properties as follows:
Parameter
Value
Name
Enter a module identification string. Example:
MVI56PDPMV1_2
Description
Enter a description for the module. Example: ProSoft
communication module for PROFIBUS communication.
Comm Format
Select DATA-INT
Slot
Enter the slot number in the rack where the MVI56-PDPMV1
module is located.
Input Assembly Instance
1
Input Size
Enter the number of words per backplane input block to copy
from the module to the processor. The allowable range is from
12 to 250 words. Each input block will reserve 8 words for
general purposes (CRC, block/CIP handshaking). The
remainder is reserved for PROFIBUS input data.
Output Assembly Instance
2
Output Size
Enter the number of words per backplane output block to copy
from the module to the processor. The allowable range is from
5 to 248 words. Each output block will reserve 5 words for
general purposes (CRC and block handshaking). The
remainder is reserved for PROFIBUS output data.
Configuration Assembly Instance
4
Configuration Size
0
4 Click OK to confirm. The new module is now visible:
