MVI56-PDPMV1 ♦ ControlLogix Platform Start Here
PROFIBUS DPV1 Master User Manual
Page 41 of 251 ProSoft Technology, Inc.

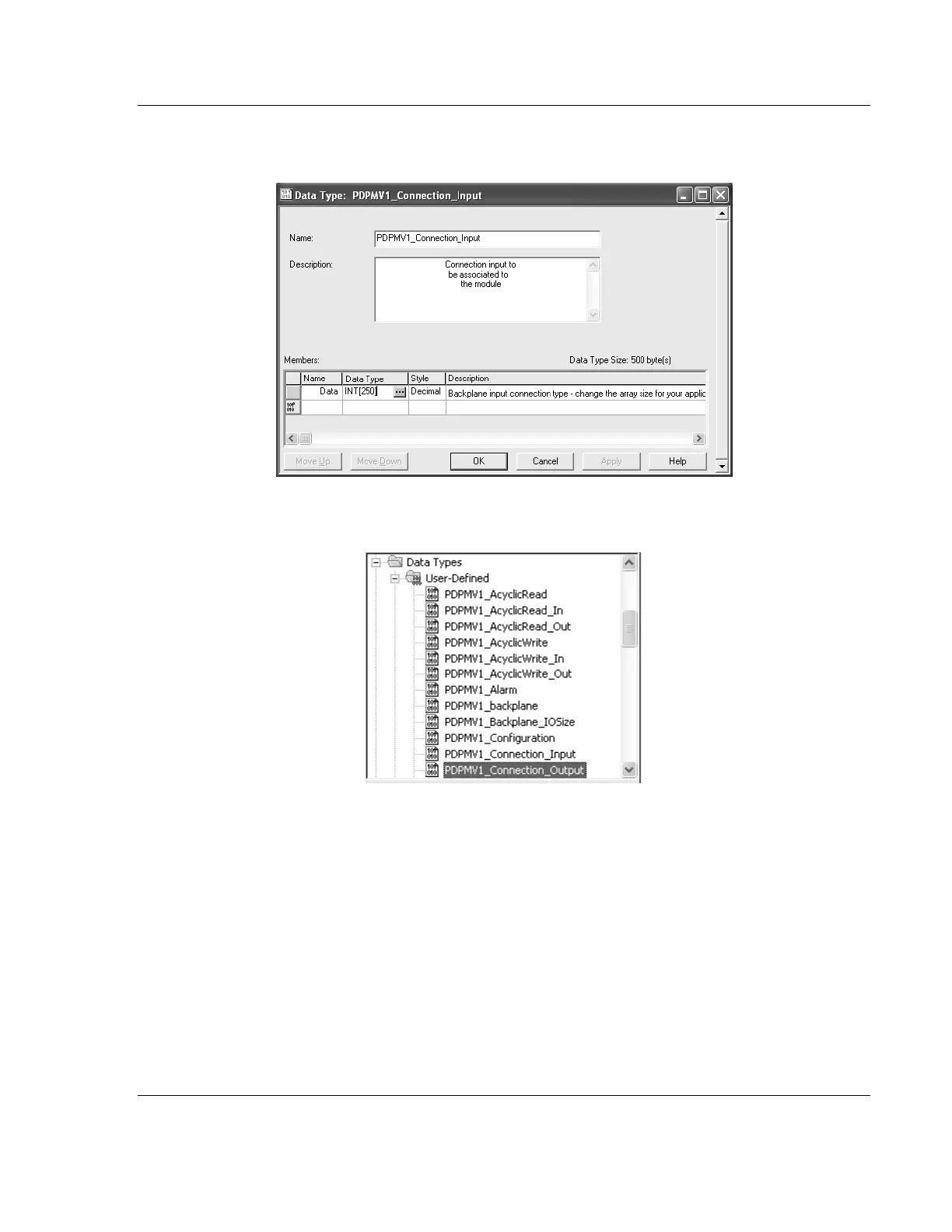

3 Adjust the array size for your application. The default array size is INT[250]
(maximum size). This example is for 250 input words.
4 In the DATA TYPES/USER-DEFINED folder, double-click
PDPMV1_CONNECTION_OUTPUT data type.
