MVI56-PDPMV1 ♦ ControlLogix Platform Start Here

PROFIBUS DPV1 Master User Manual

Page 59 of 251 ProSoft Technology, Inc.

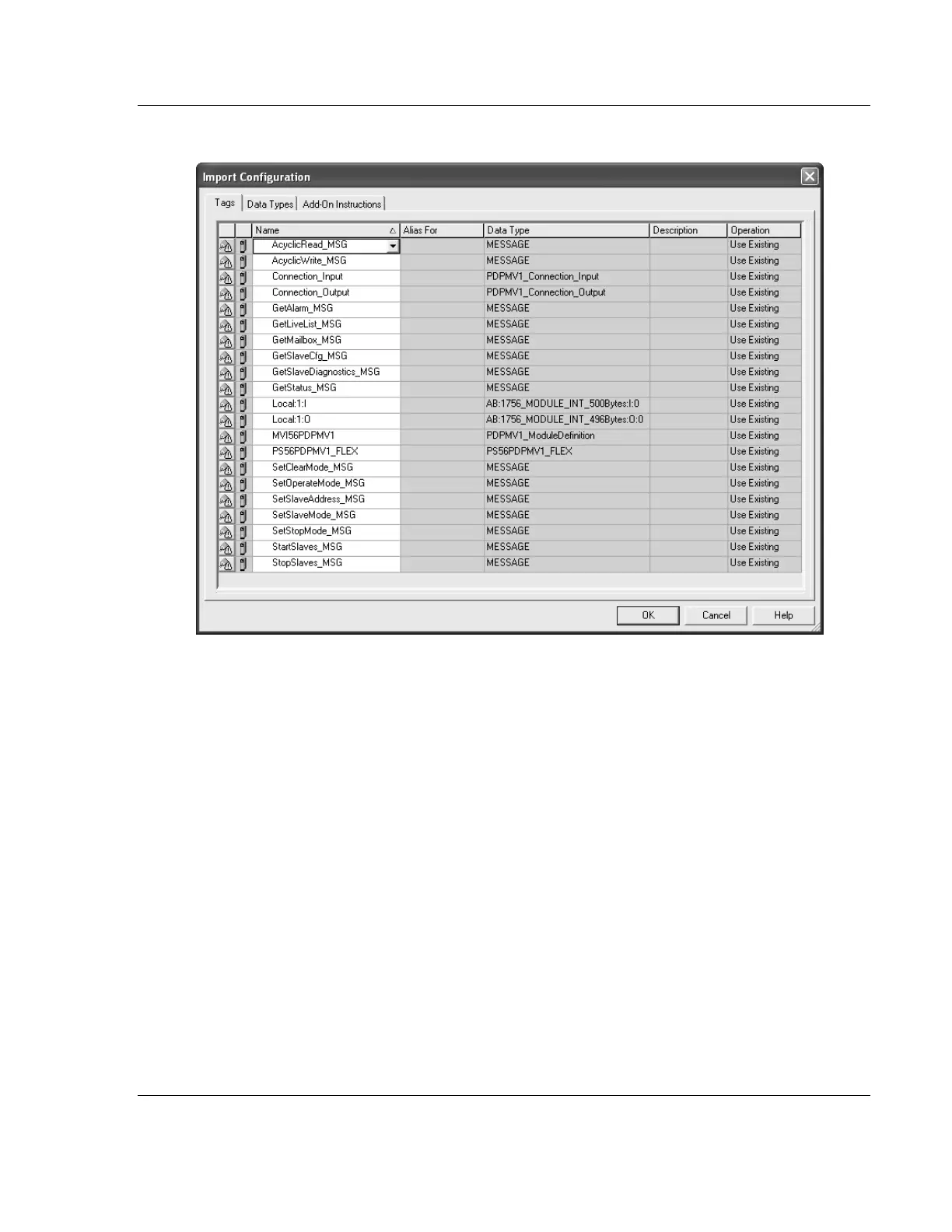

10 The following window will be displayed showing the tags to be imported:
