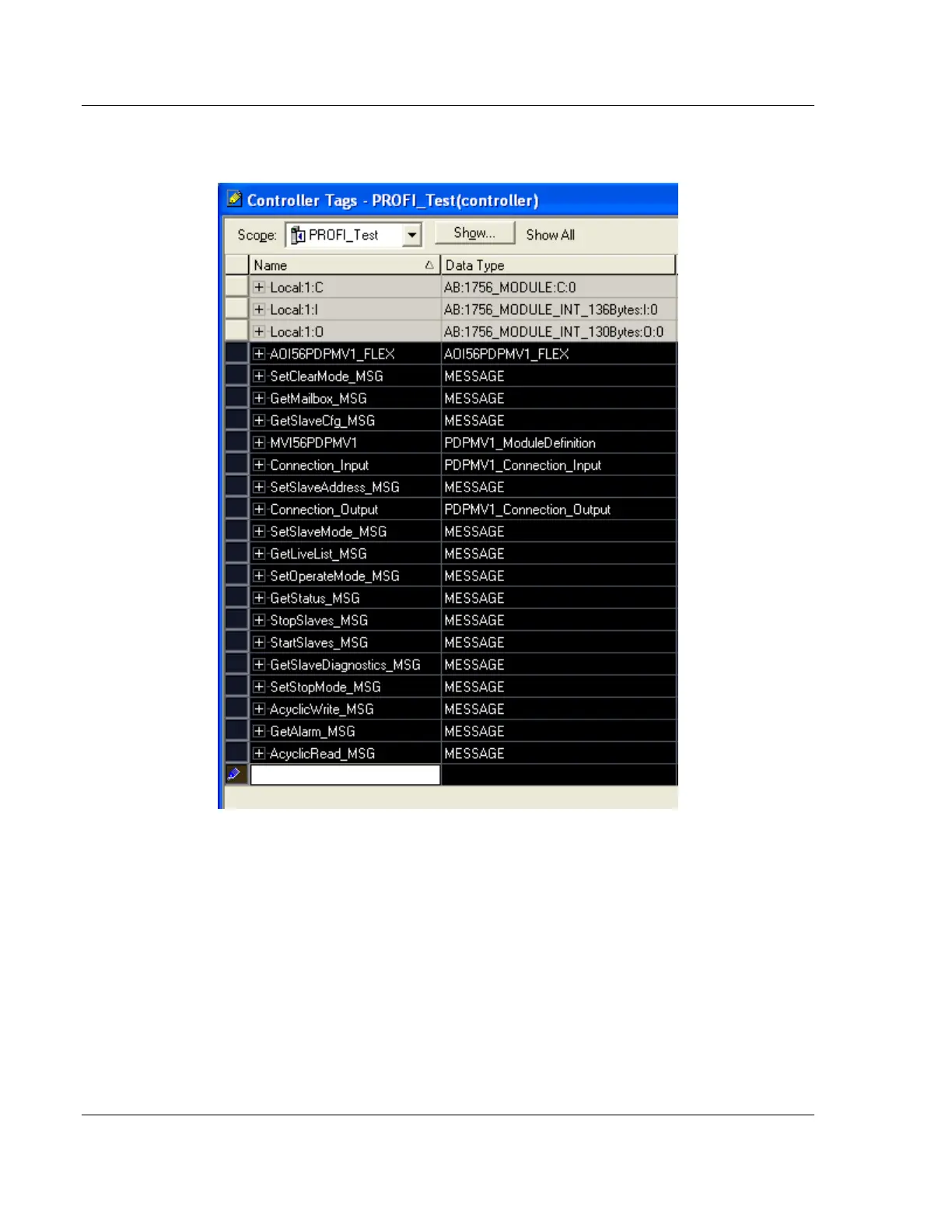

2 Go to the Controller Tags window and select the EDIT TAGS tab. DELETE all

the controller tags associated with the AOI import.
