Set_Param (SAP61)
ProSoft PROFIBUS slave (PDPS) devices have a configurable parameter for

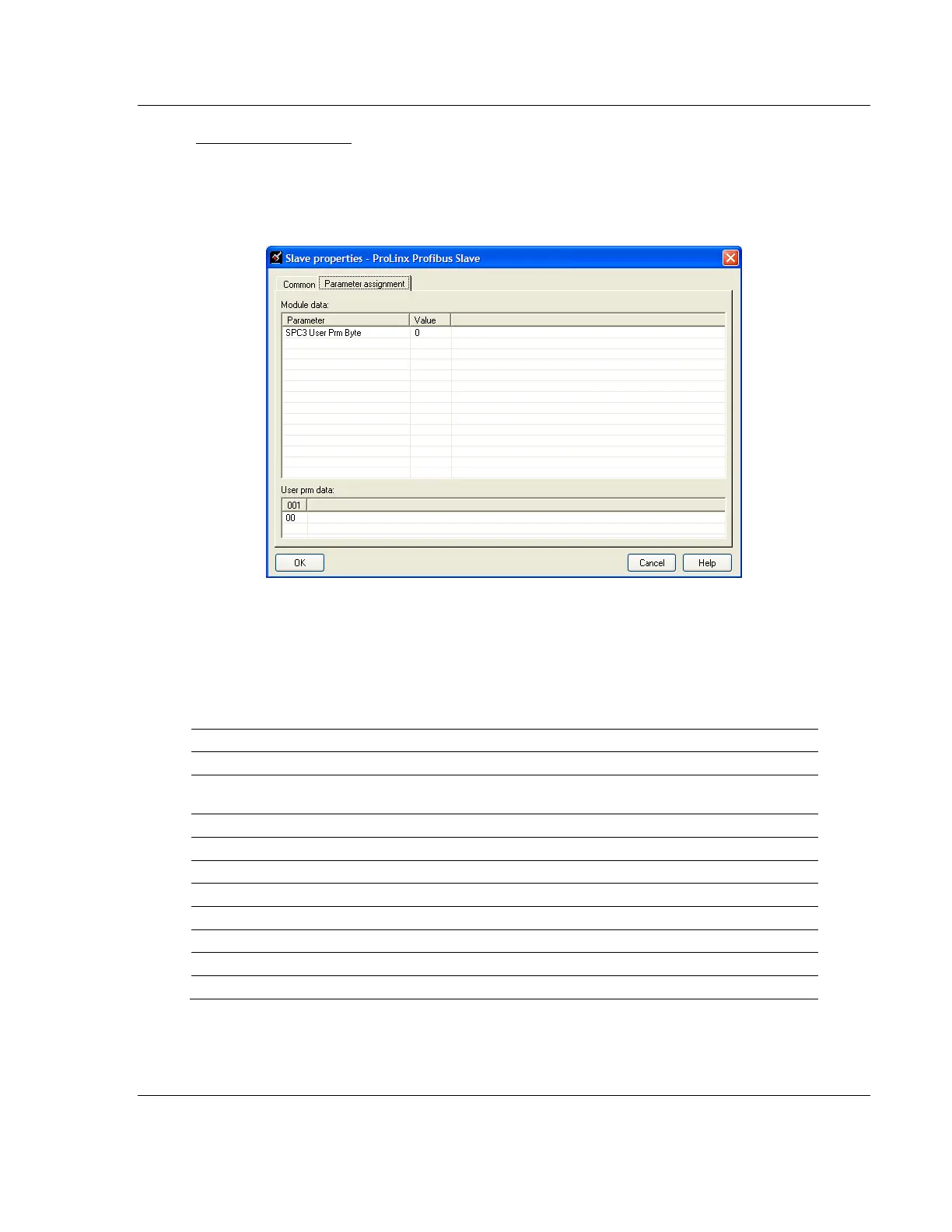

SPC3 User Prm Byte. The following illustration shows the value of this parameter
in ProSoft Configuration Builder for PROFIBUS, the configuration tool for ProSoft
PROFIBUS Master devices.
Parameter Data Structure
SPC3 evaluates the first seven data bytes (without user prm data), or the first
eight data bytes (with user prm data). The first seven bytes are specified
according to the standard. The eighth byte is used for SPC3-specific
communications. The additional bytes are available to the application.
