9.5 EXAMPLES OF INPUT CONNECTION:

Digital inputs are divided in two groups; each group shares a common

independent cable. The first group includes inputs I1 through I4 and in the

second one inputs from I5 to I8.

9.5.1 INPUT WITH A NEGATIVE COMMON:

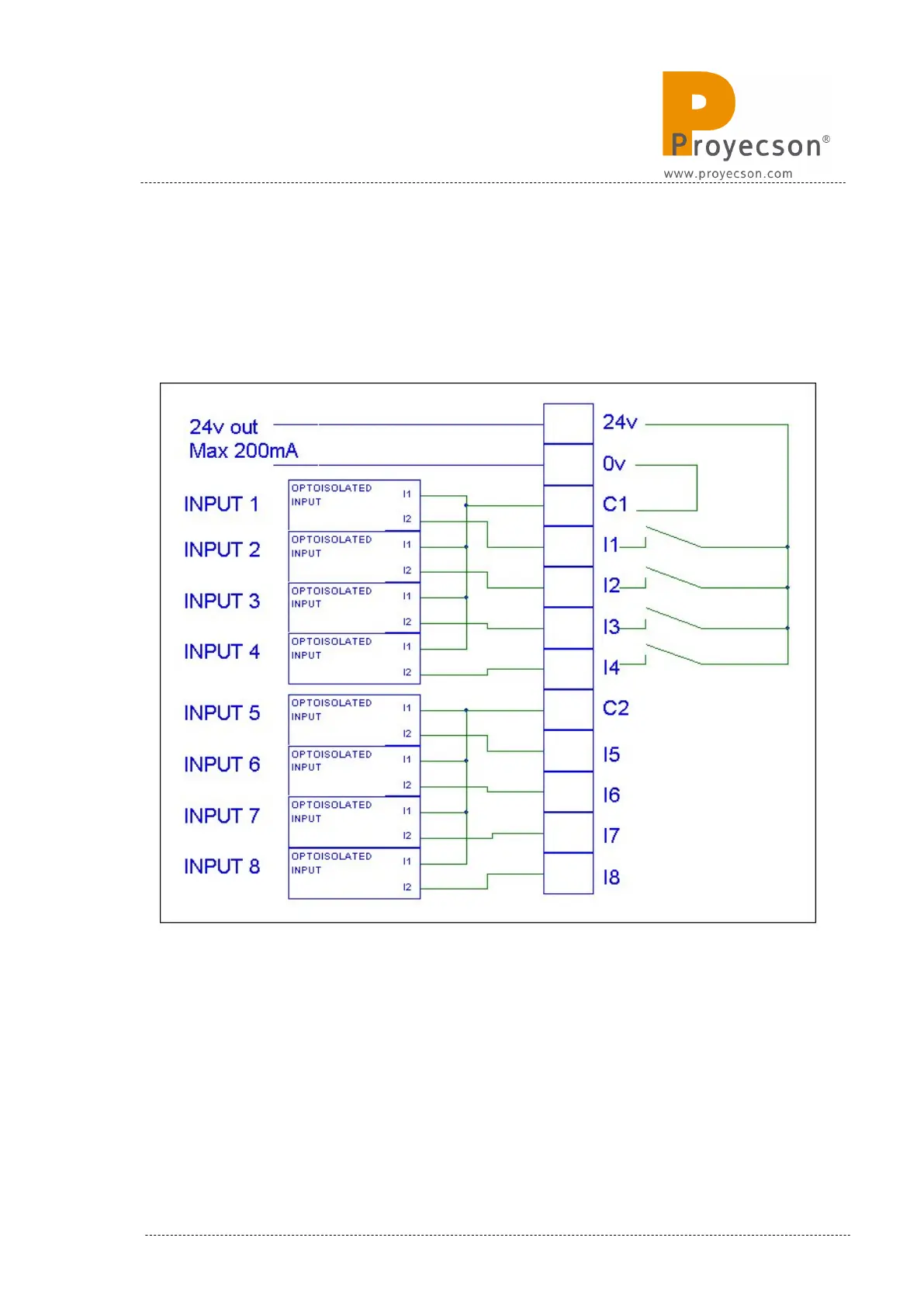

Figure 9.5.1A

INSTALLATION MANUAL: PAA20+ V 2.0 (10/2021) 113
