6.8 CONNECTION TO BARCO ALCHEMY (ICMP) OVER ETHERNET
The connection of the PAA20+ to a Barco Alchemy (ICMP) server can be done
through the Ethernet port. The physical Ethernet port used for the Alchemy
to communicate with the automation devices is the same used for the
projector control.
The PAA20+ must be added to Barco Alchemy (ICMP) server as a new device
and output/input commands configured as explained throughout this manual.

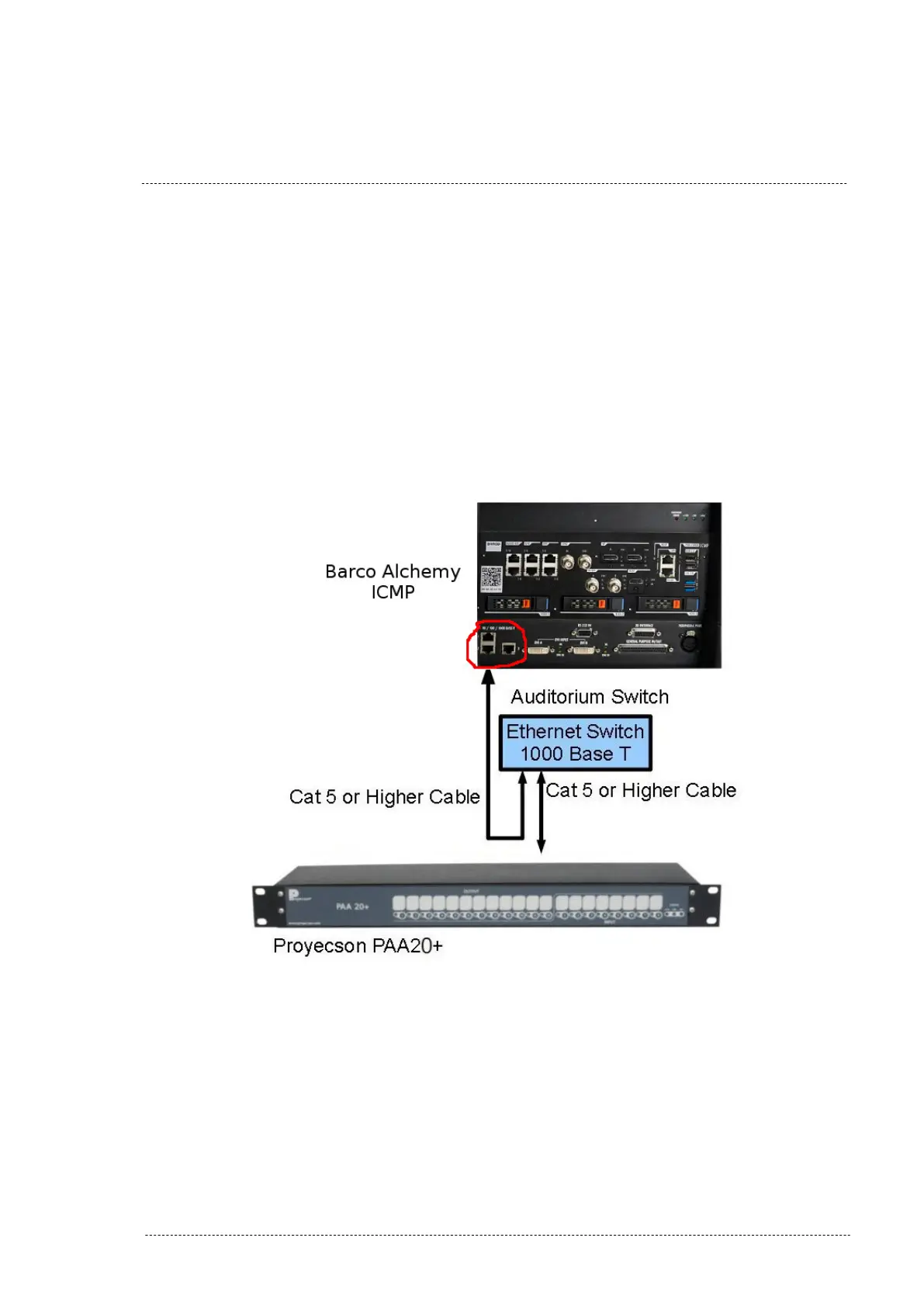

See the interconnection diagram on the following picture:
Figure 6.8A
INSTALLATION MANUAL: PAA20+ V 2.0 (10/2021) 20
