6.3 CONNECTION TO DOREMI DCP SERVERS USING SERIAL PORT
Only DCP200, DCP2K4 and ShouVault Doremi servers with 2.0.5.0 or higher
software version could be connected to PAA20+ using the serial port.
It is not possible to connect the IMS1000 server with the PAA20+ using the
serial port.
You need to add the PAA20+ as a serial device as explained throughout this

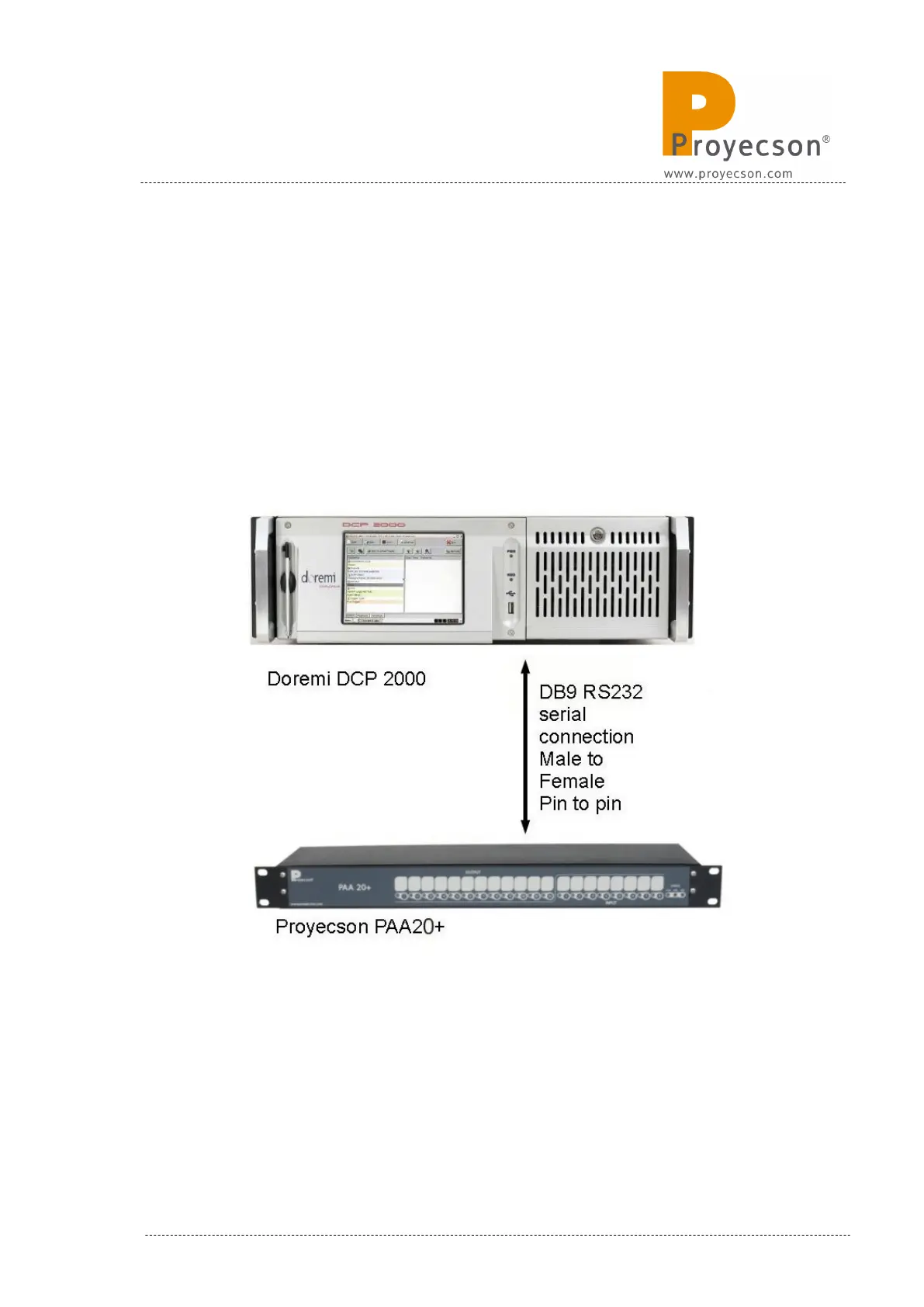

manual. The connection diagram is in the Figure 6.3A:
Figure 6.3A
INSTALLATION MANUAL: PAA20+ V 2.0 (10/2021) 15
