6.7 CONNECTION TO DATASAT DC20 SERVER USING SERIAL PORT
The connection of the PAA20+ to a Datasat DC20 server can be done using
the serial port.
The PAA20+ must be added to the Datasat server as a new device and
output/input commands configured as explained throughout this manual.

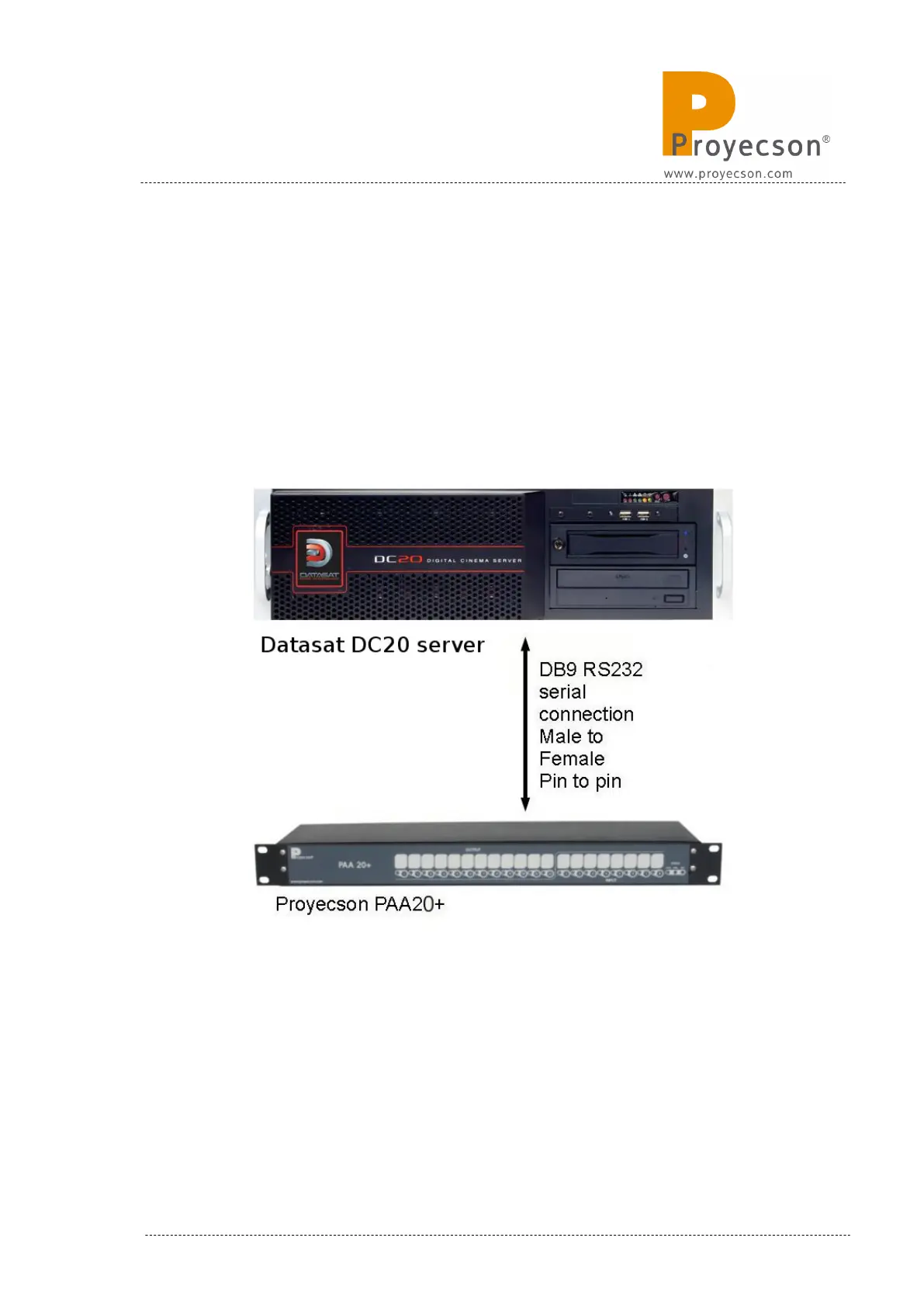

See the interconnection diagram on the following picture:
Figure 6.7A
INSTALLATION MANUAL: PAA20+ V 2.0 (10/2021) 19
