5. REAR PANEL

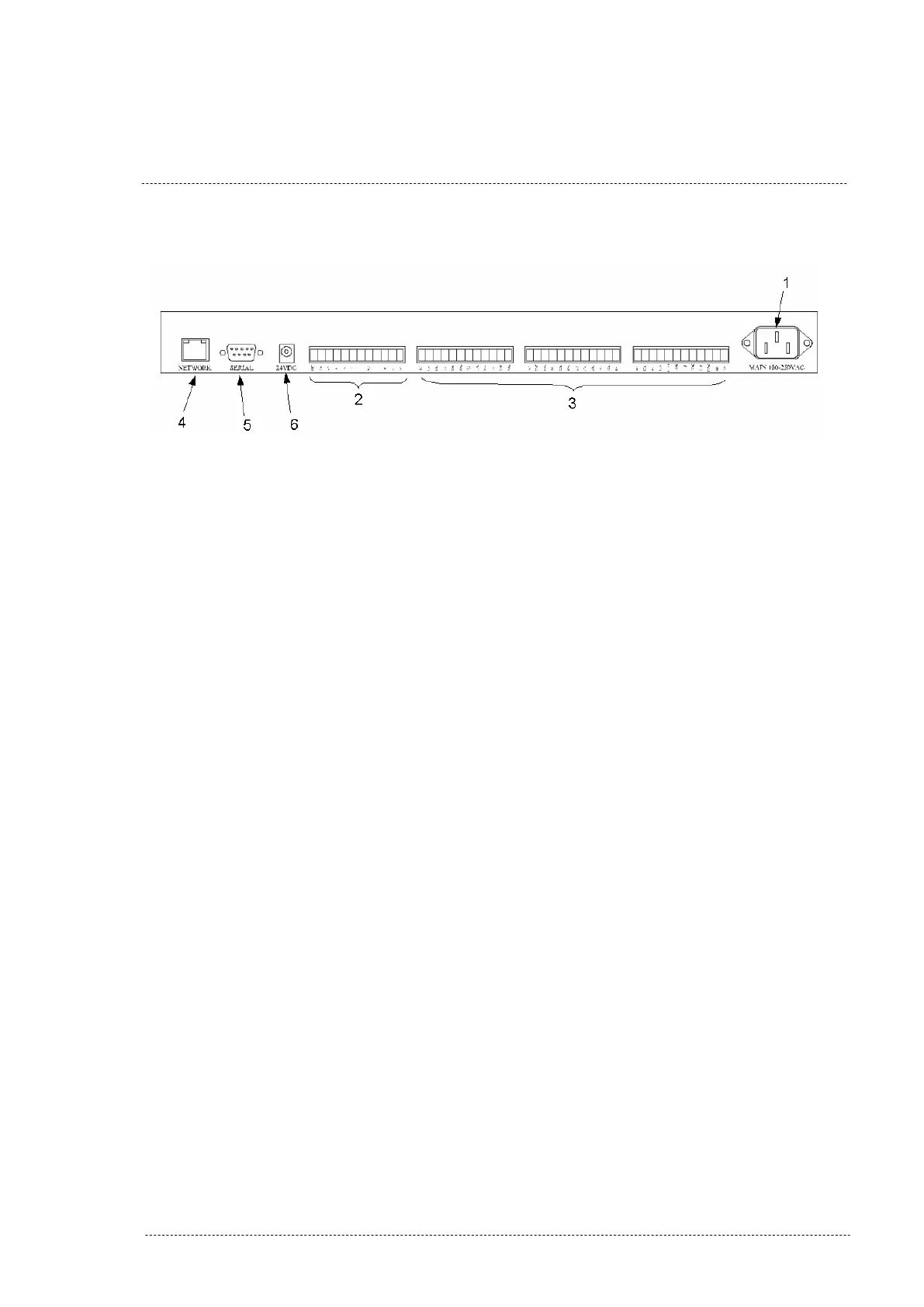

Figure 5.A

1. Main power supply input 100 - 230 VAC.

2. Inputs connector.

3. Outputs connectors.

4. RJ45 network connection port with connection and activity leds indic-

ator.

5. 9 pin female D-connector serial port.

6. 24VDC auxiliary power supply input.

INSTALLATION MANUAL: PAA20+ V 2.0 (10/2021) 12
